1/3 Hull Side Paint
Speckled Painted Bow & Gunnels
Speckled Painted Interior Sidewalls
Raised Domed Logos
Flat Vinyl Model Designators

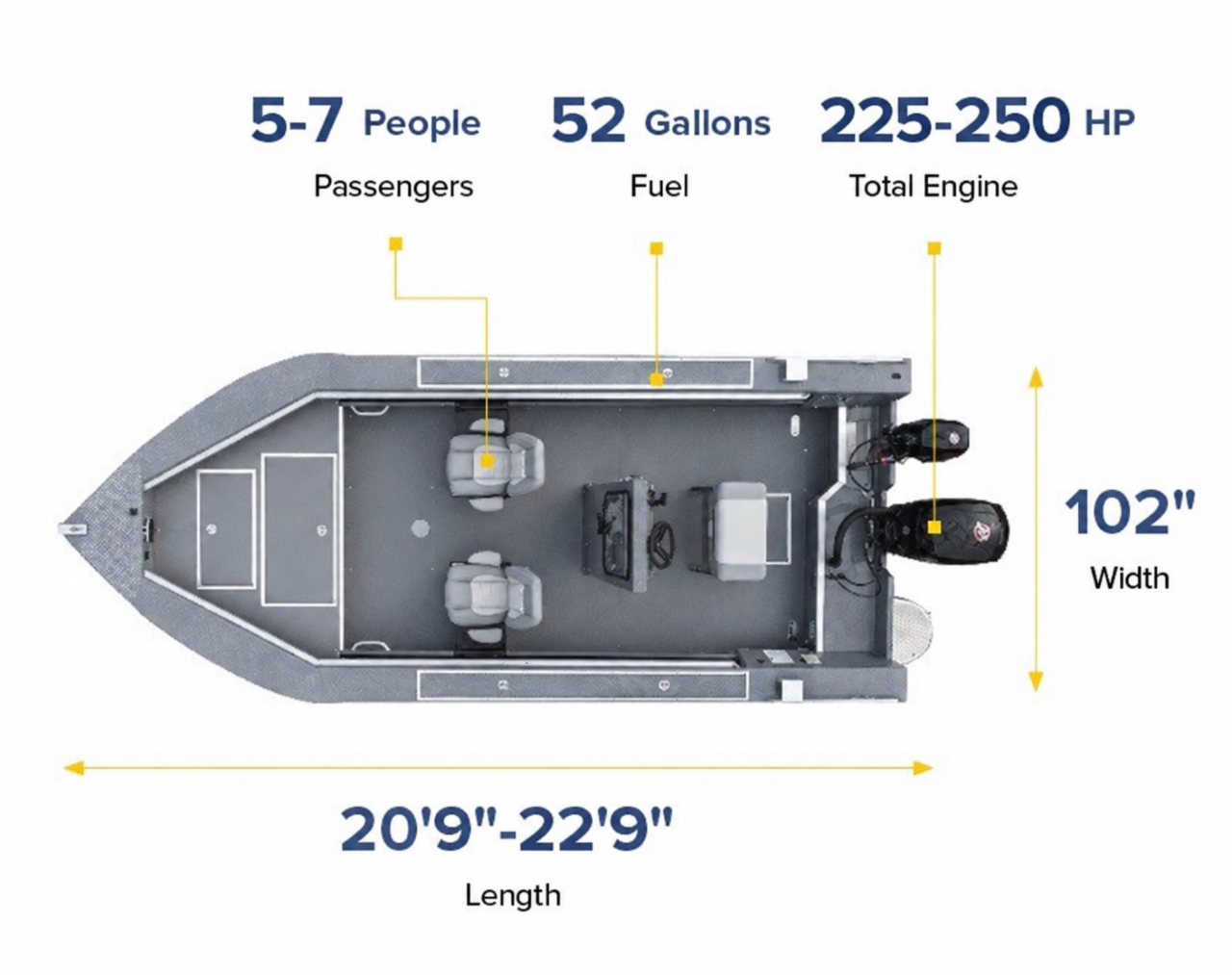

Base Boat Specifications
| Length | 20'9'' - 22'9'' |
|---|---|
| L.O.A | 20'9'' - 22'9'' |
| Beam Width | 102'' |
| Side Height | 31'' |
| Cockpit Depth | 26'' |
| Chine Width | 78'' |
| Minimum/Maximum HP | 115/250 |
| Max Persons Capacity | 5-7 |
| Fuel Capacity | 52 USG |
| Motor Length | 25'' |
| Hull Deadrise | 14° Delta V |
Standard Color & Graphics
1/3 Hull Side Paint
Speckled Painted Bow & Gunnels
Speckled Painted Interior Sidewalls
Raised Domed Logos
Flat Vinyl Model Designators
Standard Hull Features
One Piece Hull Sides/ One Piece Bottom
Full Height Transom
Formed In Reverse Chine
Full Length Engineered J - Stringers
Fully Welded Heavy Duty Keel Guard
Performance Lifting Strakes
(2) Full Length Formed In External Hull Stiffeners
8" Wide Formed Gunnels

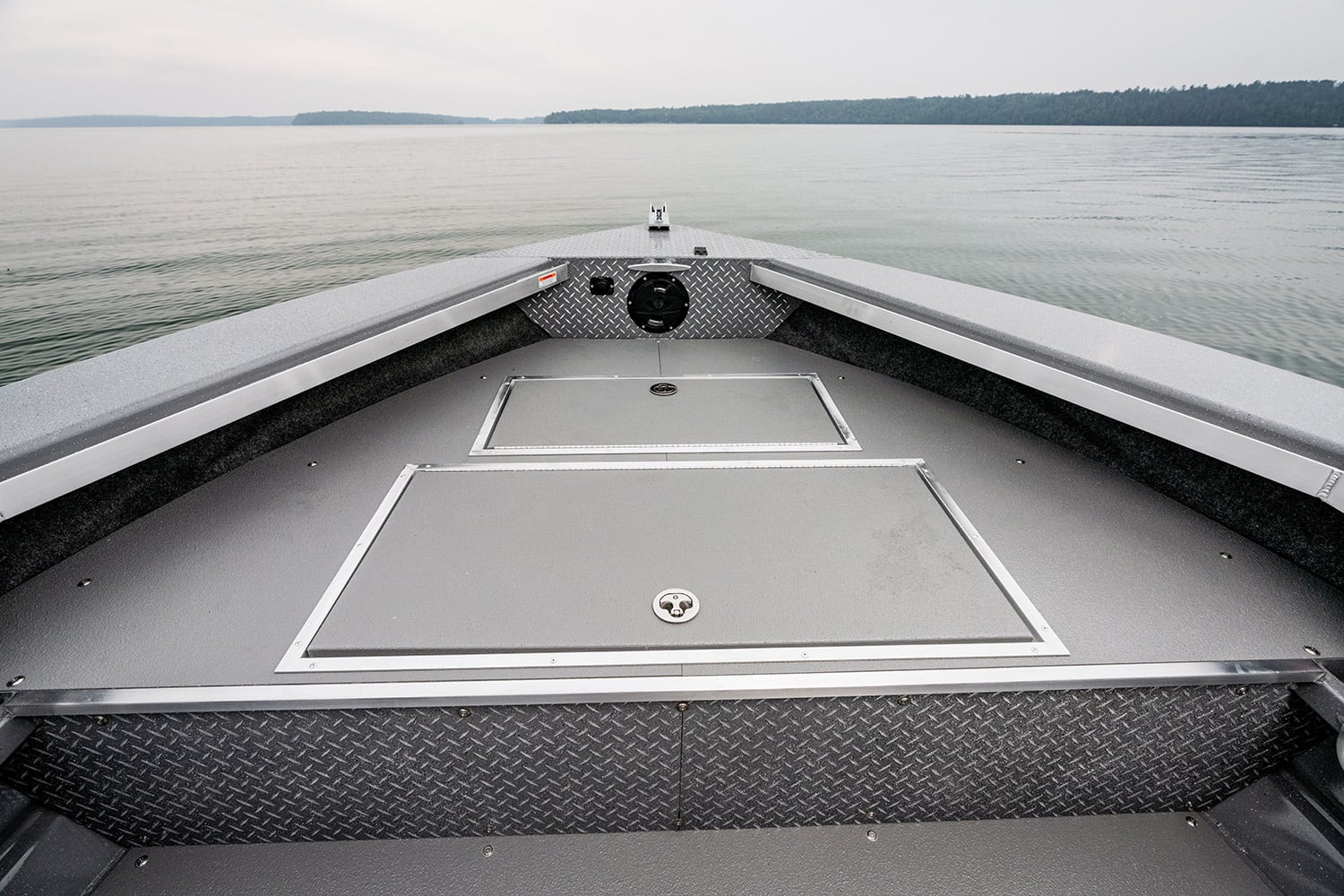

Recessed Level Anti-Skid Bow Deck
Welded heavy duty bow and transom eyes
Welded thru hull fittings

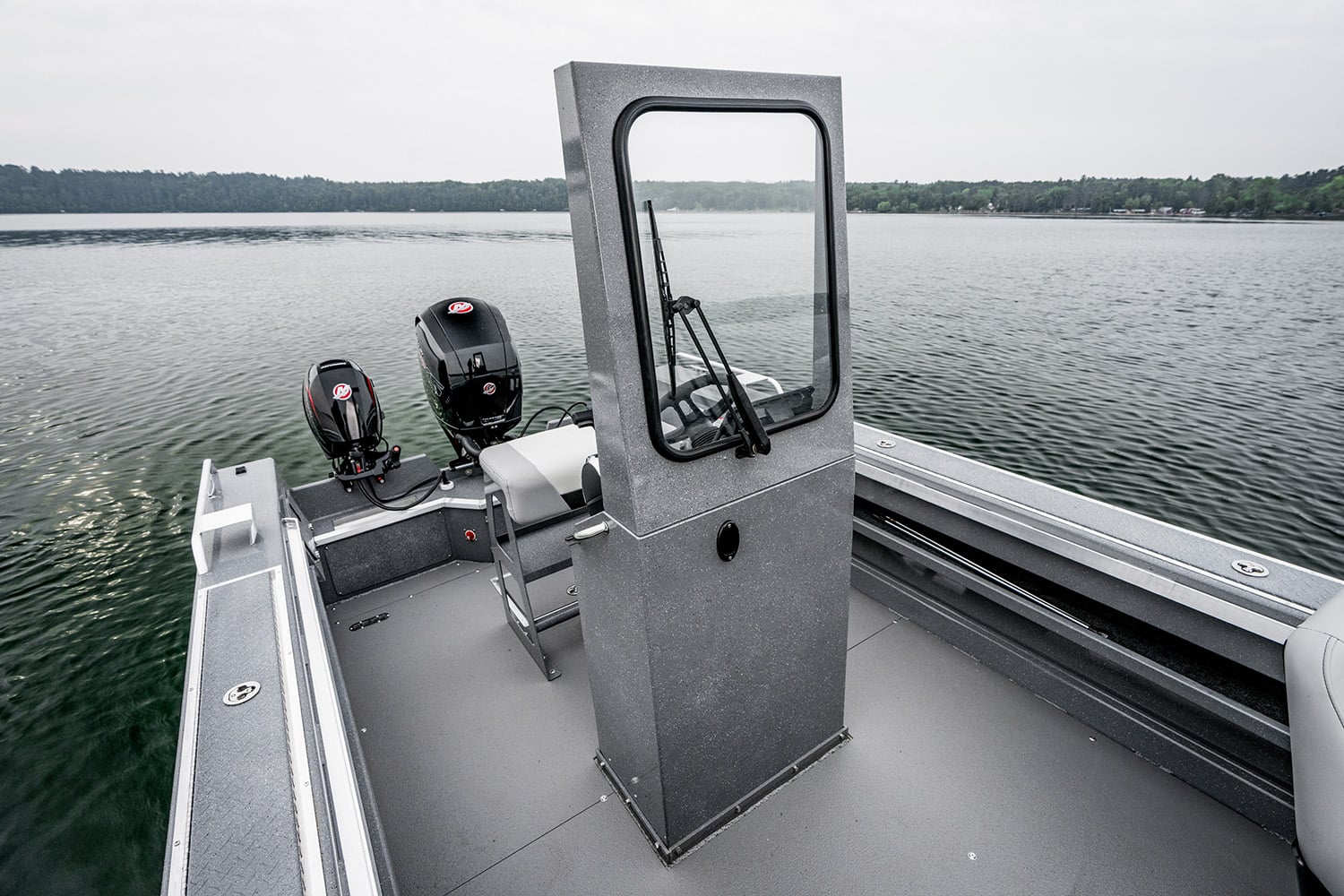

Center Console w/ windshield
(4) Welded cleats under Gunwales
Welded cleat in recessed bow
2 full length welded storage trays

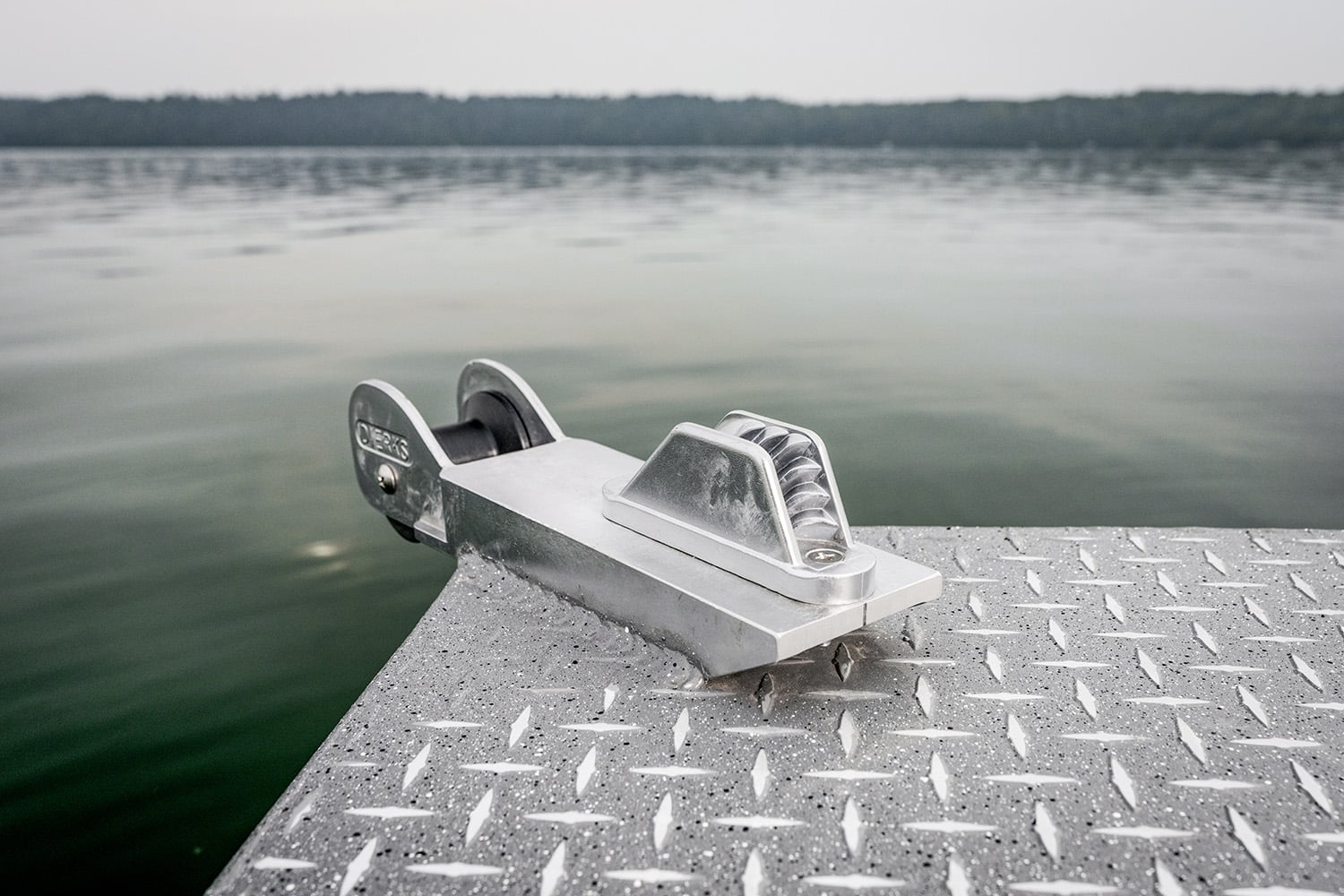

Bow anchor roller/release
Welded transducer tab
Delta Keel bottom for use w/ OB jet*
Rigging box with Utility top
AFT Sink Basin
Optional Features
Gunwale Rod Lockers
Port Swim Step
Helm – Leaning Post Bench Seat
Additional TJ Adjustable Seats on seat boxes
Bimini Top w/ Canvas
Washdown System with Hose and Sprayer
Bow Live Well Kit
Bow Mount Trolling Motor Prep Package
Multiple Paint & Graphics Configurations
See Dealer for Additional Options
Aluminum Thickness
| Side | 0.125'' / 5052 Aluminum Alloy |
|---|---|
| Bottom | 0.190'' / 5086 Aluminum Alloy |
| Transom | 0.190'' / 5052 Aluminum Alloy |
Basic Power
Mercury 115EXLPT EFI 4 stroke
Note: Does not include prop
Basic Trailer
EZ Loader 4000 lb.(209) Galvanized Tandem Axle Bunk Trailer
GTWY 4700 lb. (229) Galvanized Tandem Axle Bunk Trailer
Bunk Trailer Includes:
EZ Loader:
Spring Suspension
14” Wheels
Carpeted Bunks w/ Slick Bunk Caps
Plastic Fenders w/ Non-Skid Steps
Tongue Jack
Hydraulic Surge
Disc Brakes
Chine Guides
Spare Tire & Carrier
GTWY:
Torsion Suspension
15” Wheels
Metal Fenders
Tongue Jack
Hydraulic Surge Disc Brakes
Chine Guides
Spare Tire & Carrier
Standard Rigging Features

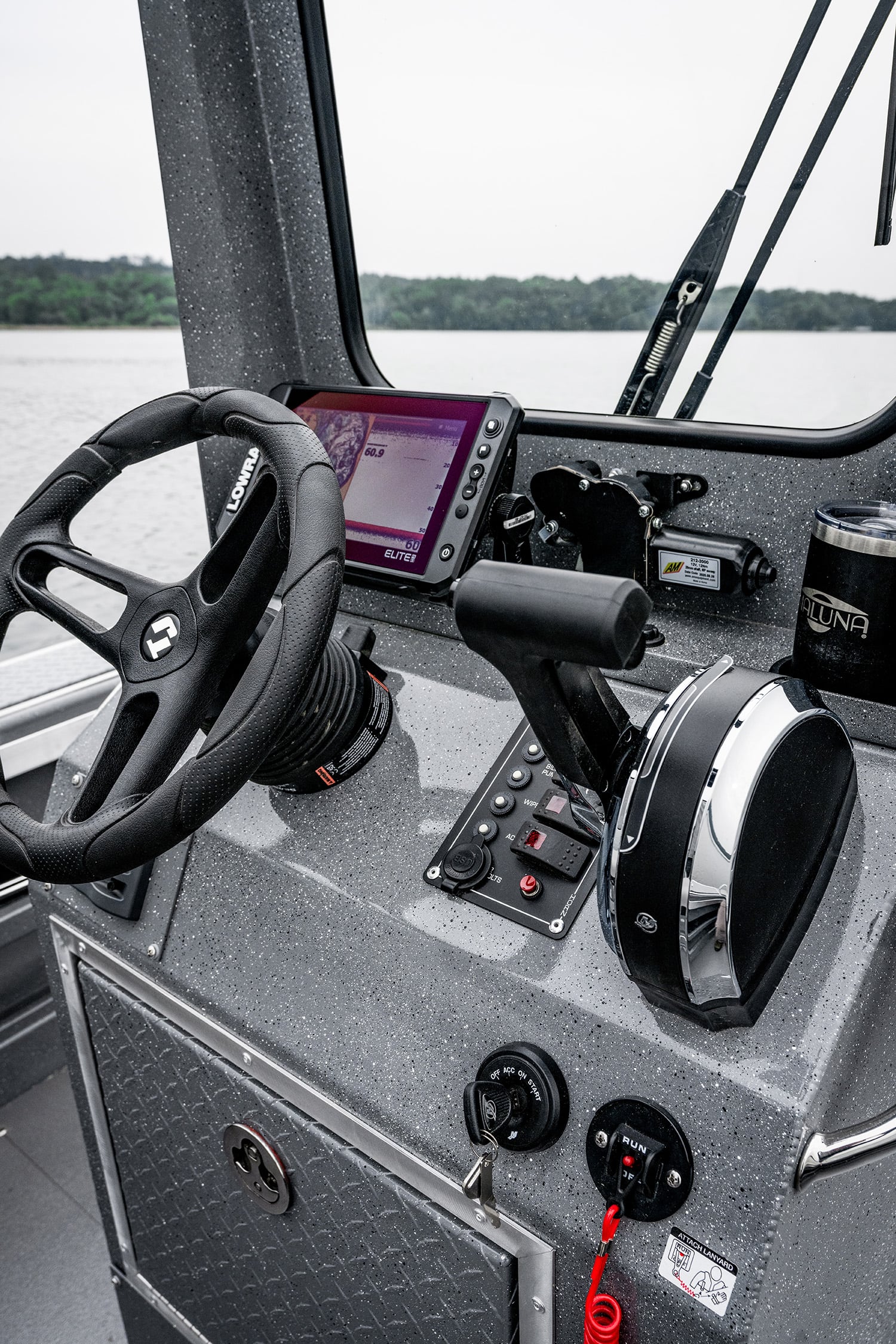

Analog Tach, Fuel, Trim & Hour Meter Dash Instrumentation
Mechanical Throttle/Shift
Hydraulic Steering
Switch Panel
Electric Horn
Dual USB Charger
All LED Navigation Lights Package
Battery Holder
Electric Bilge Pump with Auto Float Switch
Safety hub power distribution block
Standard Interior Features

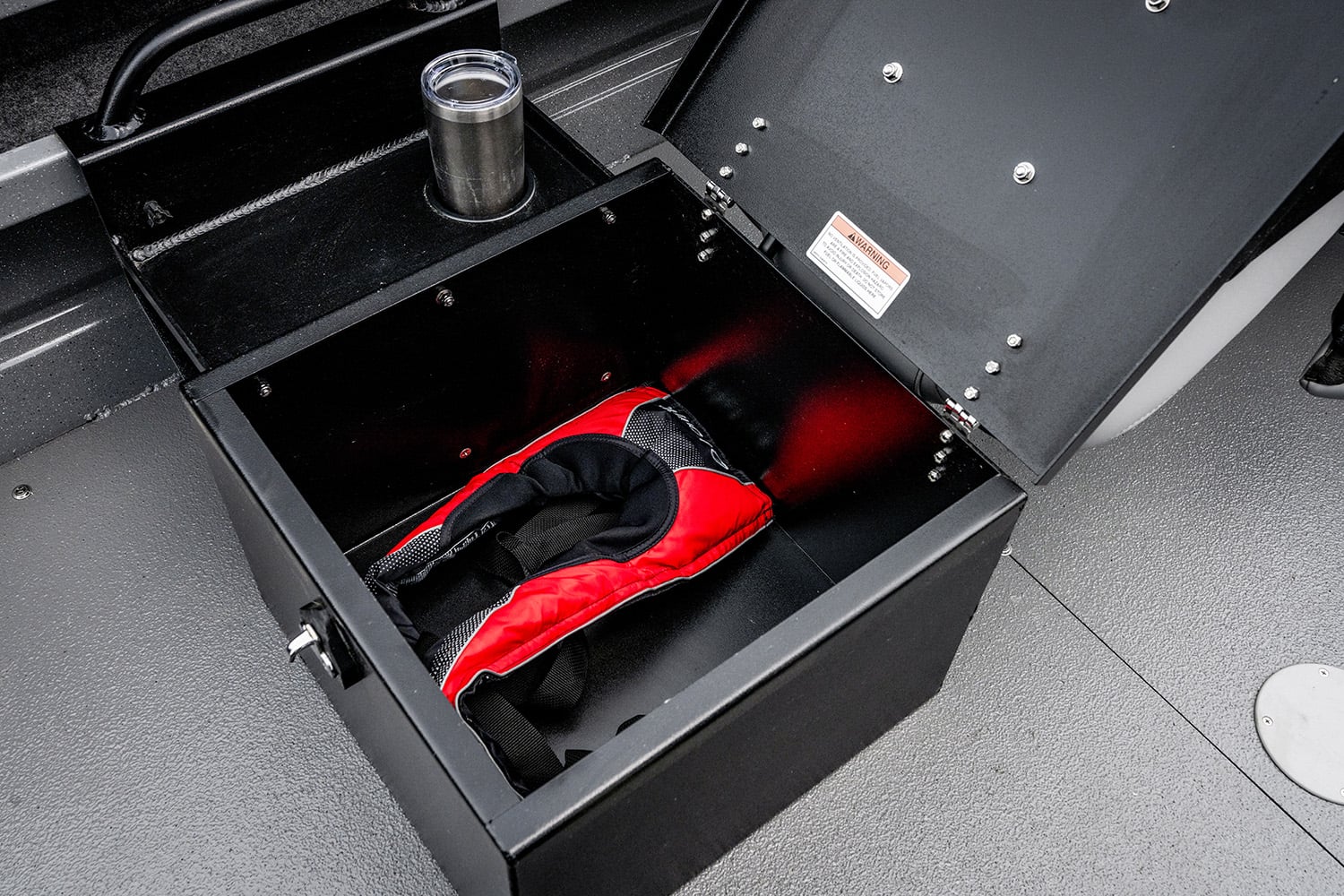

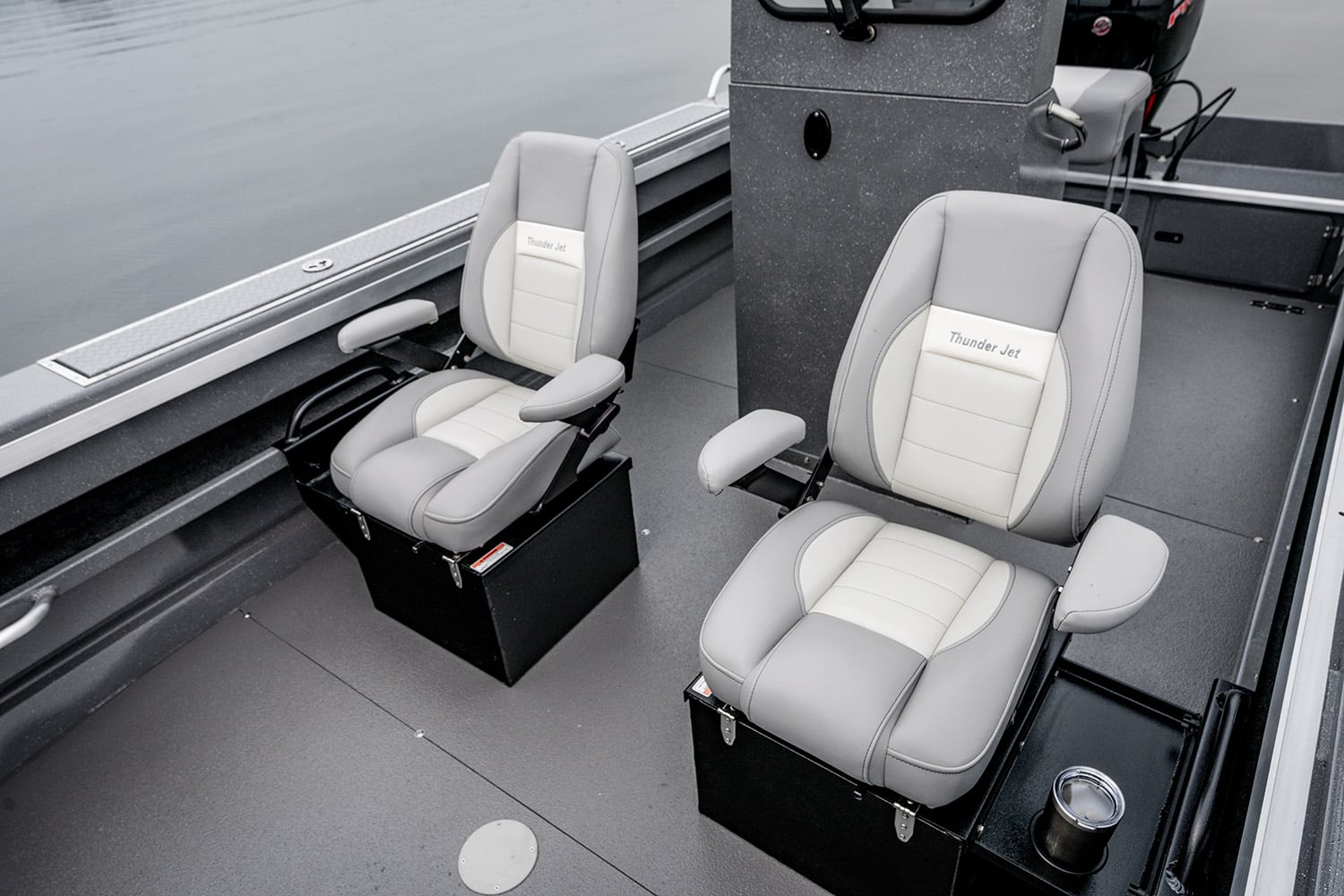

(2) Premium Seats on Seat Box w/ Locking Swivels
Premium Seat Arm Rests
(2) Cup Holders

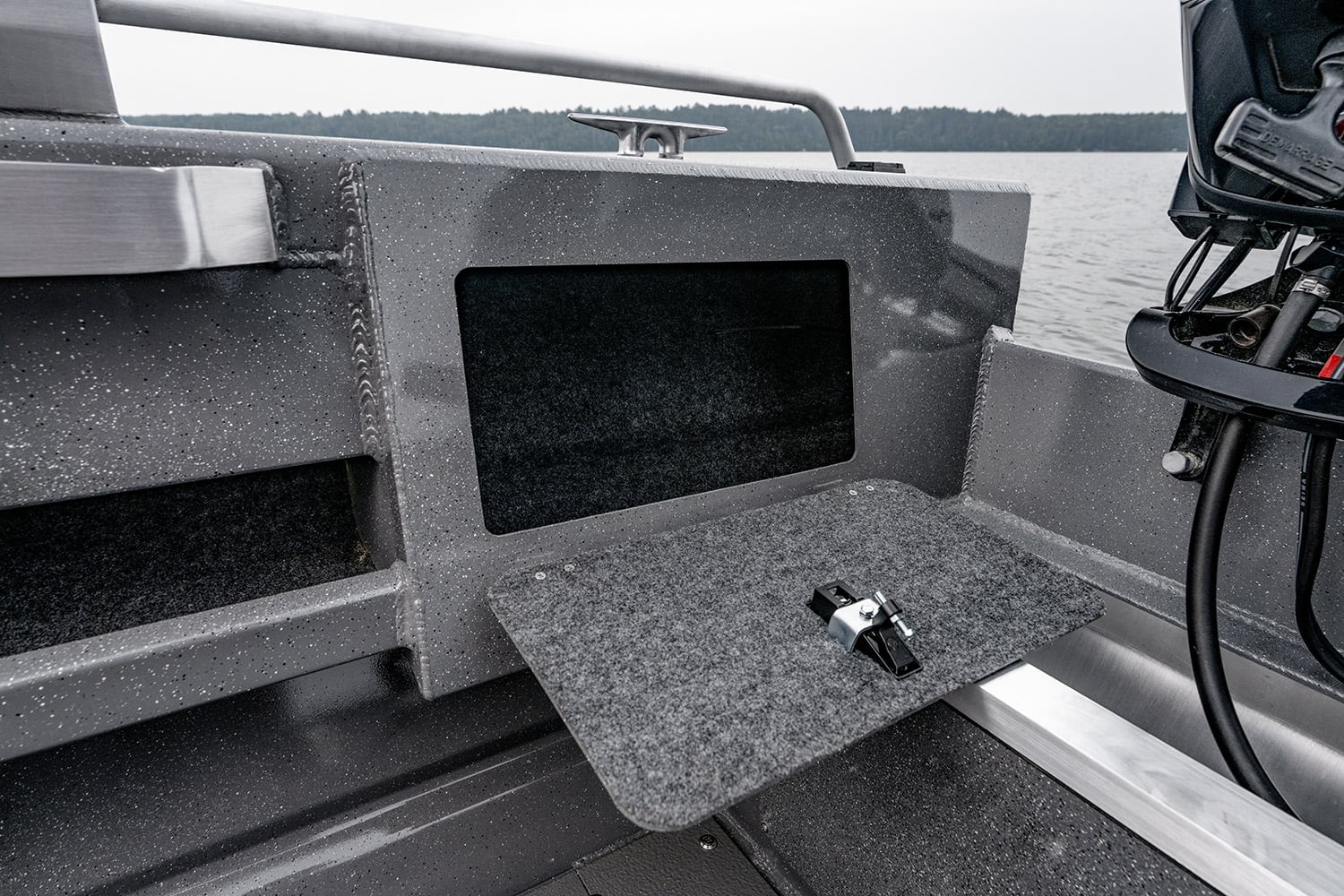

Lockable Gunwale Storage Box for Switch Panel
Extra Large under bow storage locker
Fish box and storage box
Under gunnel courtesy lights
Supersede Composite Floors with Marine Vinyl
Gunwale rod lockers
Sound dampening package
Anchor roller w/jamb cleat
Bow trolling motor prep package
Bimini top set
Washdown system
Additional premium seat
Motor options
Jet motor options
Smartcraft gauge upgrade
2/3 hull side paint
Full hull side paint
Upgraded graphics
Thunder Jet raised logo graphic
