OPTIMIZED OFFSHORE CAPABILITY

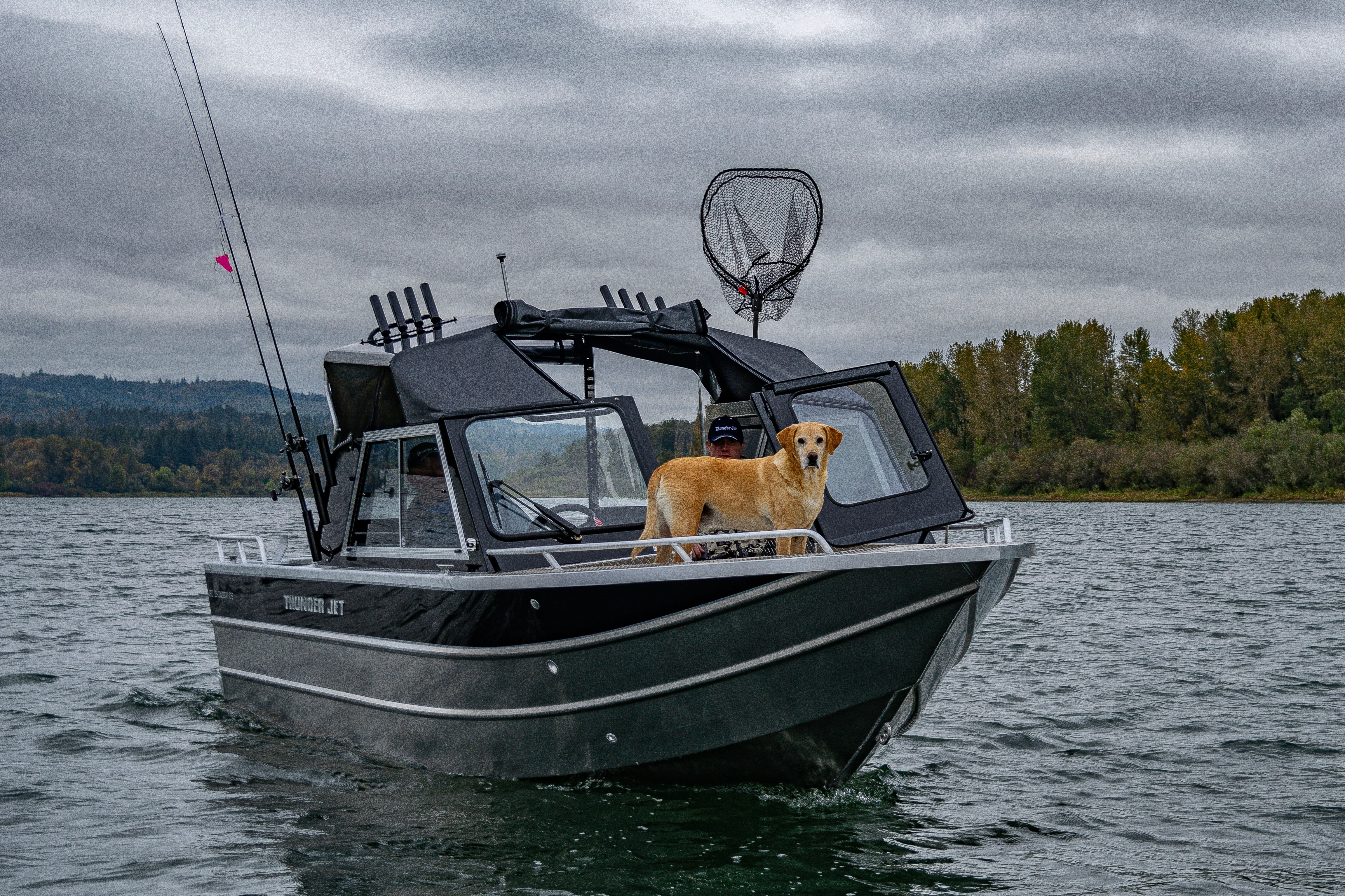

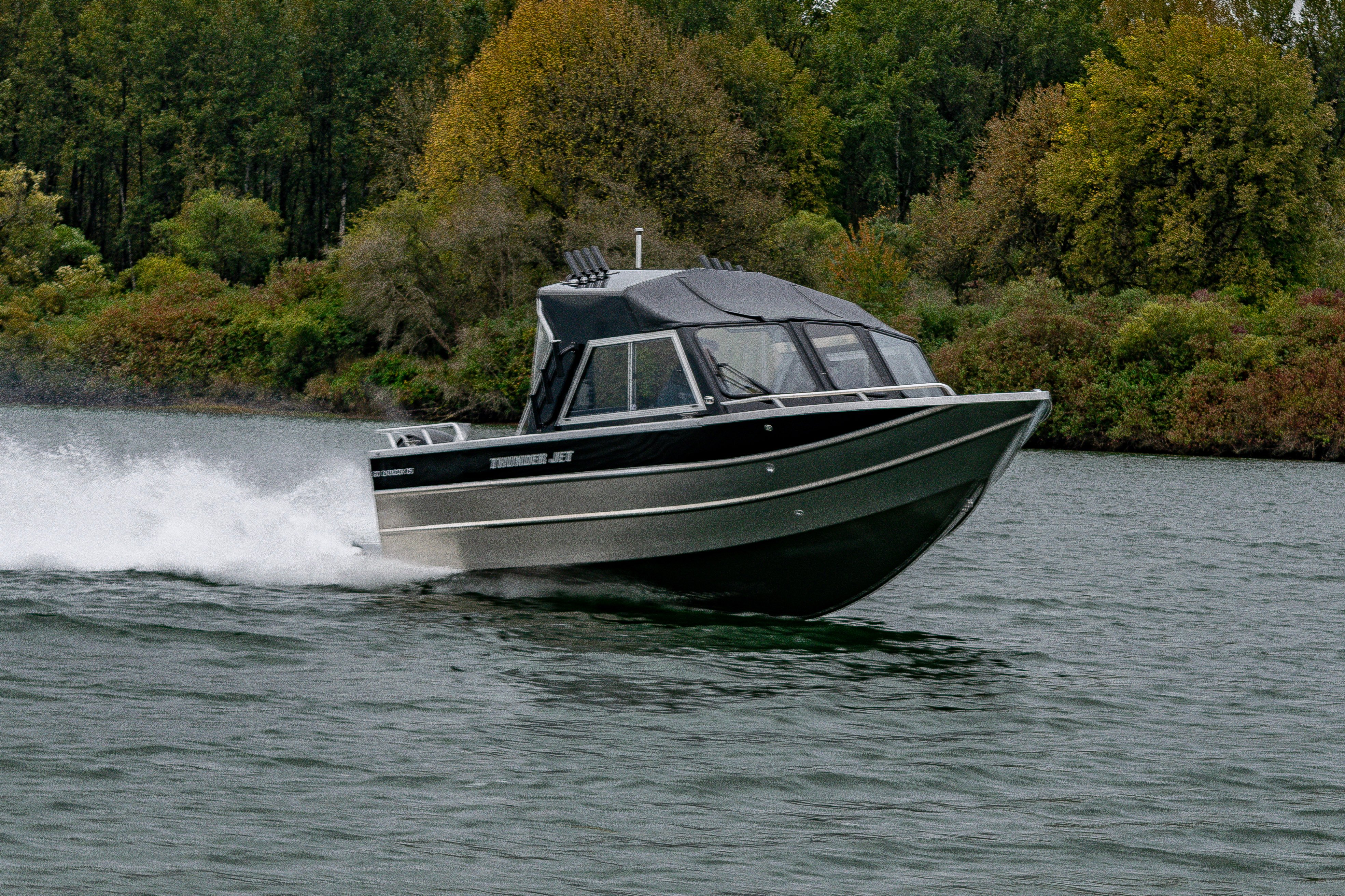

The Chinook OS (Offshore) brings it all to the table for offshore anglers. It’s built with safety in mind while accommodating all the fishing features you expect, with smartly designed storage for tackle and gear and a rugged hardtop for protection in the chop. With an ultra-durable progressive deep-V hull for a smoother, drier ride, it’s ready to take on the offshore species of your choice.

FEATURES & SPECS


HIGHLIGHTS

  • Designed around the serious fisherman
  • Three hard top options
  • Progressive deep V hull
  • Extra deep sides
  • Extremely safe and stable platform
  • Welded walk-through windshield

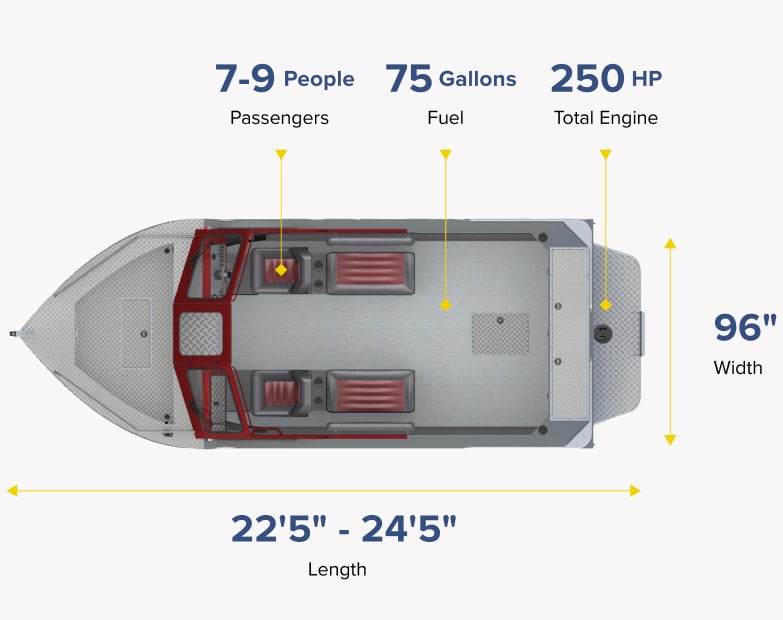

Base Boat Specifications - 20

Length 20'
L.O.A 22'5''
Beam Width 96''
Side Height 38''
Cockpit Depth 30''
Chine Width 88''
Bottom Width 93''
Minimum/Maximum HP 150 / 250
Max Persons Capacity 7
Fuel Capacity 75 USG
Motor Length 25''
Hull Deadrise 16° Progressive TJ-X High Performance Hull

Base Boat Specifications - 21

Length 21'
L.O.A 23'5''
Beam Width 96''
Side Height 38''
Cockpit Depth 30''
Chine Width 88''
Bottom Width 93''
Minimum/Maximum HP 150 / 250
Max Persons Capacity 8
Fuel Capacity 75 USG
Motor Length 25''
Hull Deadrise 16° Progressive TJ-X High Performance Hull

Basic Power

Mercury 150XL 4 Stroke

Note: Does not include prop

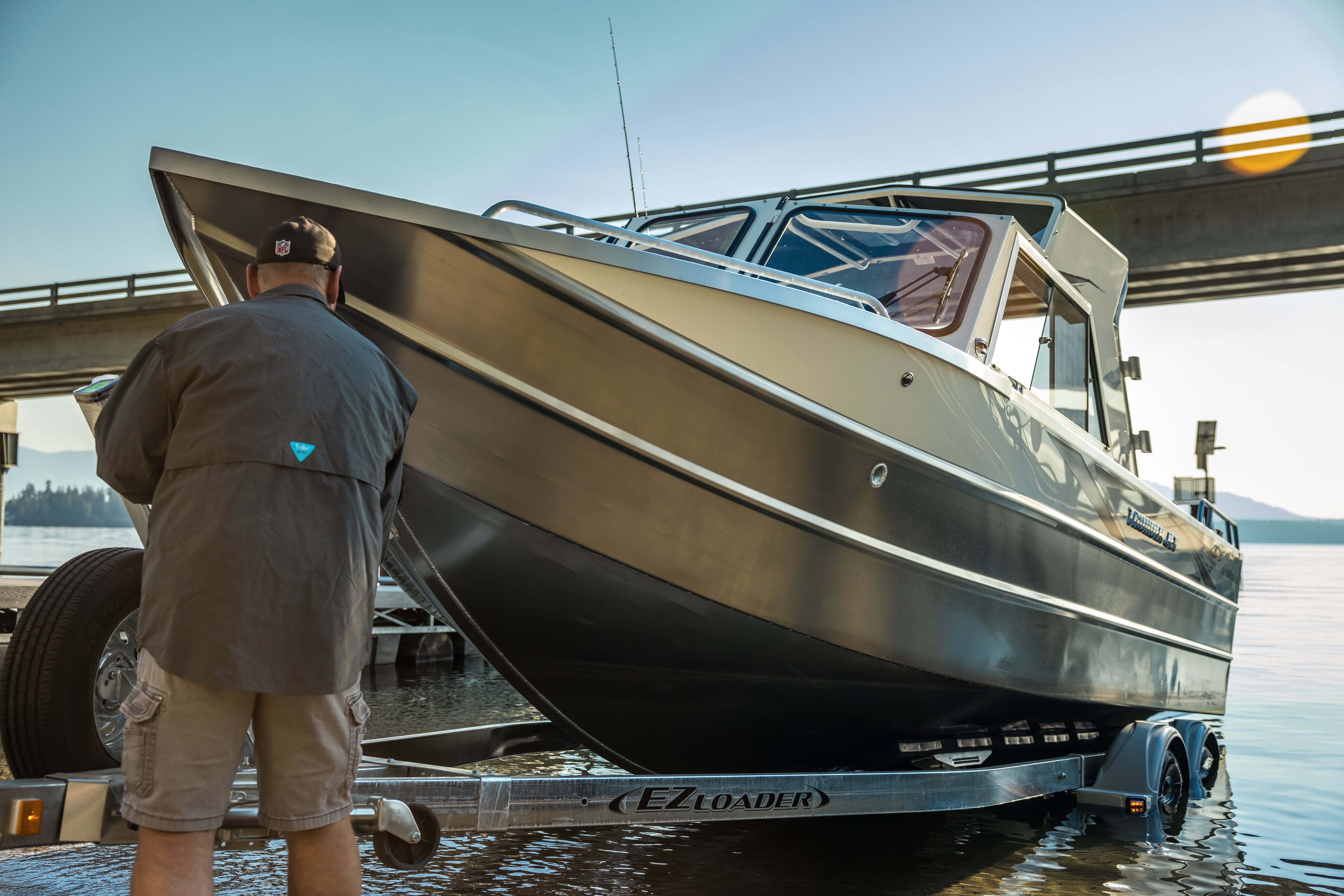

Basic Trailer

EZ Loader 4700 lb. Capacity Galvanized Tandem Axle

Bunk Trailer Includes:

Spring Suspension; 14'' Wheels

Carpeted Bunks w/ Slick Bunk Caps

Plastic Fenders w/ Non-Skid Steps

Tongue Jack

Hydraulic Surge Disc Brakes

Standard Hull Features

One Piece Hull Sides / One Piece Bottom

Progressive Offshore Hull w/ Upswept Bow

Full Length Engineered Box Stringers

(4) Full Length Formed-In External Hull Stiffeners

Full Length Offshore 5'' Reverse Chine

Fully Welded Heavy-Duty Keel Guard

Welded Thru-Hull Fittings

(5) Welded 8'' Cleats

Wide Formed Gunnels

Welded Bow & Transom Eyes

Welded 4'' High Bow Rails

Double Walled Self-Draining Diamond Tread Drop Bow

Large Fully Welded Bow Drains

Locking Self-Draining Bow Locker

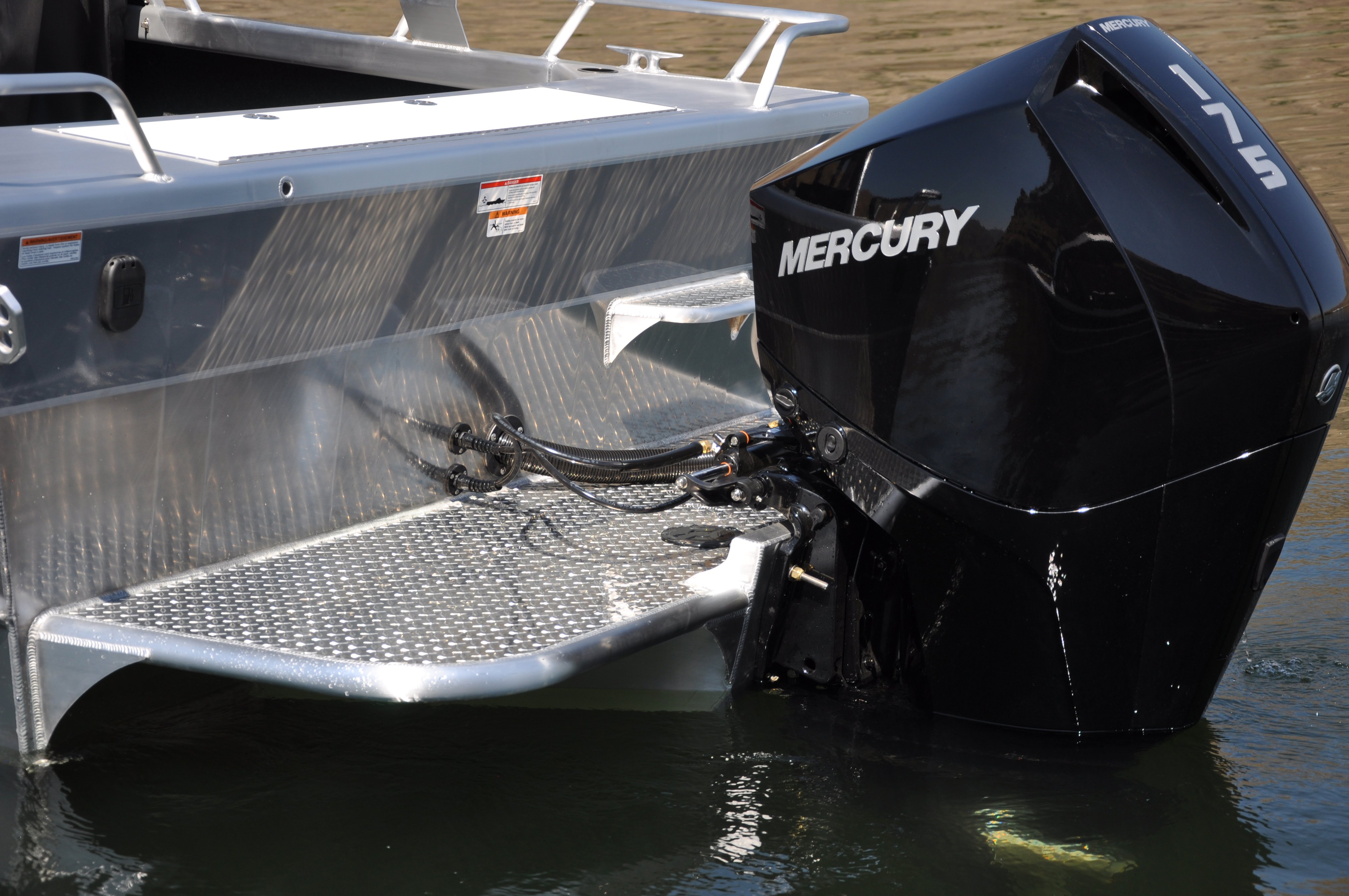

Welded Full Width Transom Platform w/ Undermount Telescoping     Ladder

Welded External Motor Bracket

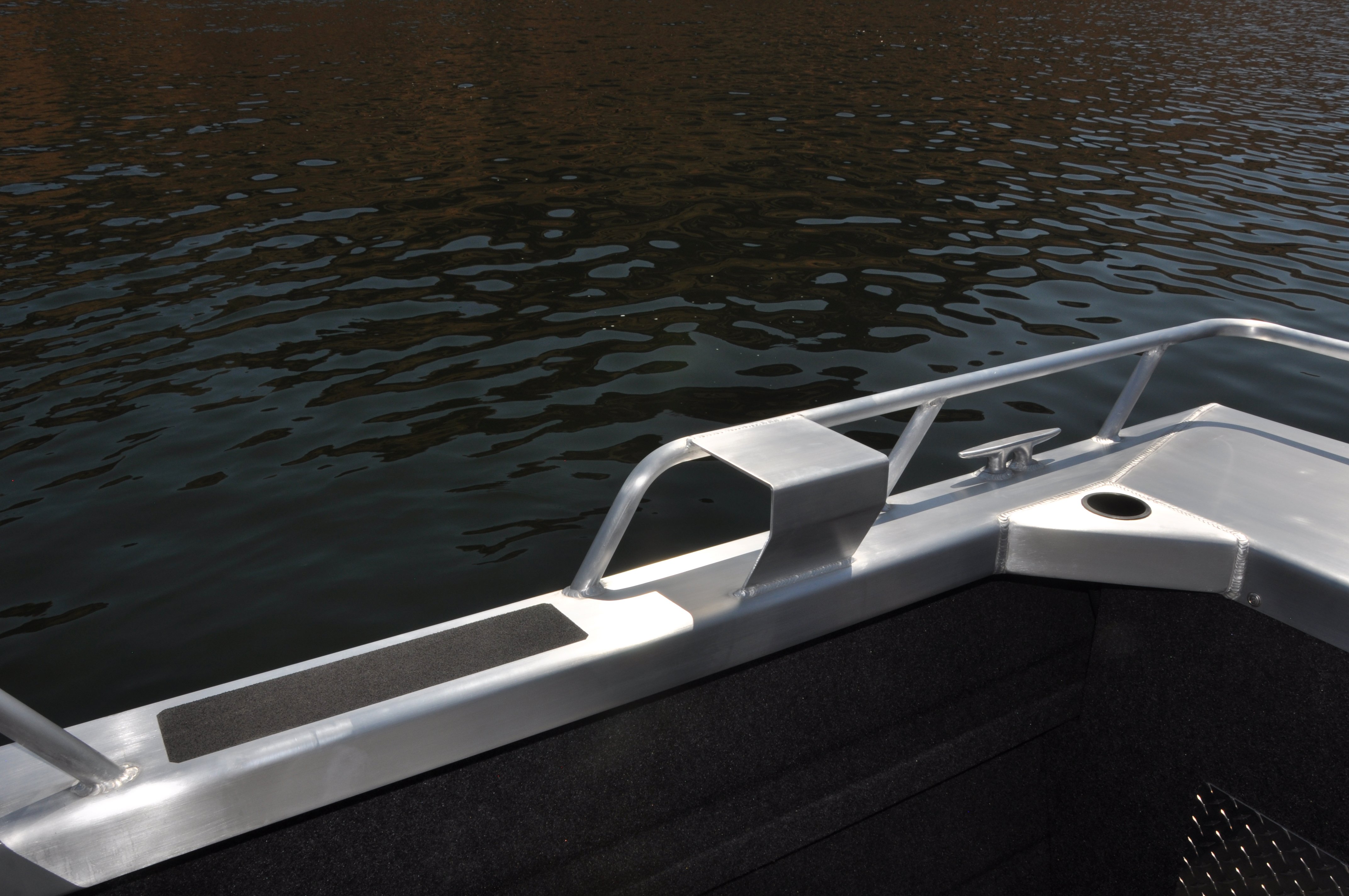

Welded 6'' High Wrap-Around Stern Rails

Welded Downrigger Mounting Pads

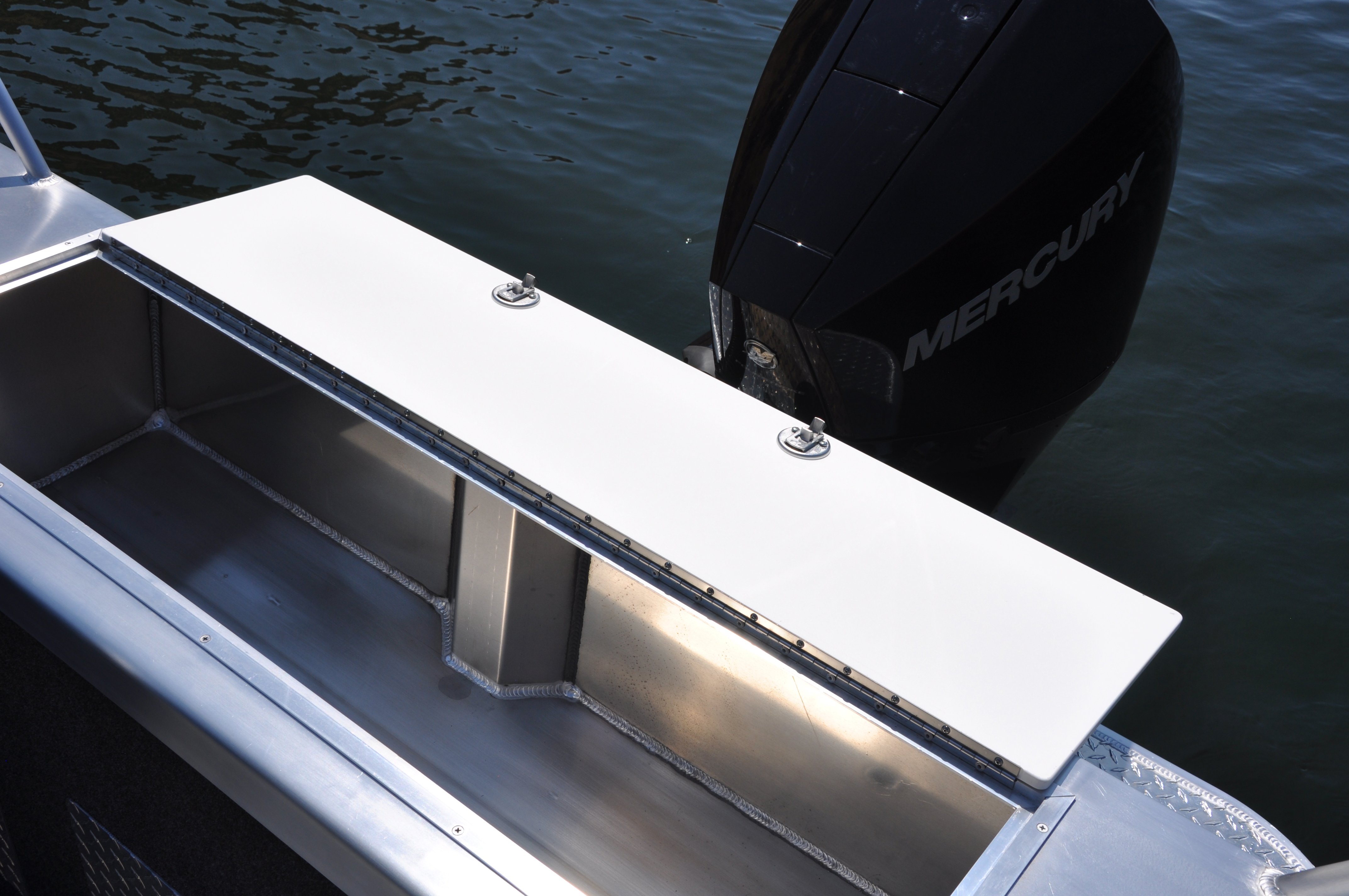

Transom Fish Locker w/HDPE Lid

Welded 5 Piece Walk-Thru Windshield

Standard Rigging Features

Analog Tach, Fuel, Trim & Hour Meter Dash Instrumentation

No Feedback Single Cable Steering System

Mechanical Throttle/Shift

Premium Switch Panel & Electric Horn

Dual USB Charger

LED Navigation Lights Package

Premium Marine Wiring Harness w/ Water Tight Connections

Safety Hub Power Distribution Block

Transom Battery Tray

Electric Bilge Pump w/ Auto Float Switch

Conduit Under Bow Deck for Running Wiring

Pantographic Self-Parking Driver Side Windshield Wiper

Base Boat Specifications - 22

Length 22'
L.O.A 24'5''
Beam Width 96''
Side Height 38''
Cockpit Depth 30''
Chine Width 88''
Bottom Width 93''
Minimum/Maximum HP 175 / 250
Max Persons Capacity 9
Fuel Capacity 75 USG
Motor Length 25''
Hull Deadrise 16° Progressive TJ-X High Performance Hull

Aluminum Thickness

Side 0.125'' / 5052 Aluminum Alloy
Bottom 0.190'' / 5086 Aluminum Alloy
Transom 0.250'' / 5052 Aluminum Alloy

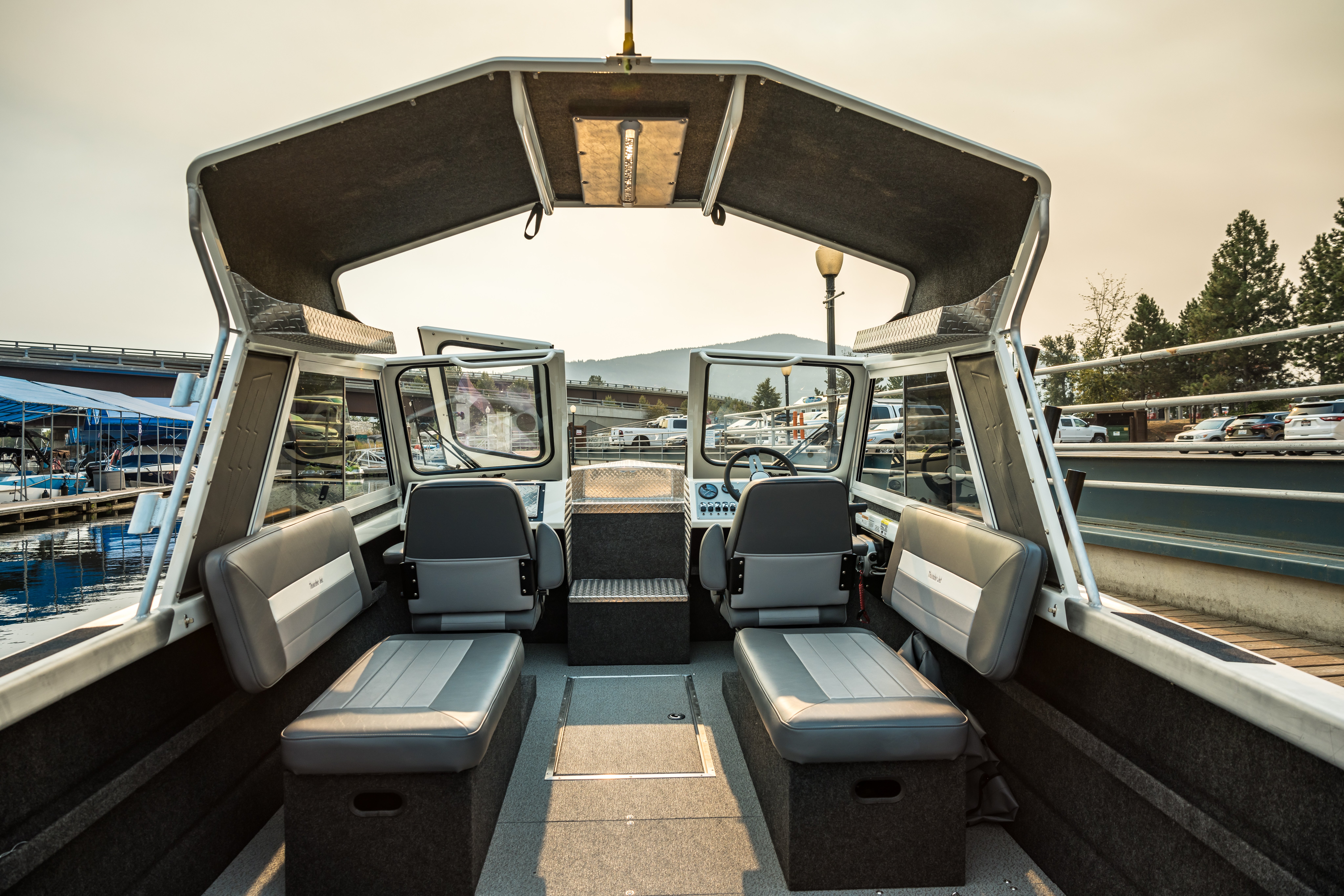

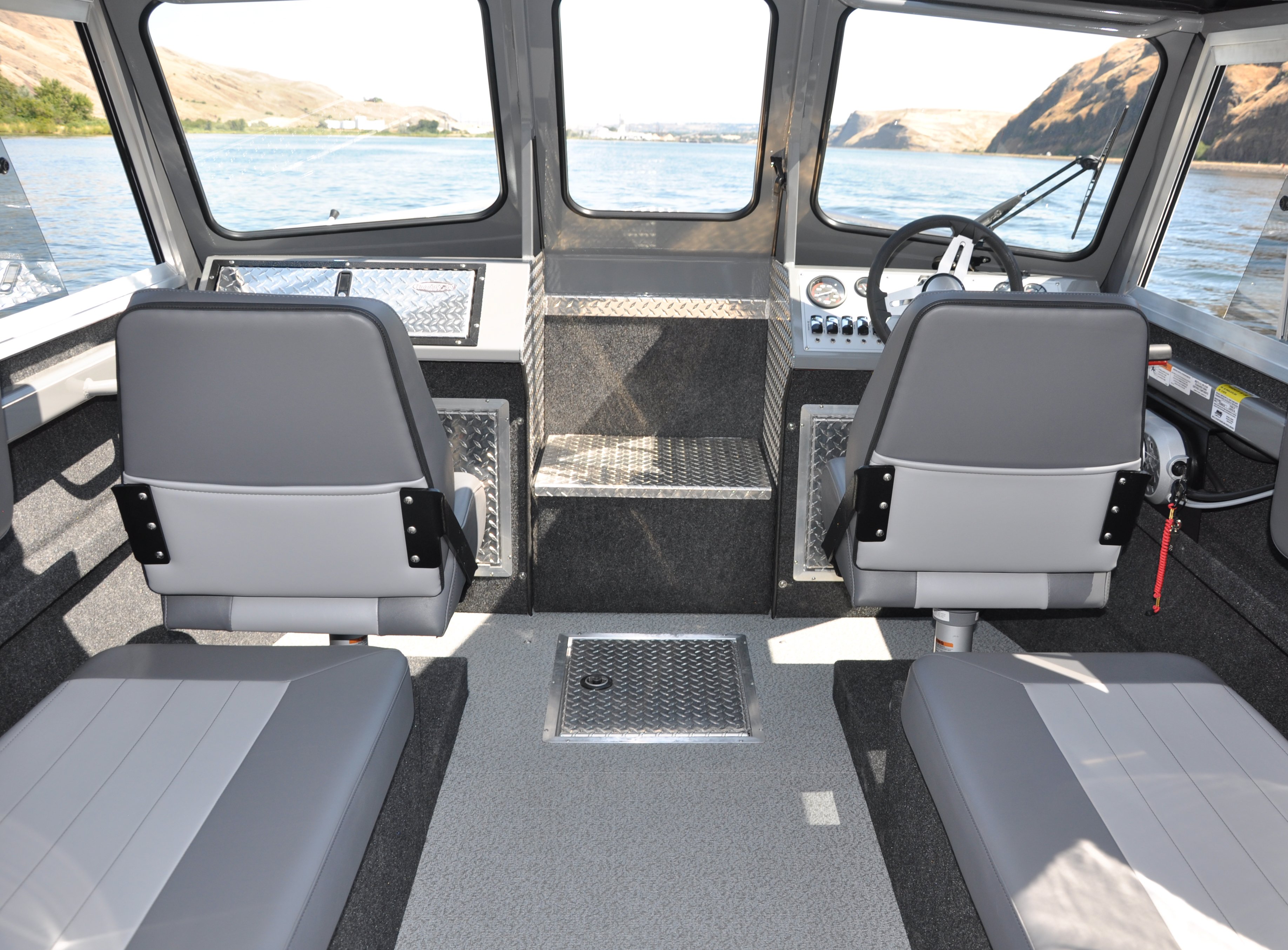

Standard Interior Features

(2) TJ Seats on Pedestals w/ Locking Swivel

Adjustable Driver’s Seat Slider

(2) 39" Storage Box Bench Seats w/ Removable Backrests

Folding Canvas Top w/ Side Curtains, Aft Drop Curtain w/ Roll-up     Center Door, Travel Boot and Heavy-Duty Square Tube Bows

Bulb Seal Along Forward Portions of All Canvas

Locking Glove Box

Under Dash Storage

Stainless Steel Rubber Coated Steering Wheel

Welded Passenger Grab Rail

Welded High Mount Windshield Grab Rails

Locking Aft Cockpit Floor Storage Compartment

(3) Locking Interior Transom Access Hatches

Diamond Tread Bow Step w/ Storage

(4) Full Length Welded Side Storage Trays

(8) Cup Holders

Full Marine Carpeted Sound Dampening Side Walls

Premium Marine Vinyl Decking

Standard Color & Graphics

1/3 Hull Side Paint

Color Matched Painted Dash & Windshield

Raised Domed Logos

Flat Vinyl Model Designators

Optional Features

Multiple Hardtop Configurations

ERS – Extended Running Surface

Additional In-Floor Storage

Angler’s Transom Fish Package

100 USG Fuel Tank (21' & 22')

Self-Bailing Deck

Alaskan Bulkhead

Transom Door

See Dealer for Additional Options

EXTERIOR & STRUCTURE

Built to conquer the harshest environments & last a lifetime.

FISHING OPTIMIZED INTERIOR

MAKE IT YOUR OWN

Customize your Chinook OS to be the perfect boating experience.

Interior

Seating Options

Upgraded fish seats (helm & passenger)

Fish seat arm rests (PR)

Suspension seat (EA)

Shock absorber seat pedestal (EA)

Smooth Moves seat pedestal (EA)

Heated seat (EA)

Bow folding seat

Bed rails

Aft storage bench seat cushions

Shockwave suspension pedestal

Mechanical

Engine Rigging

Mercury analog/DTS pre-rig 1 eng/1 sta

Smartcraft gauge upgrade

VesselView® 502 upgrade single engine

Suzuki pre-rig analog 1 eng/1 station

Prop & PDI

Mercury analog/DTS pre rig 1 eng/2 sta

Exterior

Top / Cabin

1/2 hardtop

3/4 hardtop

Full hardtop

Hardtop vista windows

Gull-wing hatch

Hardtop side-mount rod holders

Hardtop center top-mount rod holders

Extended full hardtop

Alaskan bulkhead

Rear hardtop grab rail

Stern

Stern rail extensions w/downrigger corner pads

Additional downrigger mounting pads (x2)

Deluxe anglers package

Basic anglers package

Insulated transom fish box

Diamond tread fish box lid

3/4 Platform w/undermount ladder

Welded transom kicker bracket

Welded platform kicker bracket
