THE ULTIMATE OFFSHORE EXPERIENCE

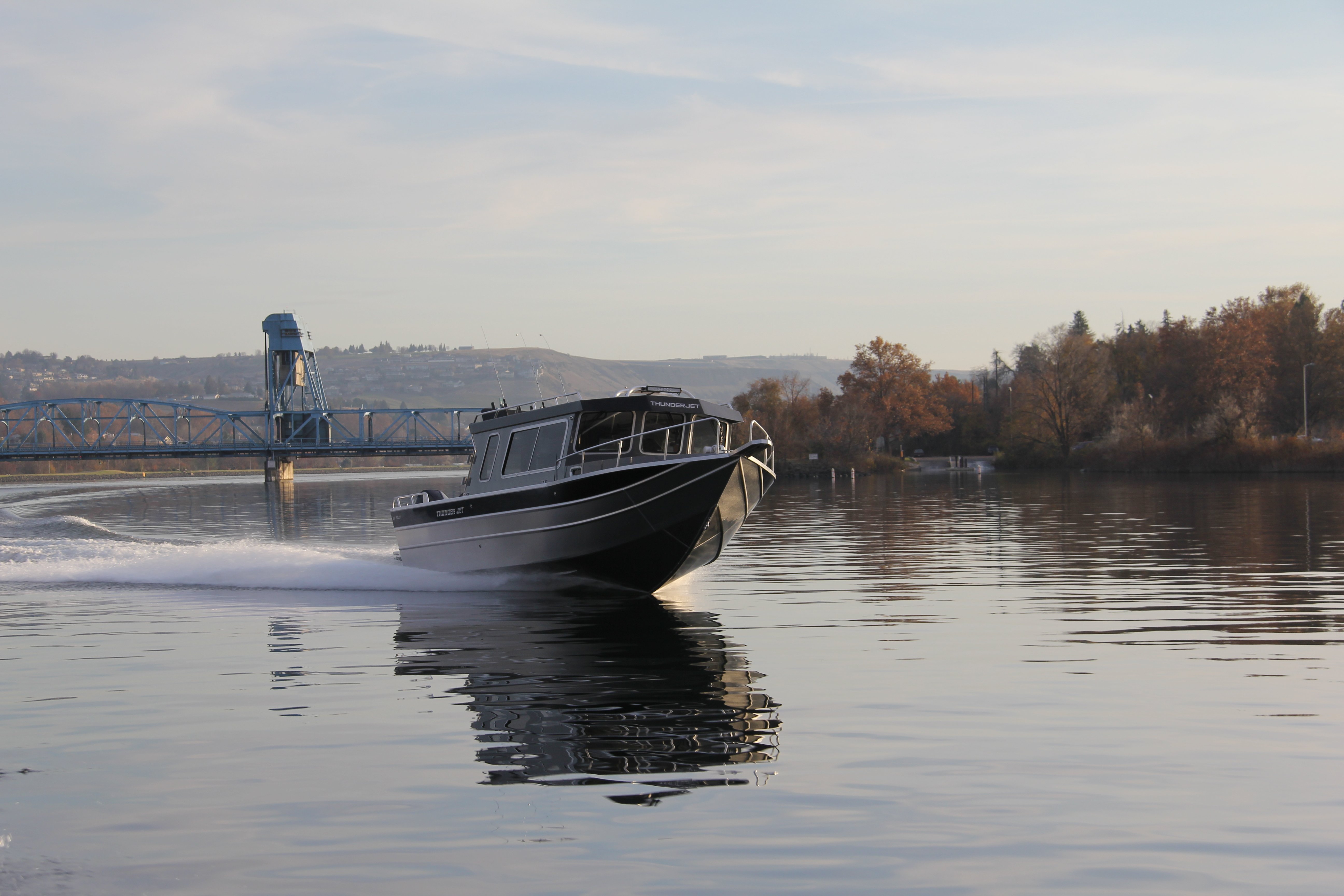

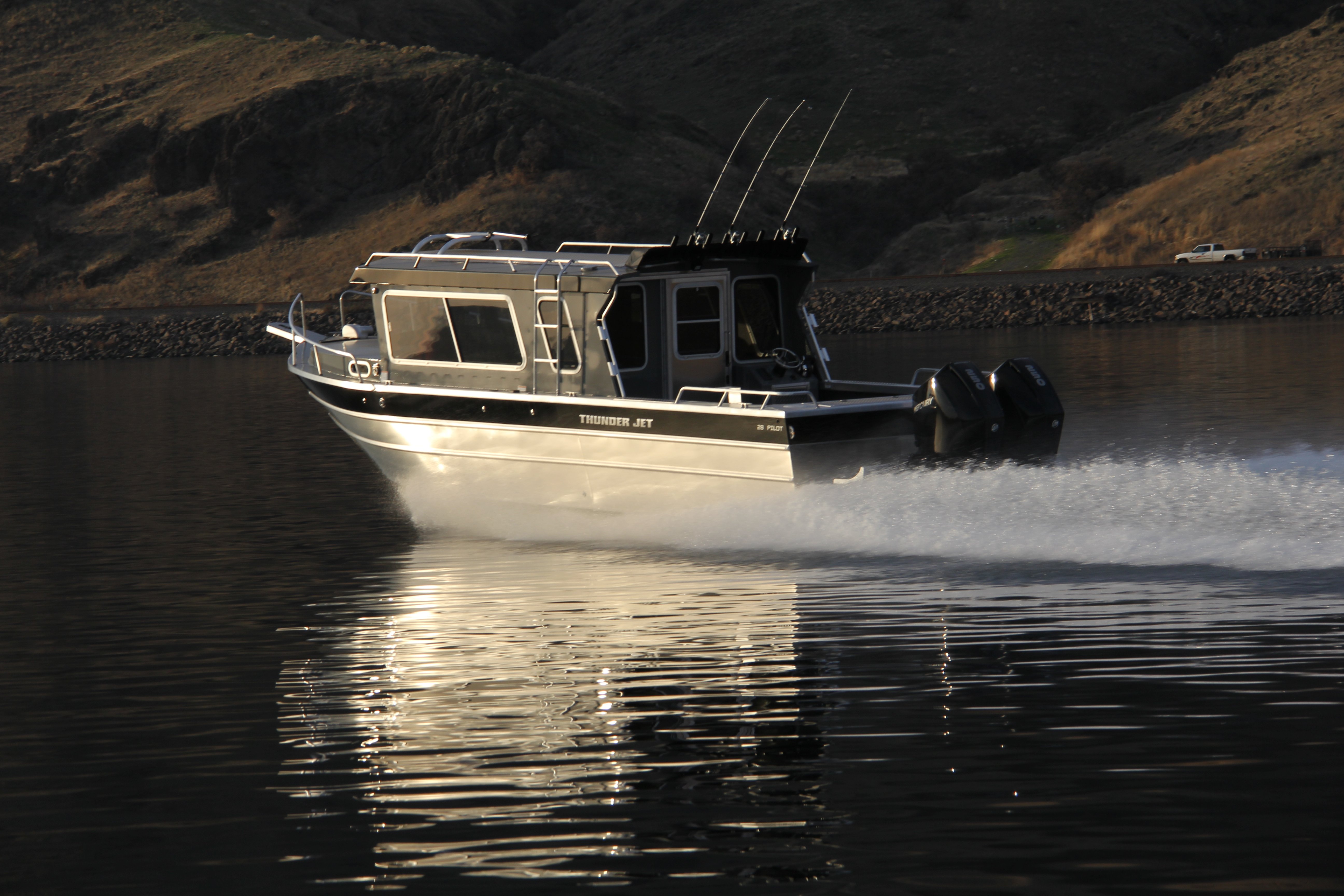

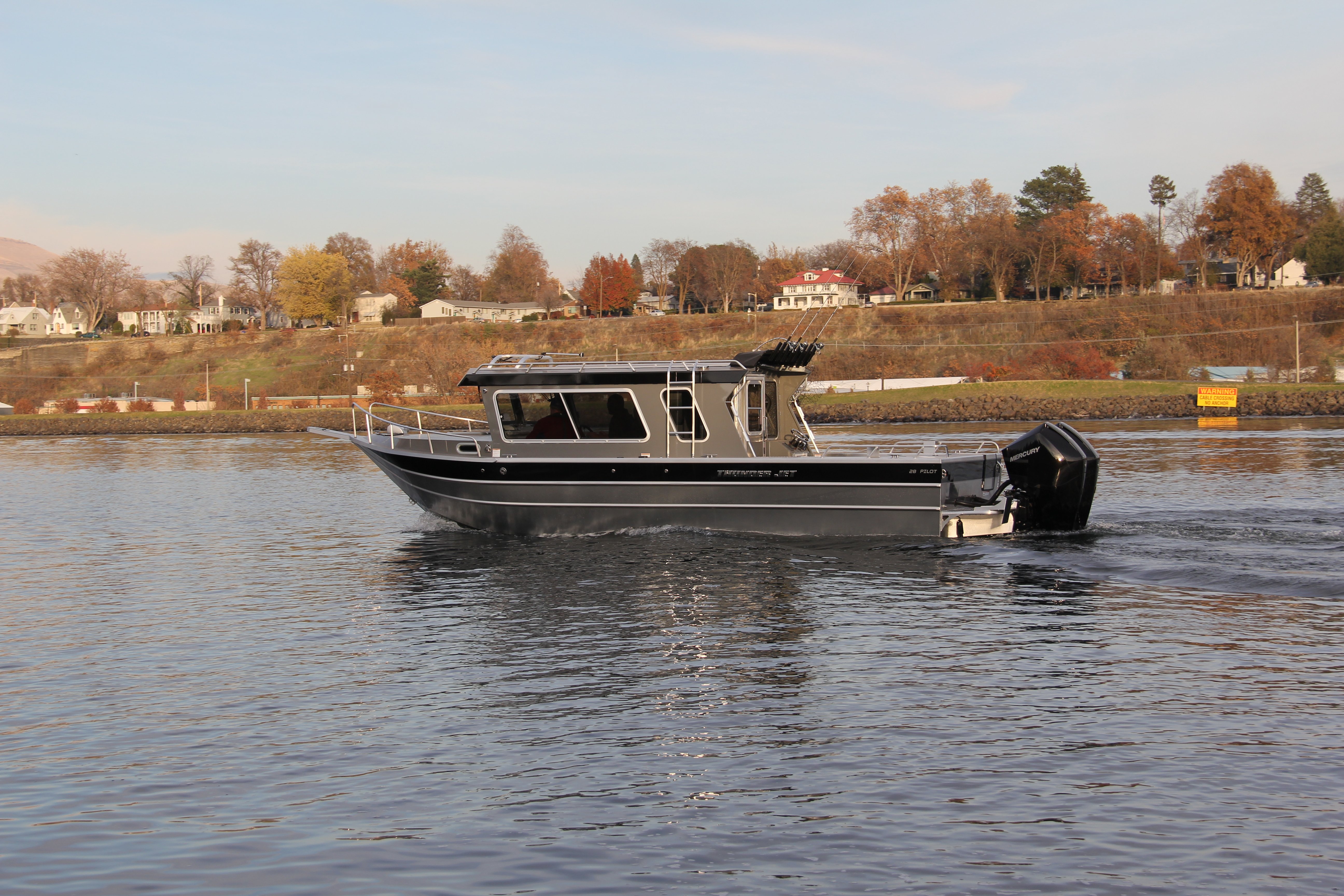

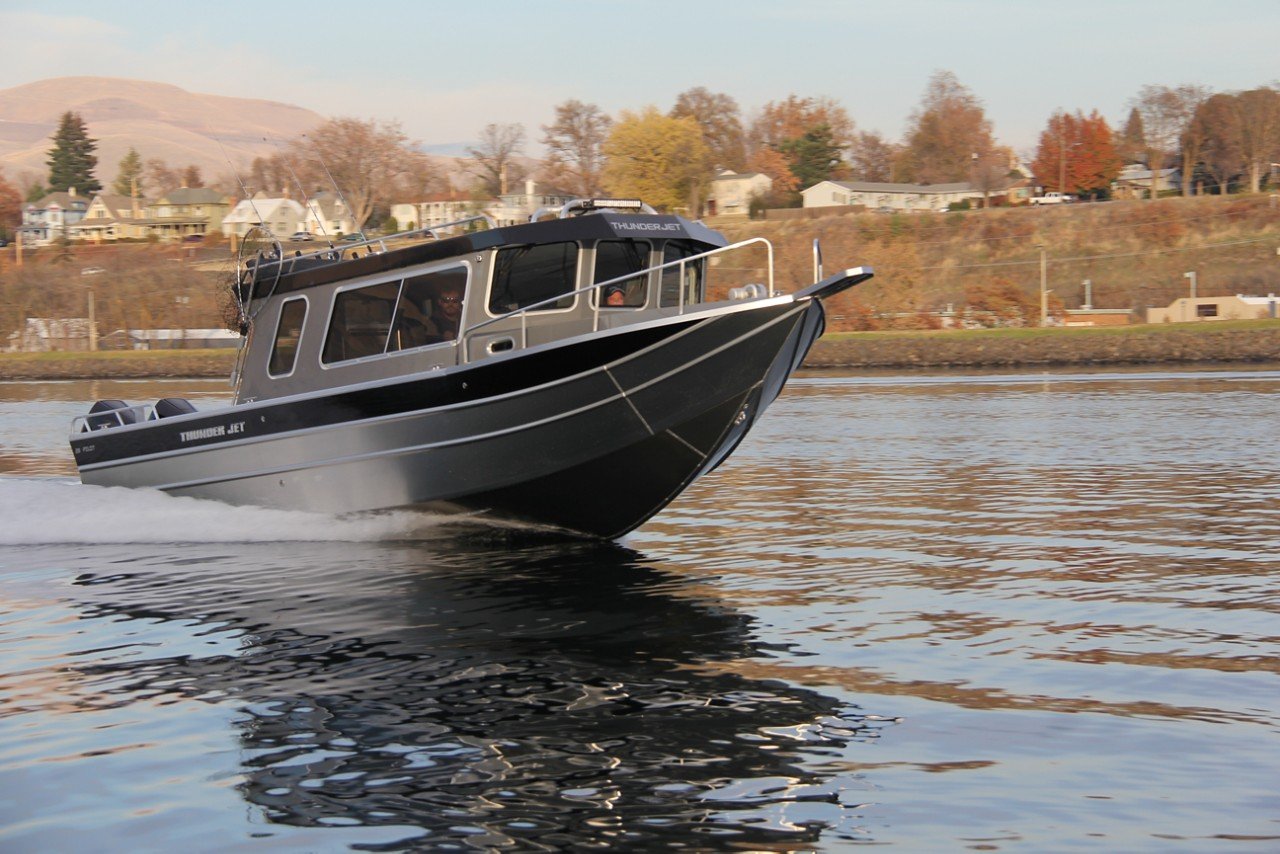

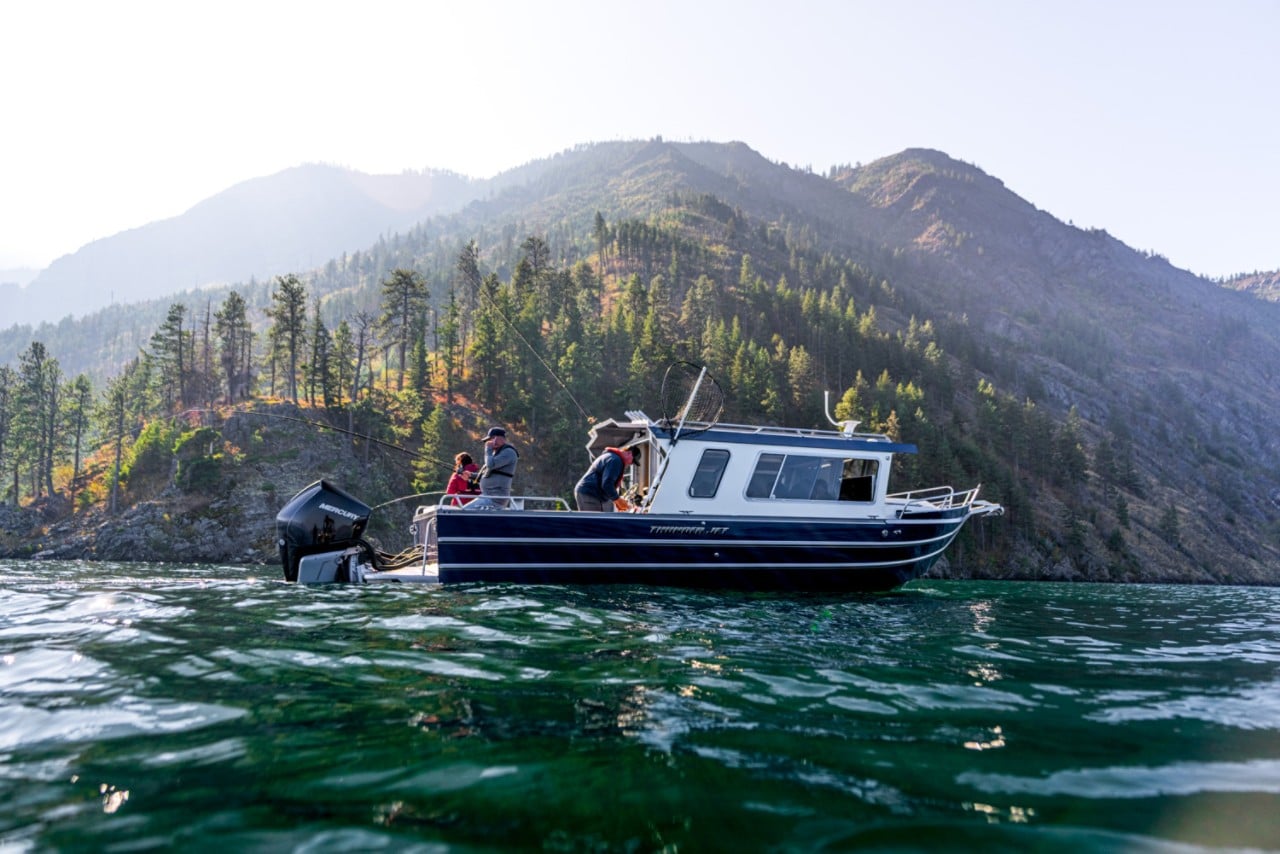

Whether you’re trolling wrecks or jigging for halibut, the Pilot provides an incredible offshore fishing experience. Designed for rugged coastal water excursions, it caters to the adventurer in you without sacrificing style or comfort. A comfy cockpit with ¼” safety glass keeps the crew secure, and the heavy-gauge deep-V hull slices through the chop on your way to and from the fishing grounds.

FEATURES & SPECS


HIGHLIGHTS

  • Designed for rugged coastal excursions
  • Full cabin with premium comfort
  • Built for family weekends or serious offshore fishing
  • Premium interior
  • Fishing friendly storage
  • Delivers on quality and function

Base Boat Specifications - 24

Length 24'
L.O.A 28'3''
Beam Width 108''
Side Height 41.5''
Cockpit Depth 28''
Chine Width 90''
Bottom Width 95''
Cabin Length 80''
Cockpit Length 83''
Minimum/Maximum HP 225 / 400
Max Persons Capacity 9
Fuel Capacity 73 USG
Motor Length 25''
Hull Deadrise Progressive 18 Degrees

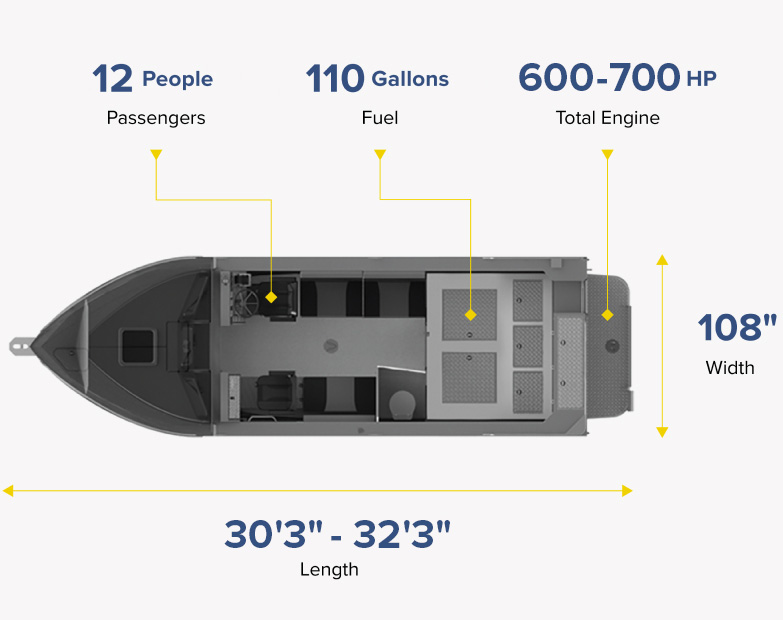

Base Boat Specifications - 28

Length 28'
L.O.A 32'3''
Beam Width 108''
Side Height 41.5''
Cockpit Depth 28''
Chine Width 90''
Bottom Width 95''
Cabin Length 116''
Cockpit Length 95''
Maximum HP 700
Max Persons Capacity 12
Fuel Capacity 110 USG
Motor Length 25''
Hull Deadrise Progressive 18 Degrees

Basic Power

Mercury 225XL 4 Stroke (Pilot 24)

Note: Does not include prop



Twin Mercury 150XL 4 Stroke (Pilot 26 & Pilot 28)

Note: Does not include prop

Basic Trailer

EZ Loader 8500 lb. Capacity Galvanized Tandem Axle (Pilot 24           & Pilot 26)

EZ Loader 12000 lb. Capacity Galvanized Triple Axle (Pilot 28)

Bunk Trailer Includes:

Torsion Suspension; Adjustable Frame Construction

Dual Bunks w/ Bunk Skids

Fenders w/ Extra Large Non-Skid Steps

Tongue Jack

15" Wheels

Electric Drum Brakes

Standard Hull Features

One Piece Bottom

Full Length Engineered Box Stringers

(4) Full Length Formed-In External Hull Stiffeners

Exclusive Tri-Structure Full Length Reverse Chine

(4) Performance Lifting Strakes

Fully Welded Heavy-Duty Keel Guard

Welded Thru-Hull Fittings

(7) Welded 8" Cleats

Wide Formed Gunnels

Welded Heavy Duty Bow & Transom Eyes

Welded 1" Diameter 18" High Bow Rails

Self-Bailing Vinyl Wrapped Aluminum Cockpit Flooring

Upswept Bow

Welded Bow Pulpit w/ Anchor Roller

Self-Draining Anchor/Rope Locker w/ Exterior Hatch

Welded Full Width Transom Platform w/ Undermount Telescoping     Ladder

Welded Wrap-Around Stern Rails

Welded Downrigger Mounting Pads

(2) Locking Transom Access Hatches

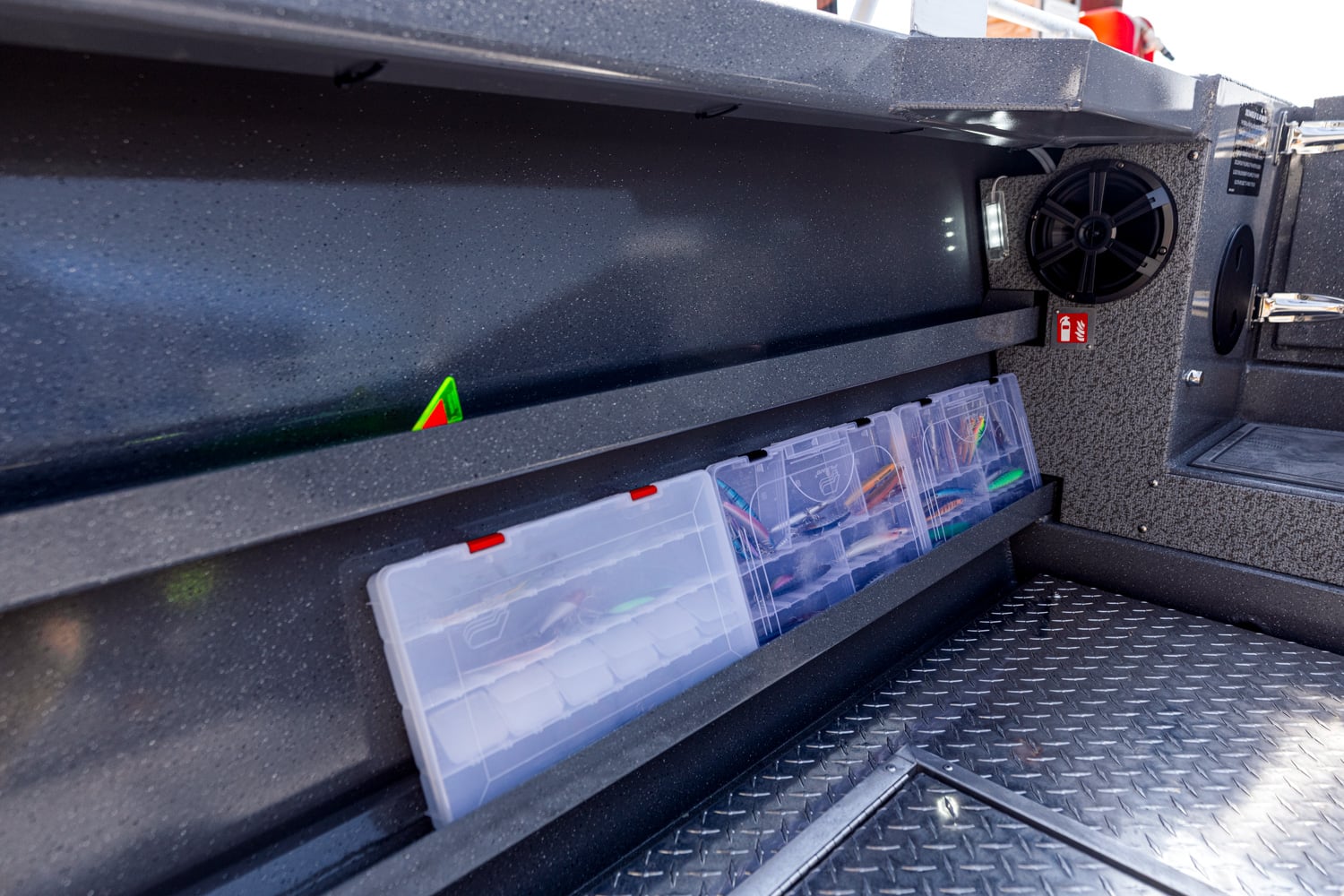

(4) Welded Cockpit Side Storage Trays

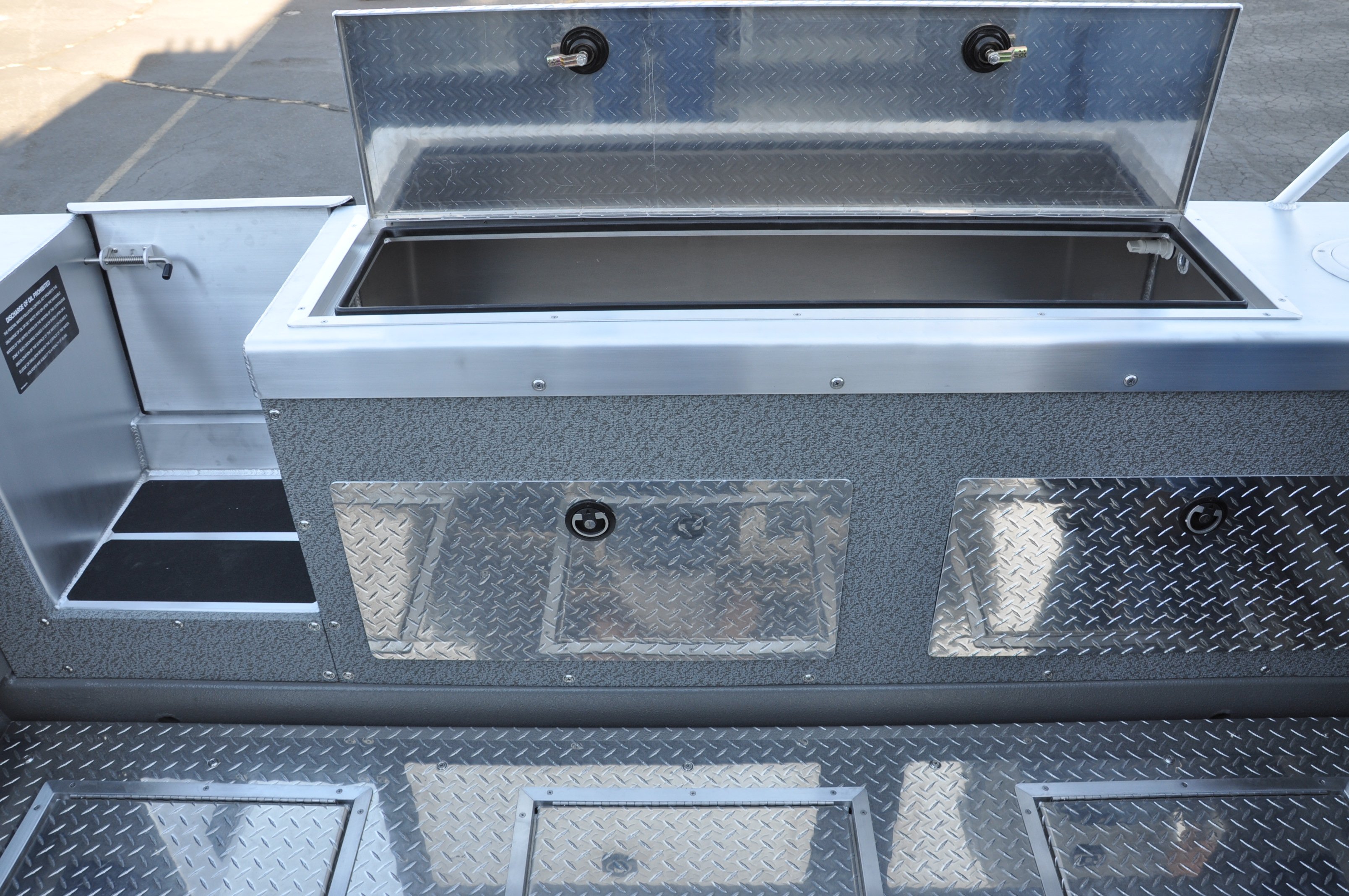

Aerated Locking Transom Livewell w/HDPE Lid

Floor Fish Locker w/ Macerator Pump

Locking Cockpit In-Floor Storage

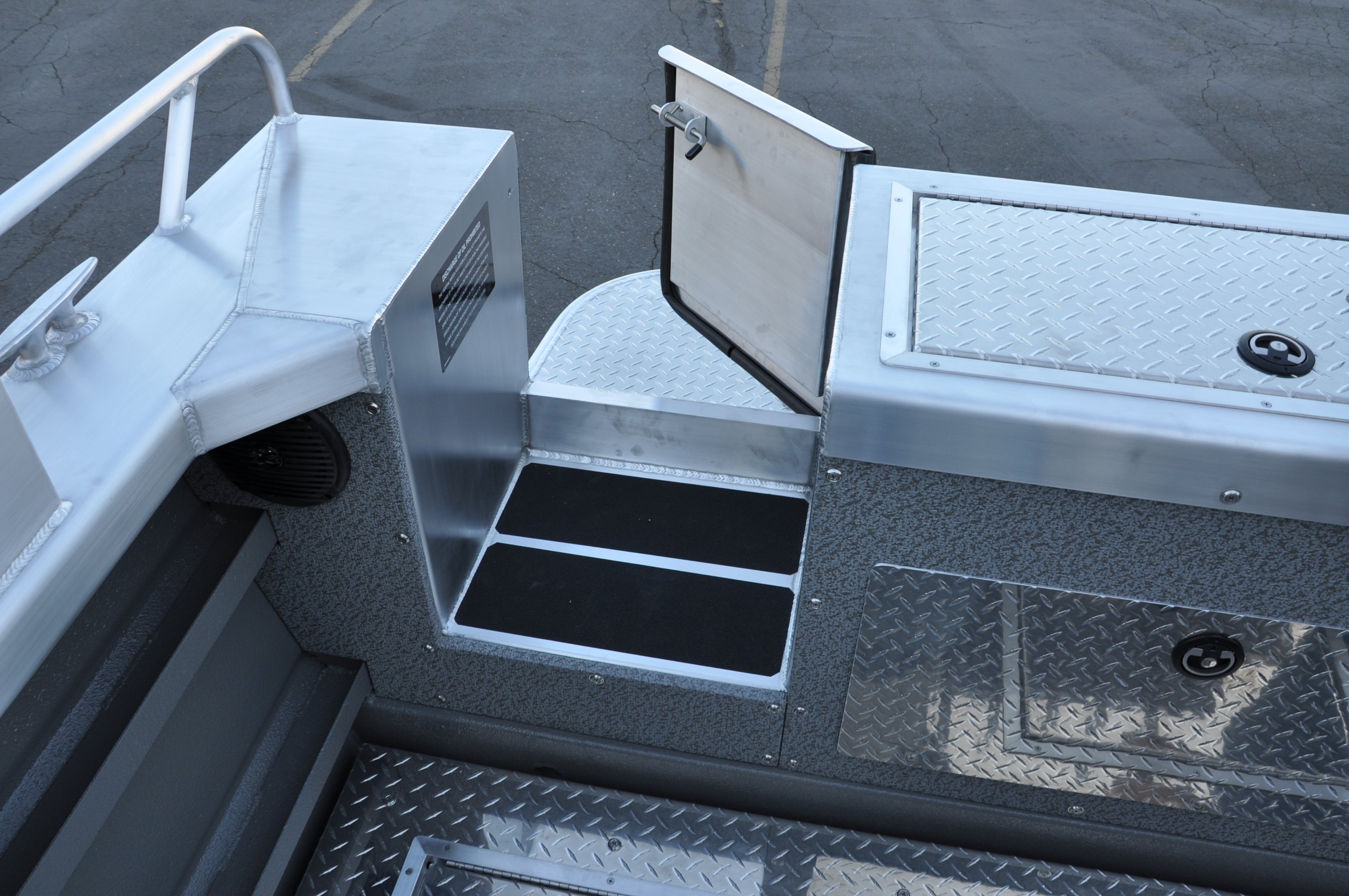

Starboard Transom Door

Port Side Net Holder

Welded Cabin w/ Bimini Top & 8 Rod Holders

Aluminum Framed Clamp-in Style Windows w/ ¼'' Safety Glass

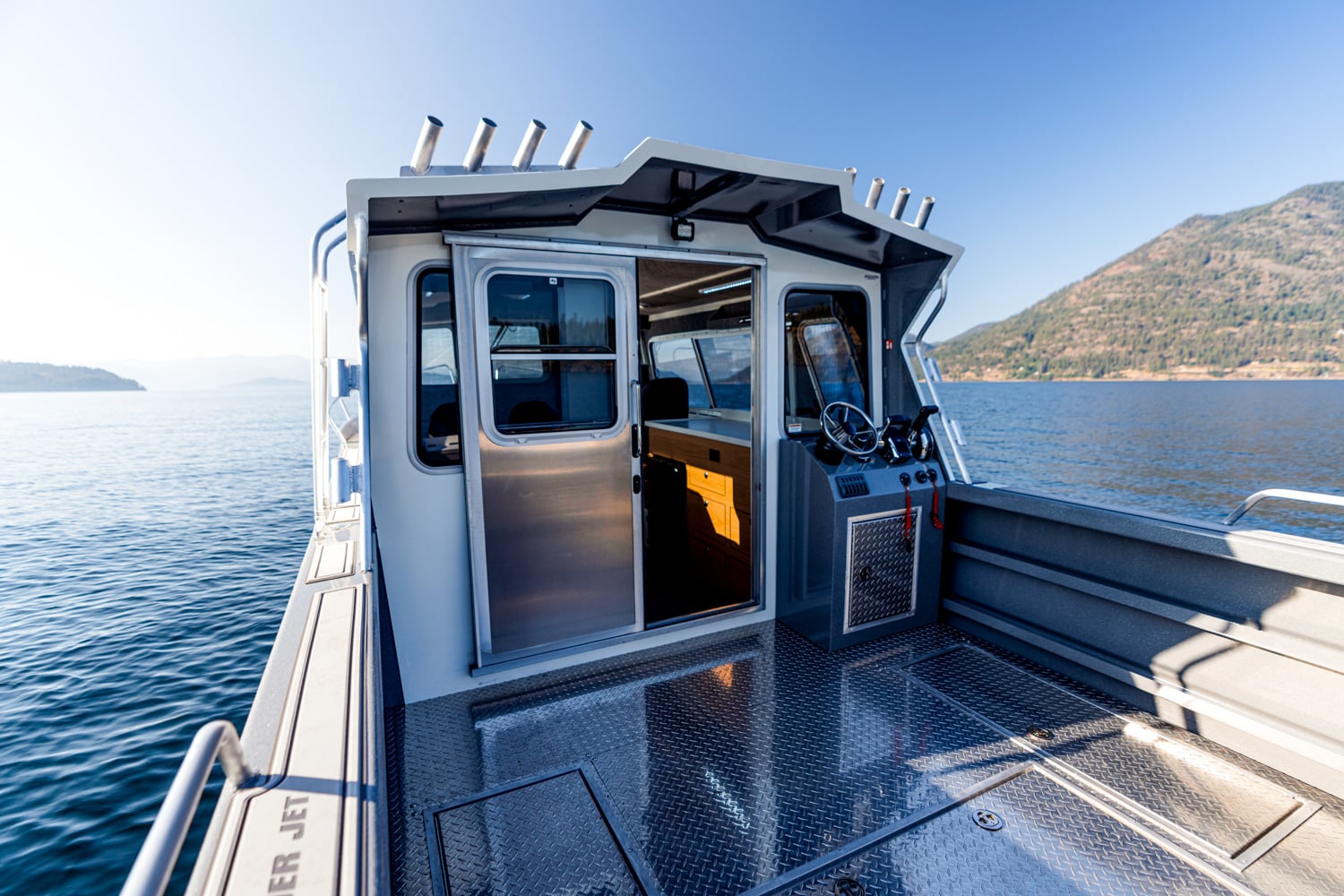

Marine Grade Aluminum Framed Weathertight Door w/ Window

9 x 12 Trim Tabs

Base Boat Specifications - 26

Length 26'
L.O.A 30'3"
Beam Width 108''
Side Height 41.5''
Cockpit Depth 28''
Chine Width 90''
Bottom Width 95''
Cabin Length 116''
Cockpit Length 71''
Maximum HP 600
Max Persons Capacity 12
Fuel Capacity 110 USG
Motor Length 25''
Hull Deadrise Progressive 18 Degrees

Aluminum Thickness

Side 0.160'' / 5052 Aluminum Alloy
Bottom 0.250'' / 5086 Aluminum Alloy
Transom 0.250'' / 5052 Aluminum Alloy

Standard Rigging Features

Tach, Fuel & Trim Dash Instrumentation

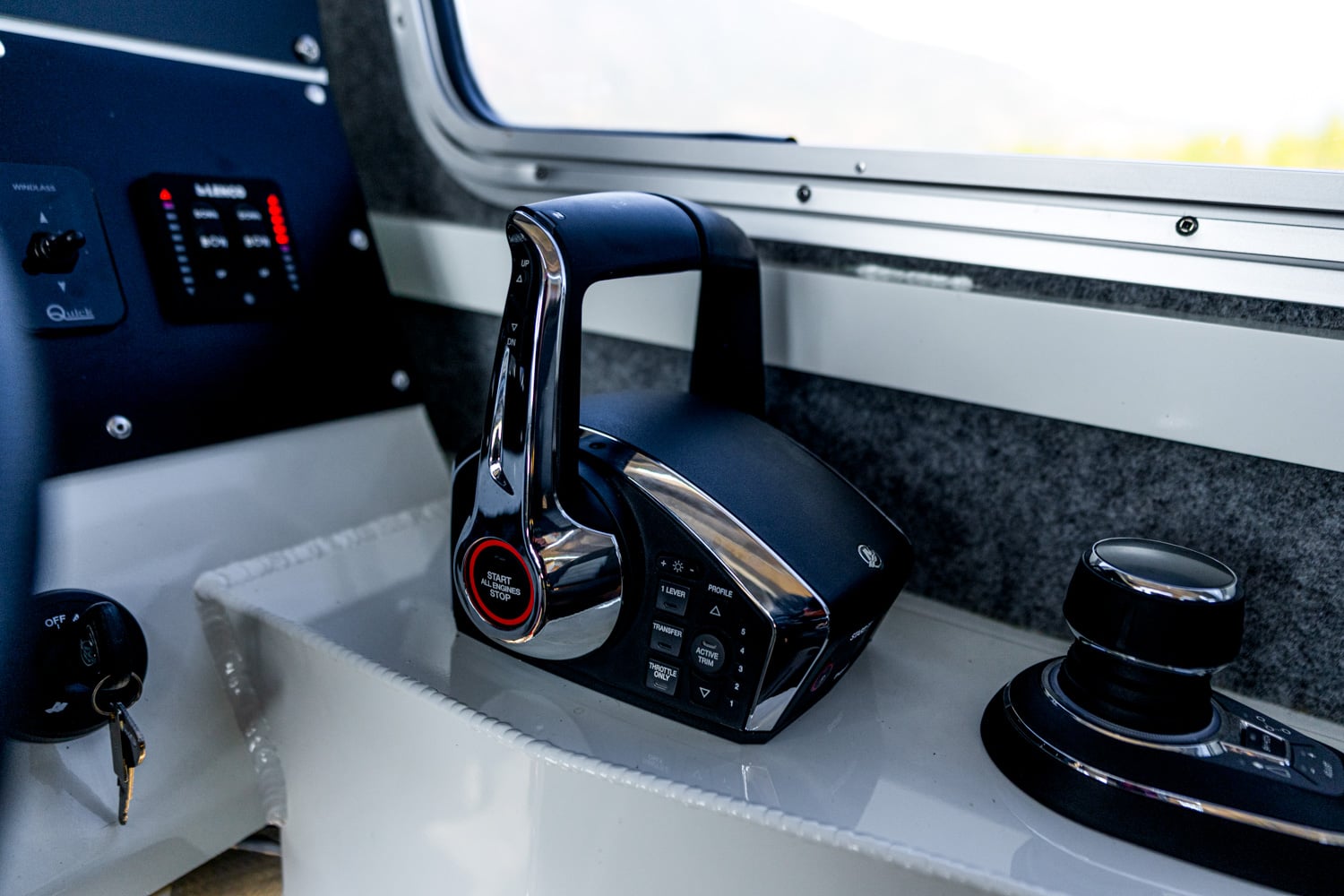

Mechanical Throttle/Shift

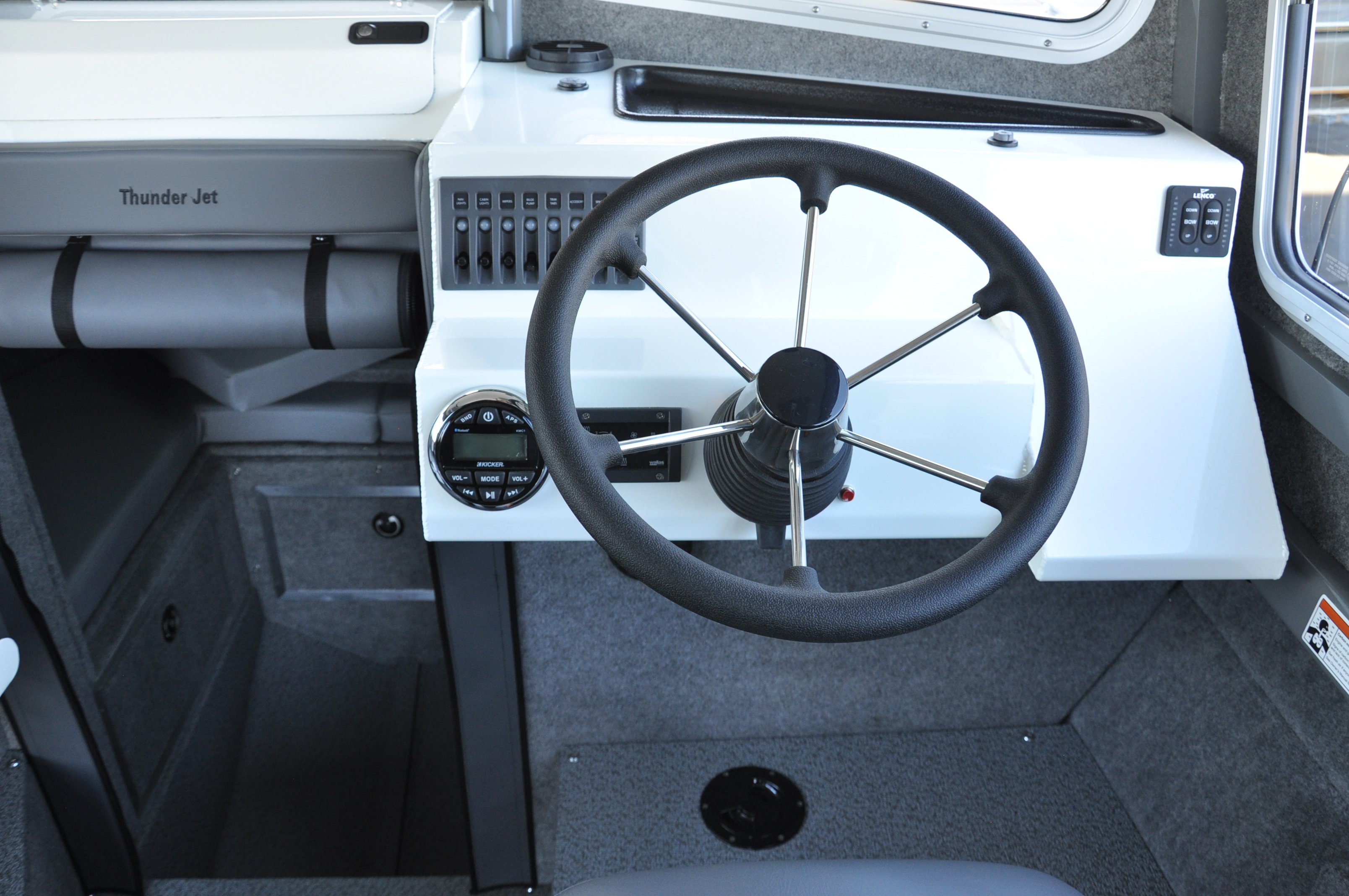

Hydraulic Steering w/ Tilt Helm

Premium Switch Panel & Electric Horn

Dual USB Charger

Premium Marine Wiring Harness w/ Water Tight Connections

Safety Hub Power Distribution Block

Transom Battery Tray

4-Way Selector Battery Switch

LED Navigation Lights Package

(2) LED Cockpit Courtesy Lights

LED Cockpit Flood Light

(2) Electric Bilge Pumps w/ Auto Float Switch

(3) Pantographic Self-Parking Windshield Wipers

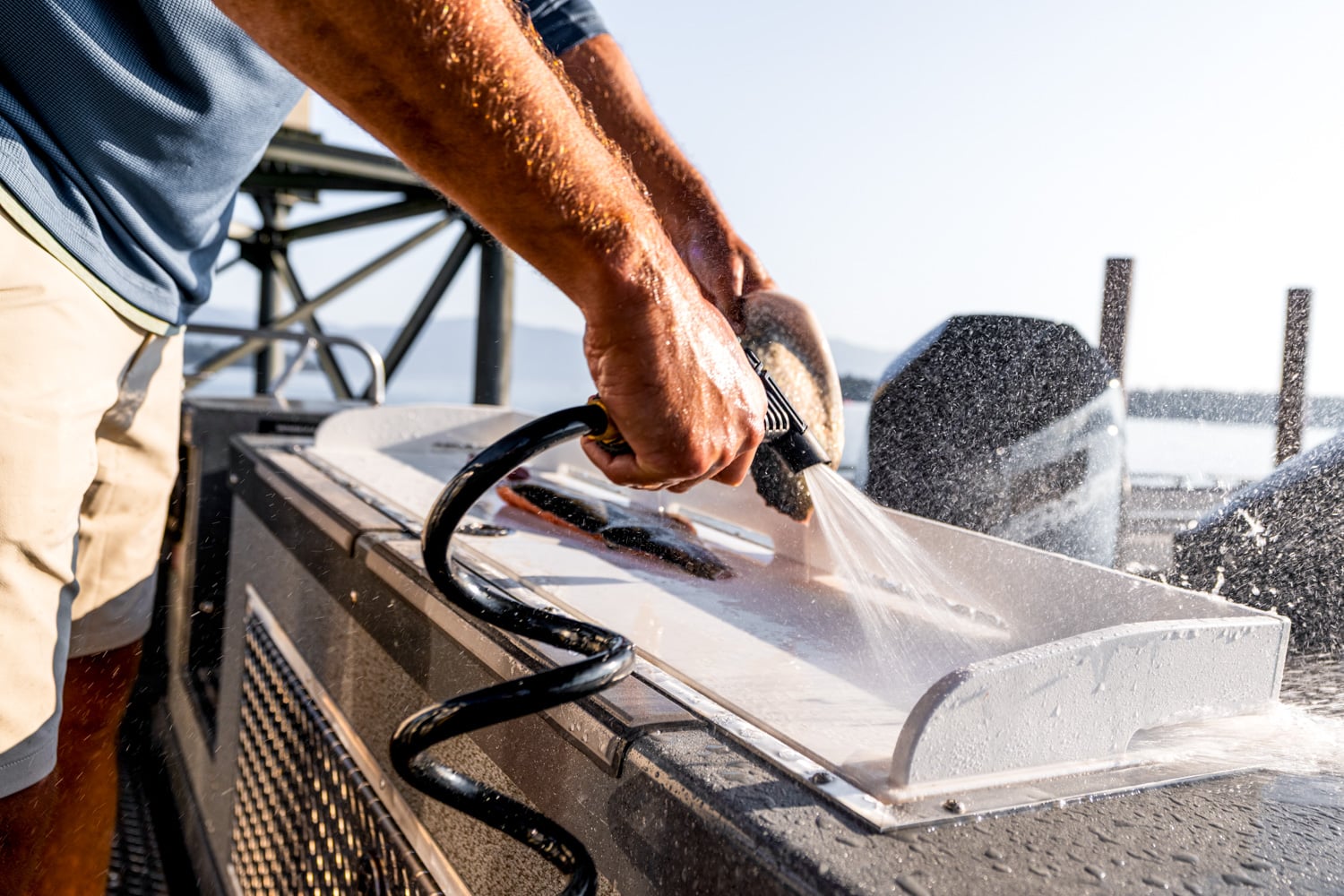

Raw Water Washdown System

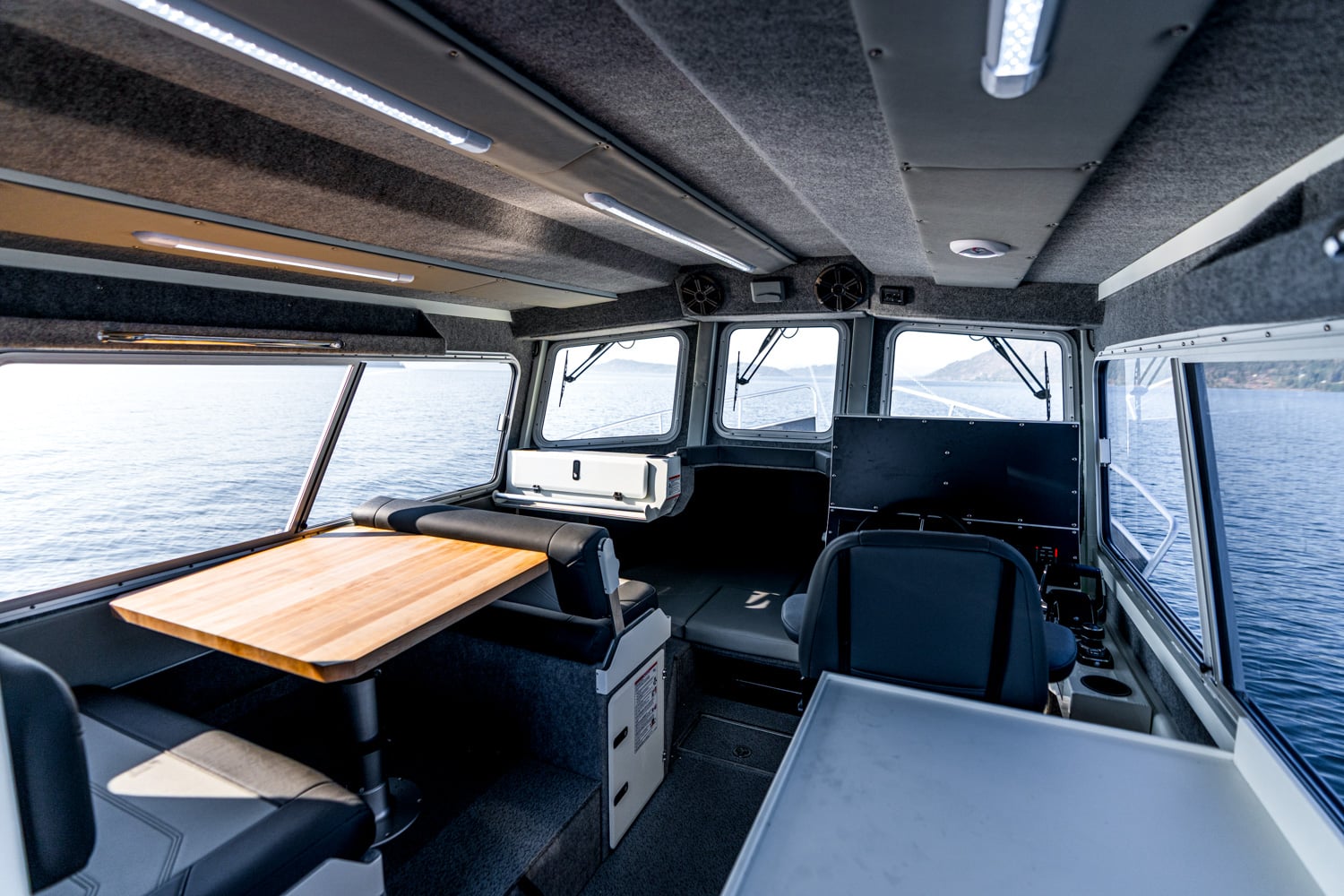

Standard Interior Features

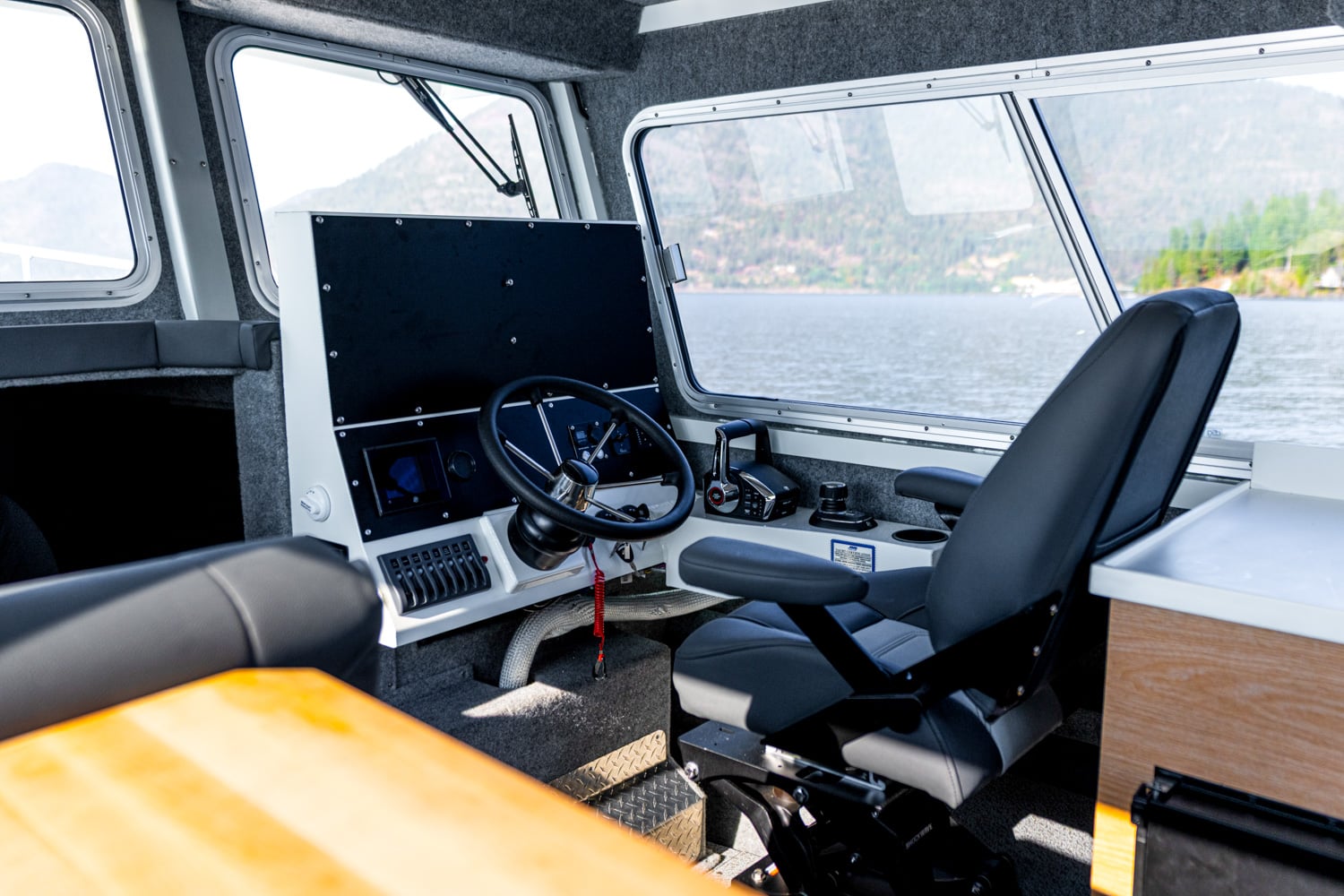

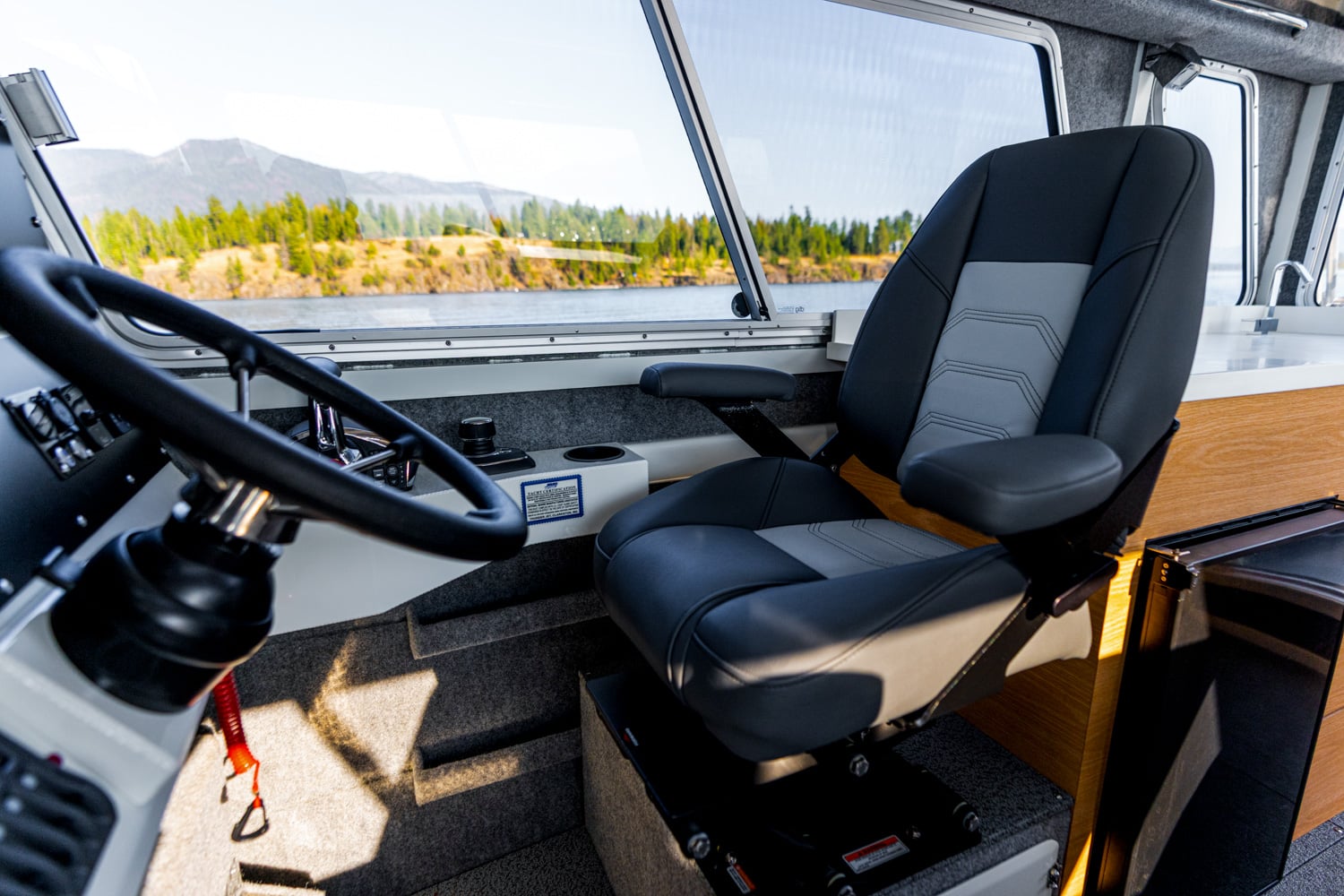

(2) Fully Adjustable Spring Ride Suspension Seats

(2) Storage Box Bench Seats w/ Removable Backrests

(2) Storage trays above side cabin windows

Locking Glove Box

Stainless Steel Rubber Coated Steering Wheel

Passenger Grab Rail

Overhead Grab Rails

(6) Cup Holders

Full Marine Carpeted Sound Dampening Side Walls

LED Red/White Dome Light

LED Strip Lights

Offshore Deck Hatch

V-berth w/ Cushions, Lights, Privacy Enclosure and Storage

Standard Color & Graphics

1/3 Hull Side Paint

2-Tone Exterior Cabin Side Paint

Painted Dash & Windshield

Raised Chrome Logos

Flat Vinyl Model Designators

EXTERIOR & STRUCTURE

Built to conquer the harshest environments & last a lifetime.

FISHING OPTIMIZED INTERIOR

MAKE IT YOUR OWN

Customize your Pilot to be the perfect boating experience.

Interior

Seating Options

Suspension seat (EA)
Heated seat (EA)
Bed rails

Mechanical

Engine Rigging

Mercury analog/mech pre rig 2 engine/1 station

Mercury analog/dts pre rig 1 engine/2 stations

Mercury analog/dts pre rig 2 engines/1 station

Mercury analog/dts pre rig 2 engines/2 stations

Suzuki pre rig analog 1 engine/2 stations

Suzuki pre rig analog 2 engines/1 station

Suzuki pre rig analog 2 engines/2 stations

Smartcraft gauge upgrade

VesselView® 502 upgrade single engine
Suzuki pre-rig analog 1 eng/1 station
Prop & PDI





Exterior

Top / Cabin

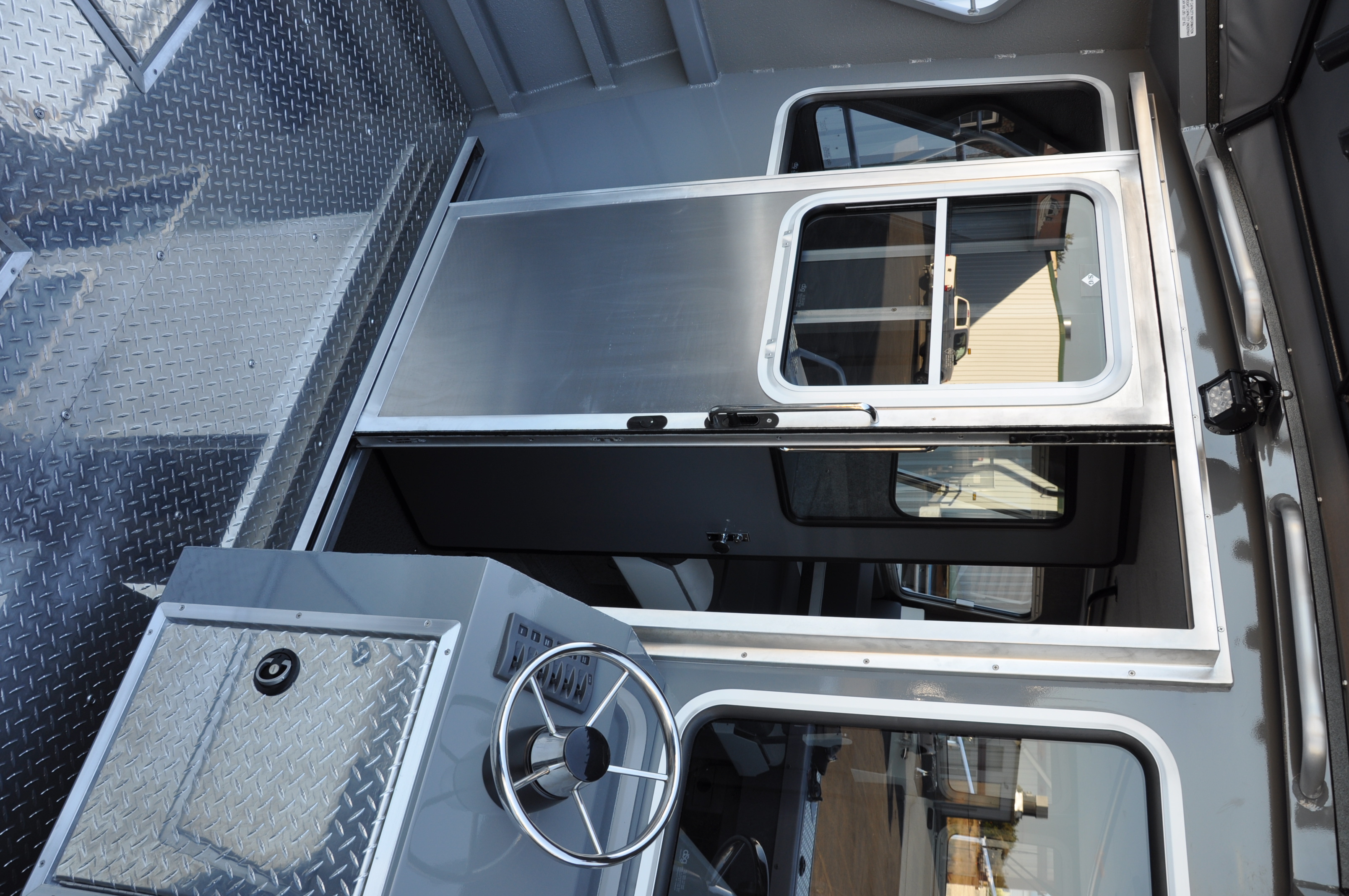

Sliding cabin door

V-Berth windows

Welded aluminum radar arch

Cabin roof ladder

Diamond tread roof panel



Stern

Welded twin engine bracket

Deluxe anglers package

Basic anglers package
Insulated transom fish box
Diamond tread fish box lid
