PURE TROLLING POWER

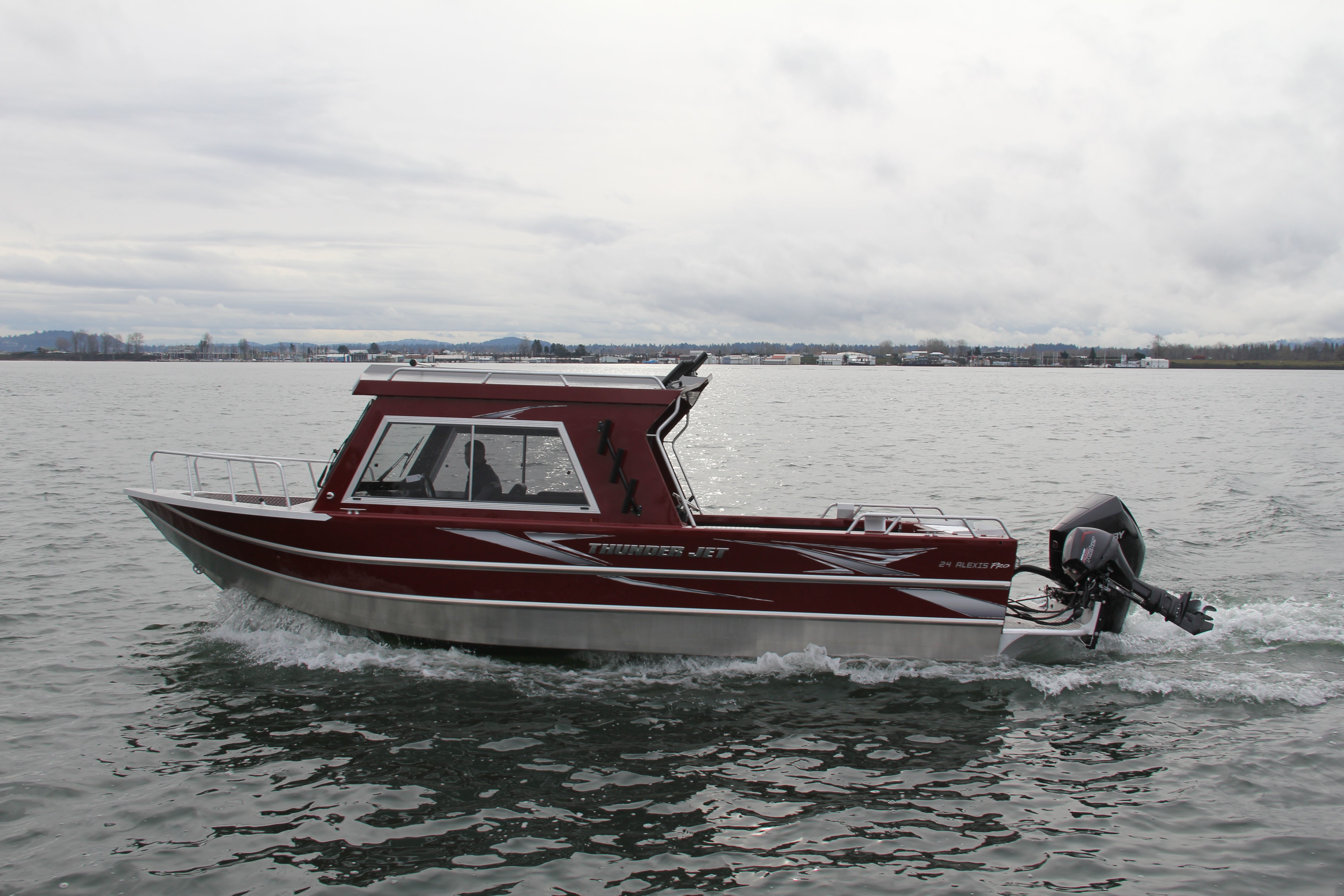

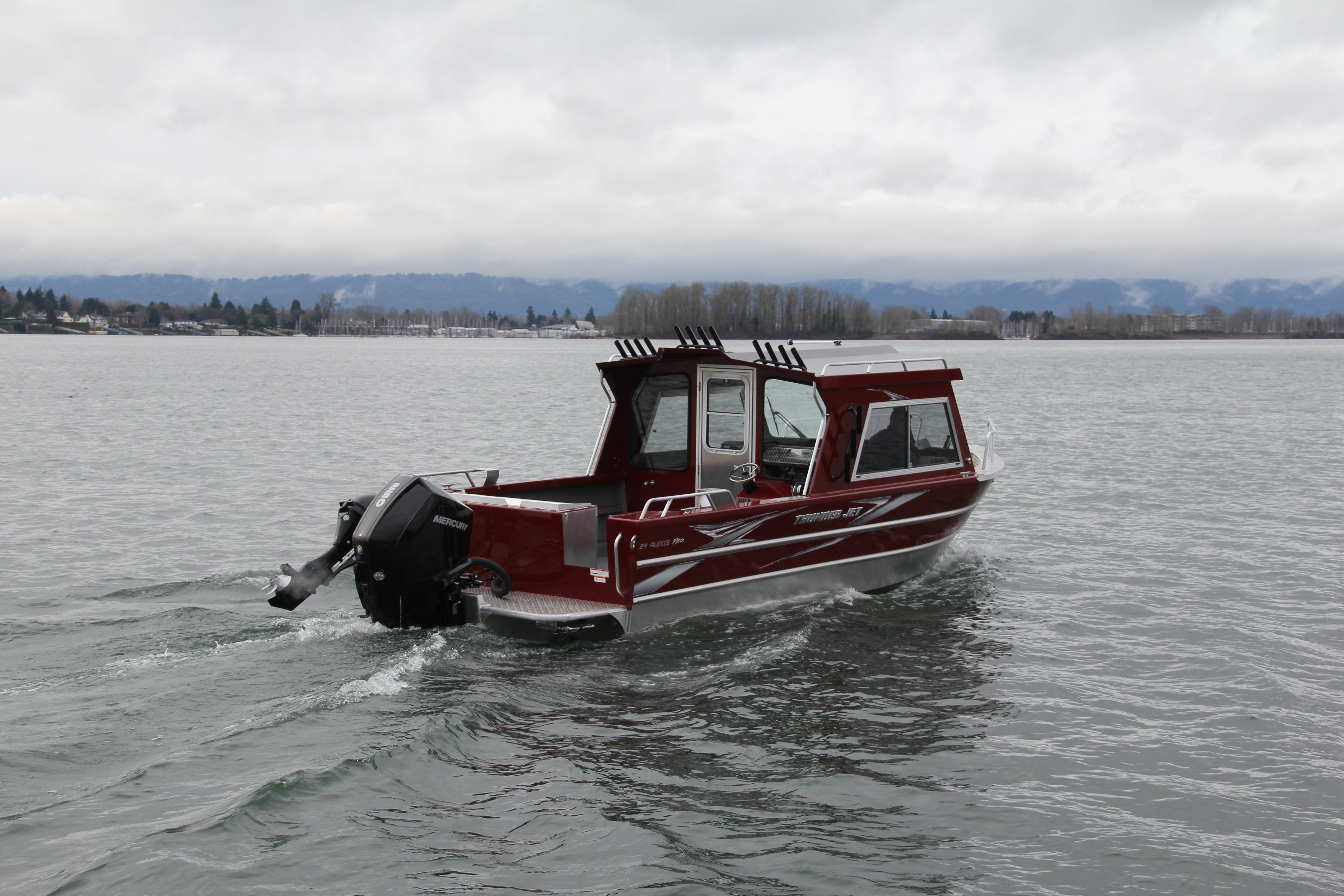

Built strong to troll big water for big fish, the Alexis Pro offers a full hardtop for the security and comfort your crew demand. Welded-in grab rails and a deep cockpit add to the safety, and generous storage holds all your tackle and gear. The heavy-gauge deep-V hull takes on the most challenging conditions with ease, opening up new fishing grounds for guides, pros, and recreational anglers alike.

FEATURES & SPECS


HIGHLIGHTS

  • All welded fishing boat
  • Full hardtop
  • Perfect trolling boat
  • Convenient storage for fishing equipment

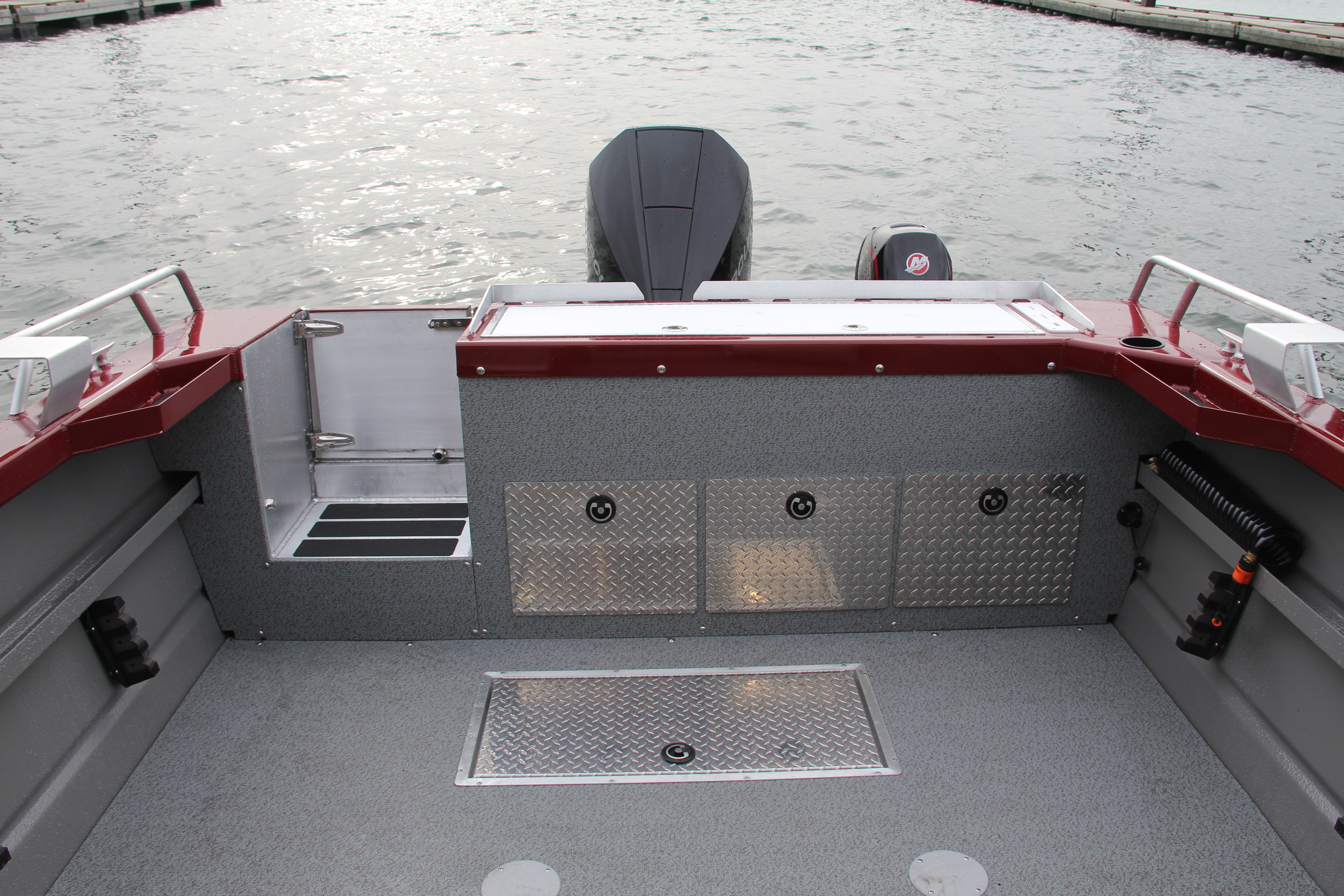

  • User friendly aft deck
  • Comfortable cabin for all weather conditions

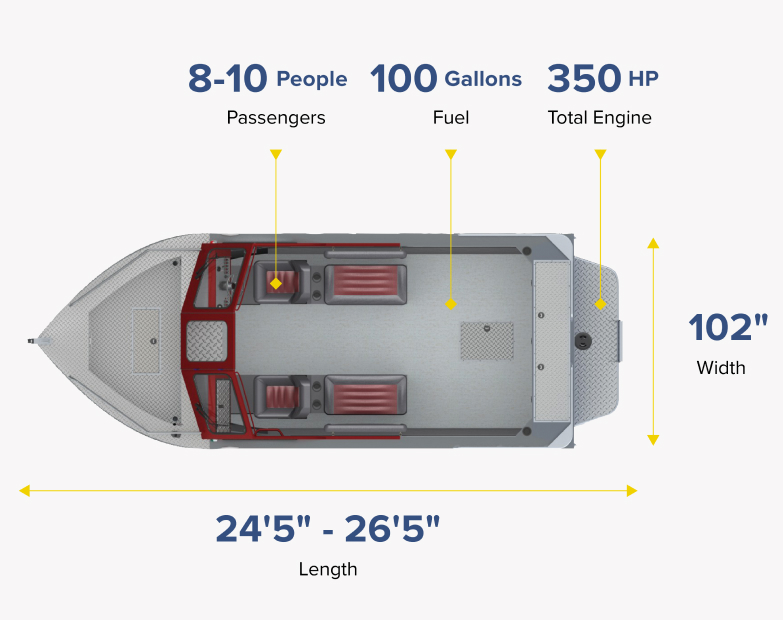

Base Boat Specifications - 22

Length 22'
L.O.A 24'5''
Beam Width 102''
Side Height 38''
Cockpit Depth 29.5''
Chine Width 88''
Bottom Width 93''
Minimum/Maximum HP 200 / 350
Max Persons Capacity 8
Interior Hardtop Height 74.5''
Fuel Capacity 100 USG
Motor Length 25''
Hull Deadrise 16° Progressive TJ-X High Performance Hull

Aluminum Thickness

Side 0.125'' / 5052 Aluminum Alloy
Bottom 0.190'' / 5086 Aluminum Alloy
Transom 0.250'' / 5052 Aluminum Alloy

Basic Power

Mercury 200XL 4 Stroke (22') / 225XL 4 Stroke (24')

Note: Does not include prop

Basic Trailer

EZ Loader 5700 lb. Galvanized Tandem Axle

Bunk Trailer Includes:

Torsion Suspension; 14" Wheels

Carpeted Bunks w/ Slick Bunk Caps

Plastic Fenders w/ Non-Skid Steps

Tongue Jack

Hydraulic Surge Disc Brakes

Standard Hull Features

Progressive Offshore Hull w/ Upswept Bow

Full Length Engineered Box Stringers

(4) Full Length Formed-In External Hull Stiffeners

Full Length Offshore 5'' Reverse Chine

Fully Welded Heavy-Duty Keel Guard

Welded Thru-Hull Fittings

(5) Welded 8'' Cleats

Wide Formed Gunnels

Welded Bow & Transom Eyes

Welded 14'' High Bow Rails

Double Walled Self-Draining Diamond Tread Drop Bow

Large Fully Welded Bow Drains

Locking Self-Draining Bow Locker

Welded Full Width Transom Platform w/ Undermount Telescoping     Ladder

Welded External Motor Bracket

Welded 6'' High Stern Rails

Welded Downrigger Mounting Pads

Transom Fish Locker w/HPDE Lid and SS Locks, HDPE Tool Holder

Welded Aft Cockpit Gunnel Trays

Full Length Welded Hard Top Grab Rails

Welded 3 Piece Walk-Thru Windshield

Starboard Transom Door

Self-Bailing Cockpit

Standard Rigging Features

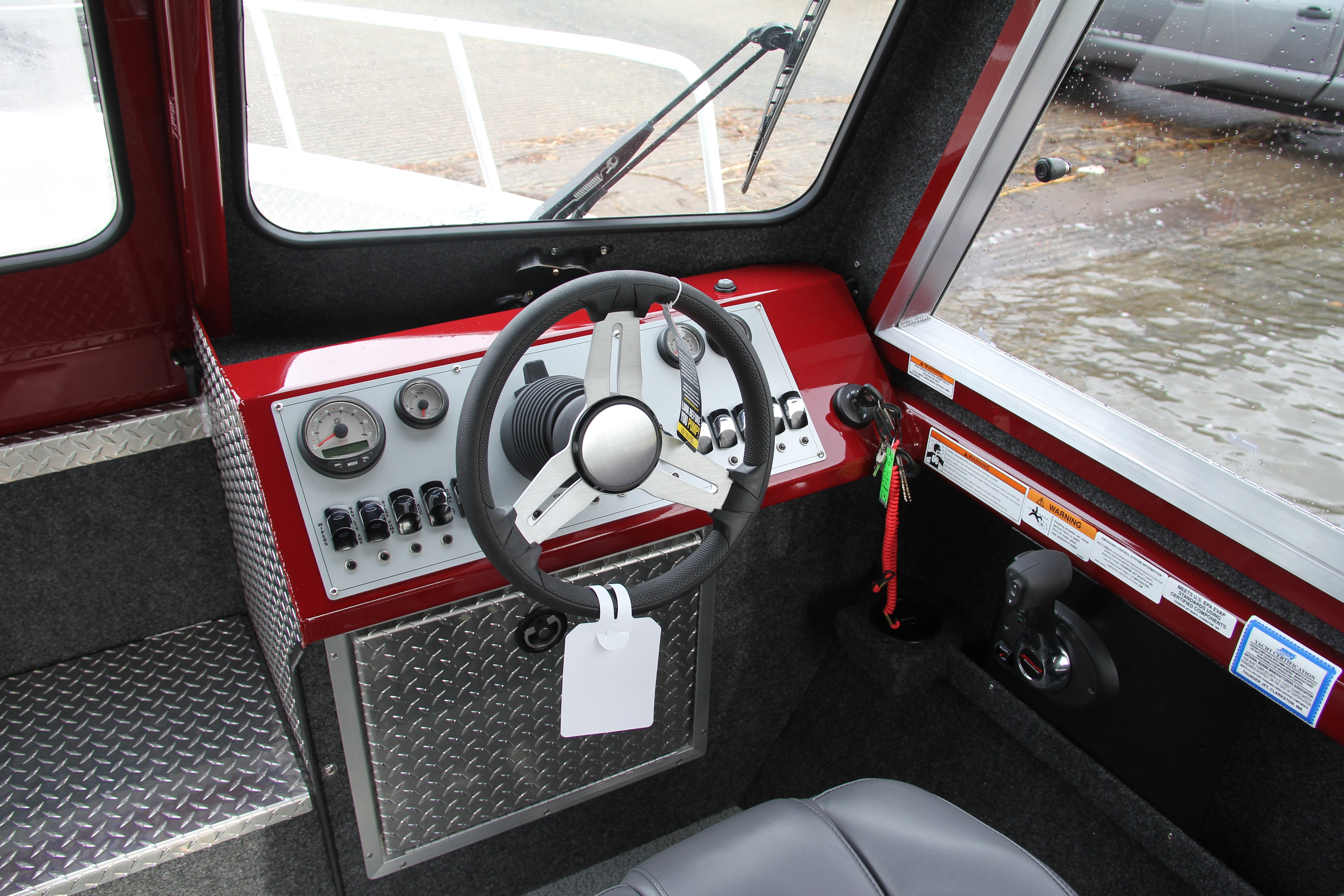

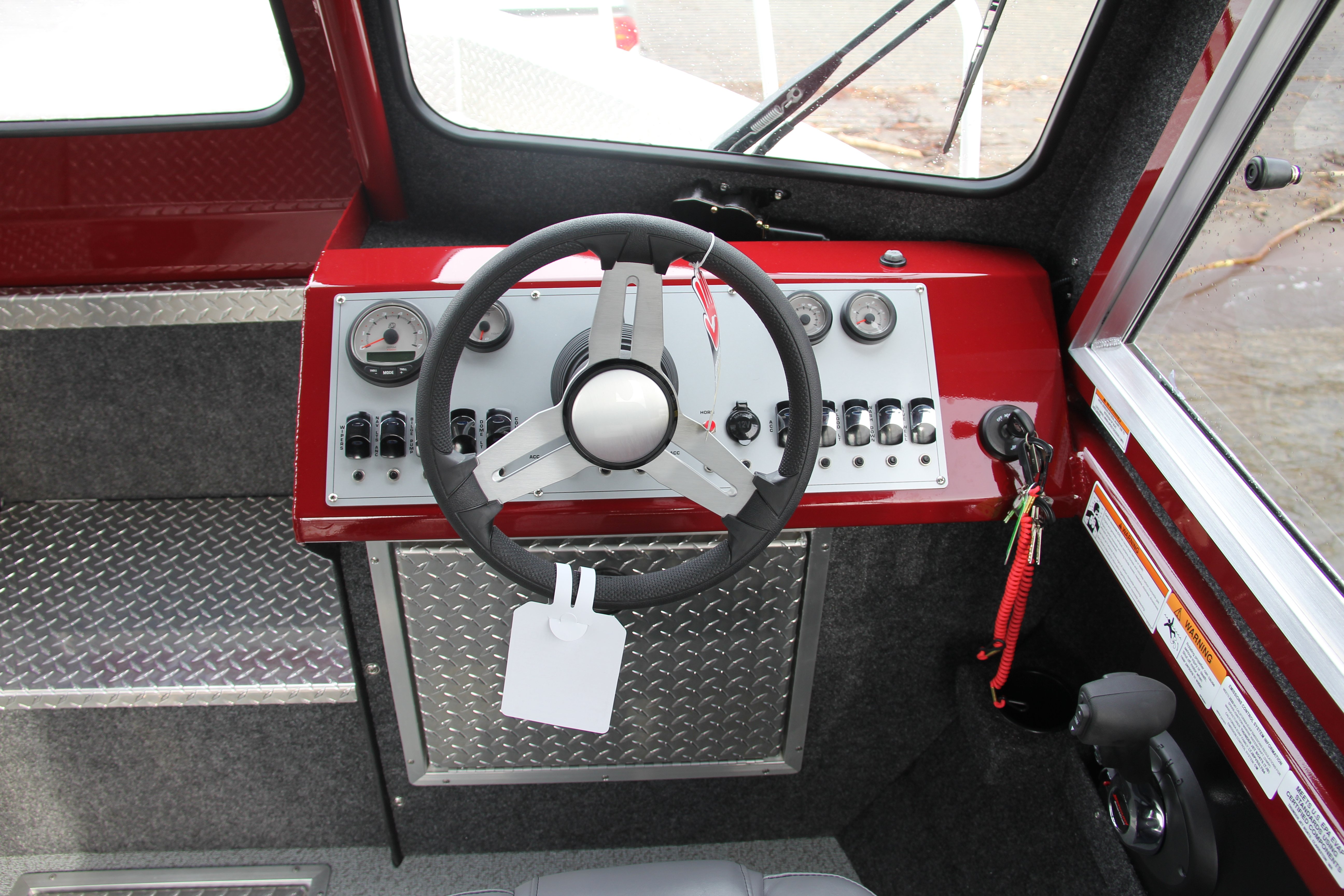

Analog Tach, Fuel, Trim & Hour Meter Instrumentation

Mechanical Shift/Throttle

Hydraulic Steering w/ Tilt Helm

Premium Switch Panel & Electric Horn

Dual USB Charger

LED Navigation Lights Package

Premium Marine Wiring Harness w/ Water Tight Connections

Safety Hub Power Distribution Block

Transom Battery Tray

Electric Bilge Pump w/ Auto Float Switch

Conduit Under Bow Deck for Running Wiring

Pantographic Self-Parking Driver & Passenger Side Windshield Wipers

Base Boat Specifications - 24

Length 24'
L.O.A 26'5''
Beam Width 102''
Side Height 38''
Cockpit Depth 29.5''
Chine Width 88''
Bottom Width 93''
Minimum/Maximum HP 225 / 350
Max Persons Capacity 10
Interior Hardtop Height 74.5''
Fuel Capacity 100 USG
Motor Length 25''
Hull Deadrise 16° Progressive TJ-X High Performance Hull

Standard Interior Features

(2) Premium Style Seats on Pedestals w/ Locking Swivel

Adjustable Driver’s Seat Slider

(2) 39" Storage Box Bench Seats w/ Removable Backrests

Drop Curtain for Hard Top w/ Roll Up Center Door

Locking Glove Box

Under Dash Storage Tray

Stainless Steel Rubber Coated Steering Wheel

Welded Passenger Grab Rail

Welded High Mount Windshield Grab Rails

Hard Top Storage Trays w/ Welded Grab Rails

Locking Aft Cockpit Floor Storage Compartment

Locking Fwd Cockpit Floor Storage Compartment

(3) Locking Interior Transom Access Hatches

Diamond Tread Bow Step w/ Storage

(2) Full Length Welded Side Storage Trays

(7) Cup Holders

(4) Interior Rod Holders

Marine Carpeted Cabin Side Walls

Premium Marine Vinyl Decking

Vinyl Wrapped Transom

Standard Color & Graphics

1/3 Hull Side Paint

Color Matched Painted Dash, Windshield and Hardtop

Raised Domed Logos

Flat Vinyl Model Designators

Hippo-lined Cockpit (from drop curtain to transom)

Hippo-lined Roof

EXTERIOR & STRUCTURE

Built to conquer the harshest environments & last a lifetime.

FISHING OPTIMIZED INTERIOR

MAKE IT YOUR OWN

Customize your Alexis Pro to be the perfect boating experience.

Interior

Seating Options

Fish seat arm rests (PR)

Suspension seat (EA)

Shock absorber seat pedestal (EA)

Smooth Moves seat pedestal (EA)

Heated seat (EA)

Bed rails

Aft storage bench seat cushions

Shockwave suspension pedestal

Mechanical

Engine Rigging

Mercury analog/DTS pre-rig 1 eng/1 sta

Smartcraft gauge upgrade

VesselView® 502 upgrade single engine

Suzuki pre-rig analog 1 eng/1 station

Prop & PDI

Mercury analog/mechanical pre rig 2 eng/1 sta

Mercury analog/DTS pre rig 1 eng/2 sta

Suzuki pre rig digital 1 eng/1 sta

Suzuki pre rig digital 1 eng/2 sta

Exterior

Top / Cabin

Hardtop side-mount rod holders

Hardtop center top-mount rod holders

Alaskan bulkhead

Alaskan package

Radar mount

Stern

Additional downrigger mounting pads (x2)

Deluxe anglers package

Insulated transom fish box

Diamond tread fish box lid

3/4 Platform w/undermount ladder

Welded transom kicker bracket

Welded platform kicker bracket
