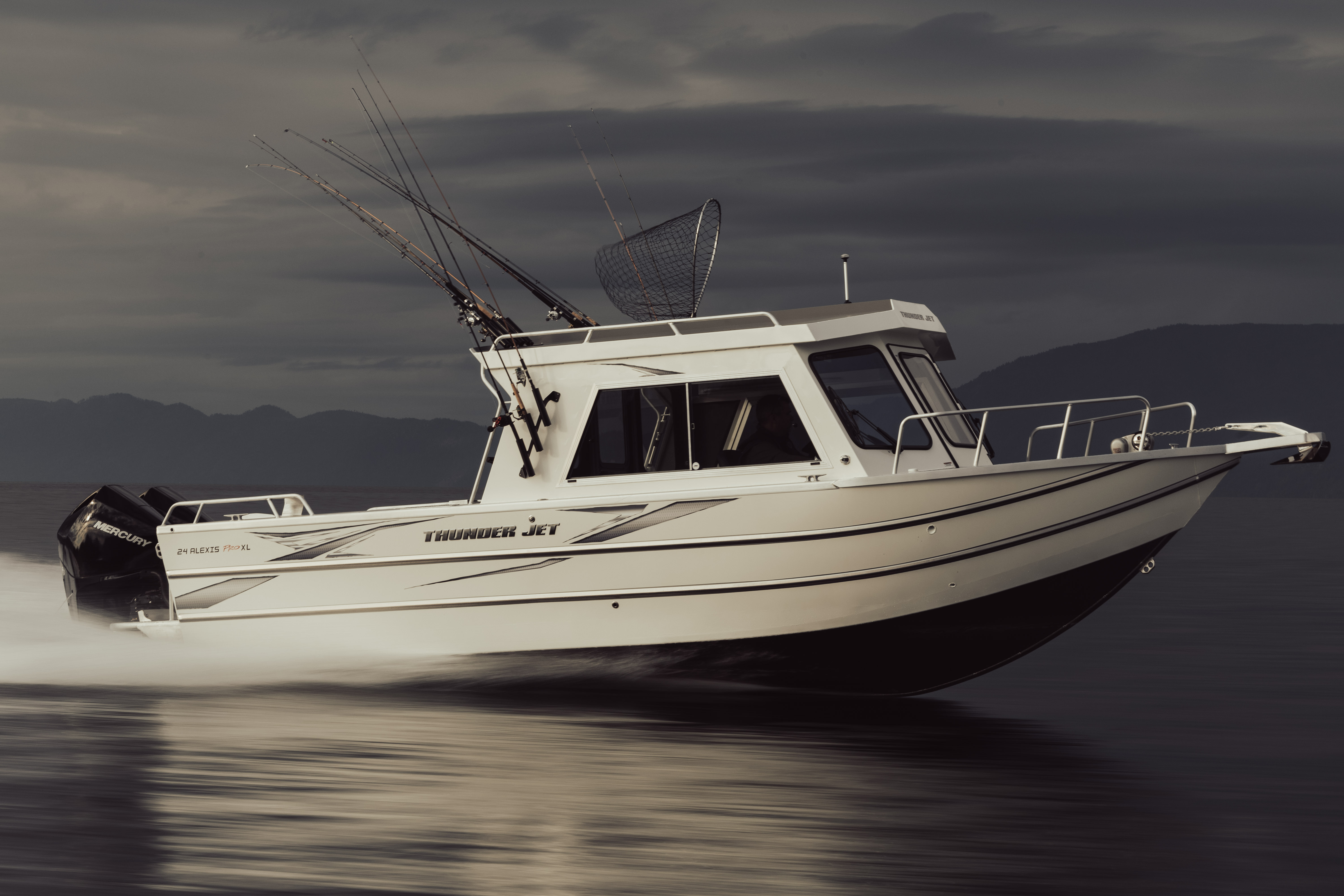

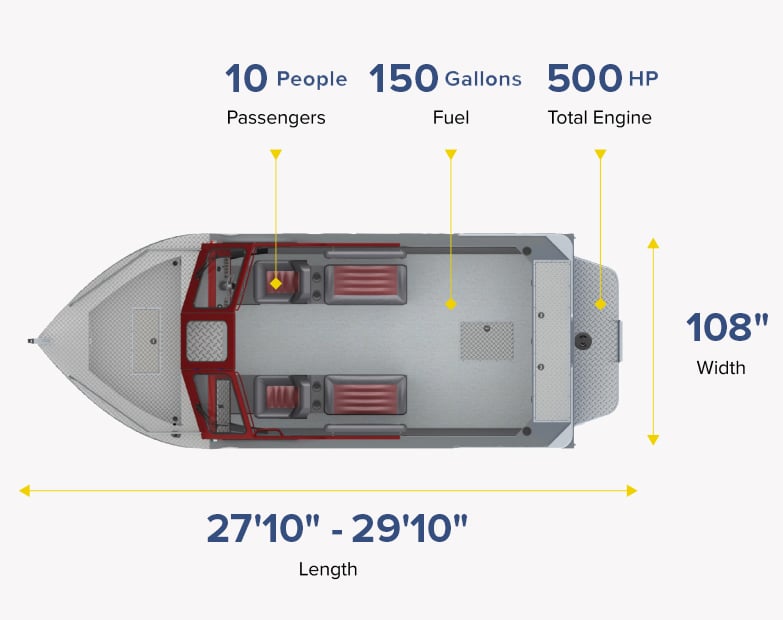

Base Boat Specifications - 24
| Length | 24' |
|---|---|
| L.O.A | 27'10'' |
| Beam Width | 108'' |
| Side Height | 39.5'' |
| Cockpit Depth | 29.5'' |
| Chine Width | 89.5'' |
| Minimum/Maximum HP | 225 / 400 |
| Max Persons Capacity | 10 |
| Fuel Capacity | 150 USG |
| Motor Length | 25'' |
| Hull Deadrise | 16° Progressive TJ-X High Performance Hull |
Aluminum Thickness
| Side | 0.125'' / 5052 Aluminum Alloy |
|---|---|
| Bottom | 0.250'' / 5086 Aluminum Alloy |
| Transom | 0.250'' / 5052 Aluminum Alloy |
Basic Power
Mercury 225XL DTS 4 Stroke (24')
Mercury 225XL DTS 4 Stroke (Twin) (26')
Note: Does not include prop

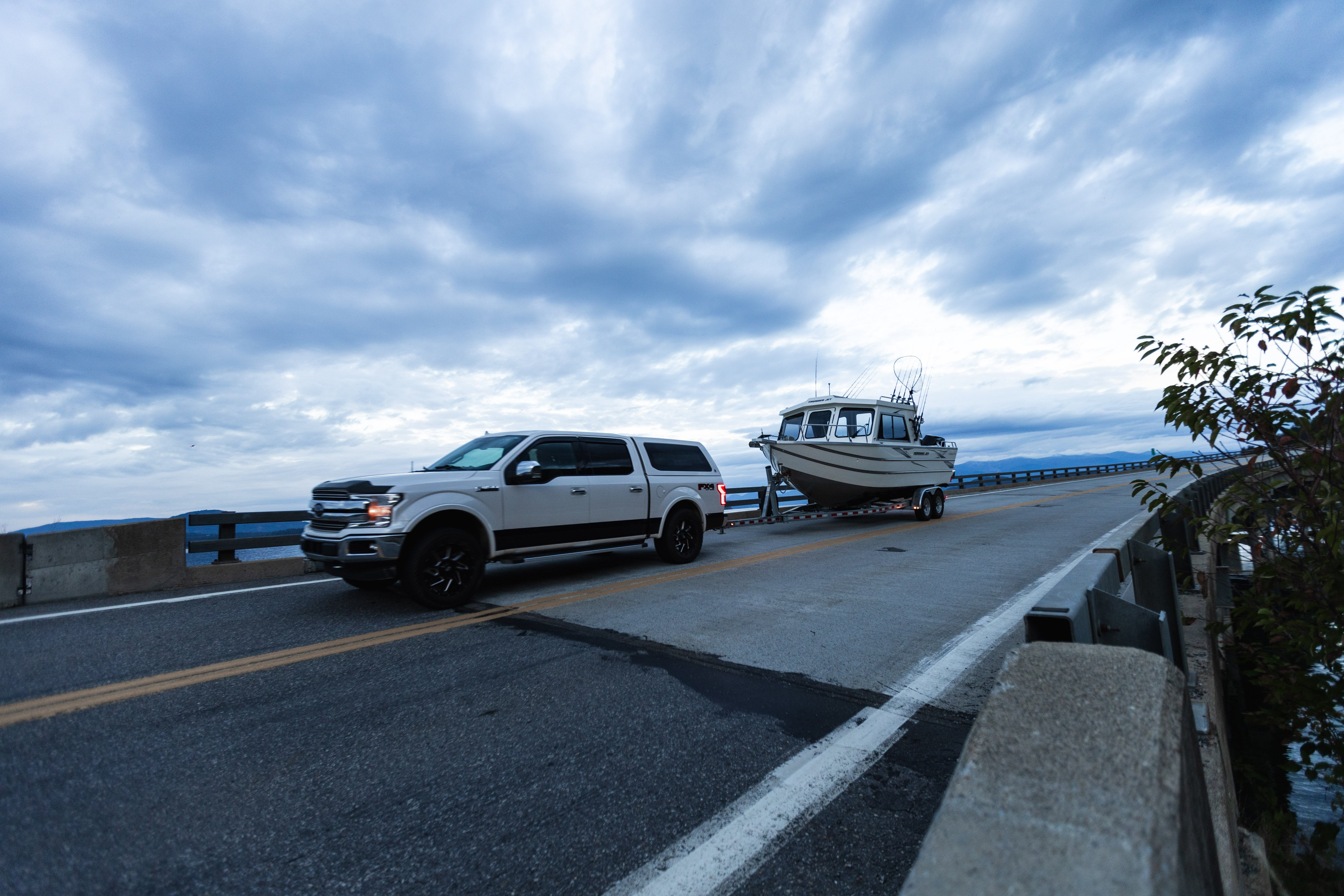

Basic Trailer
EZ Loader 8500 lb. Galvanized Tandem Axle
Bunk Trailer Includes:
Torsion Suspension
Adjustable Frame Construction
Dual Bunks w/Bunk Skids
Fenders w/Extra Large Non-Skid Steps
Tongue Jack; 15" Wheels
Electric Drum Brakes
Standard Hull Features
Extended Running Surface Bottom

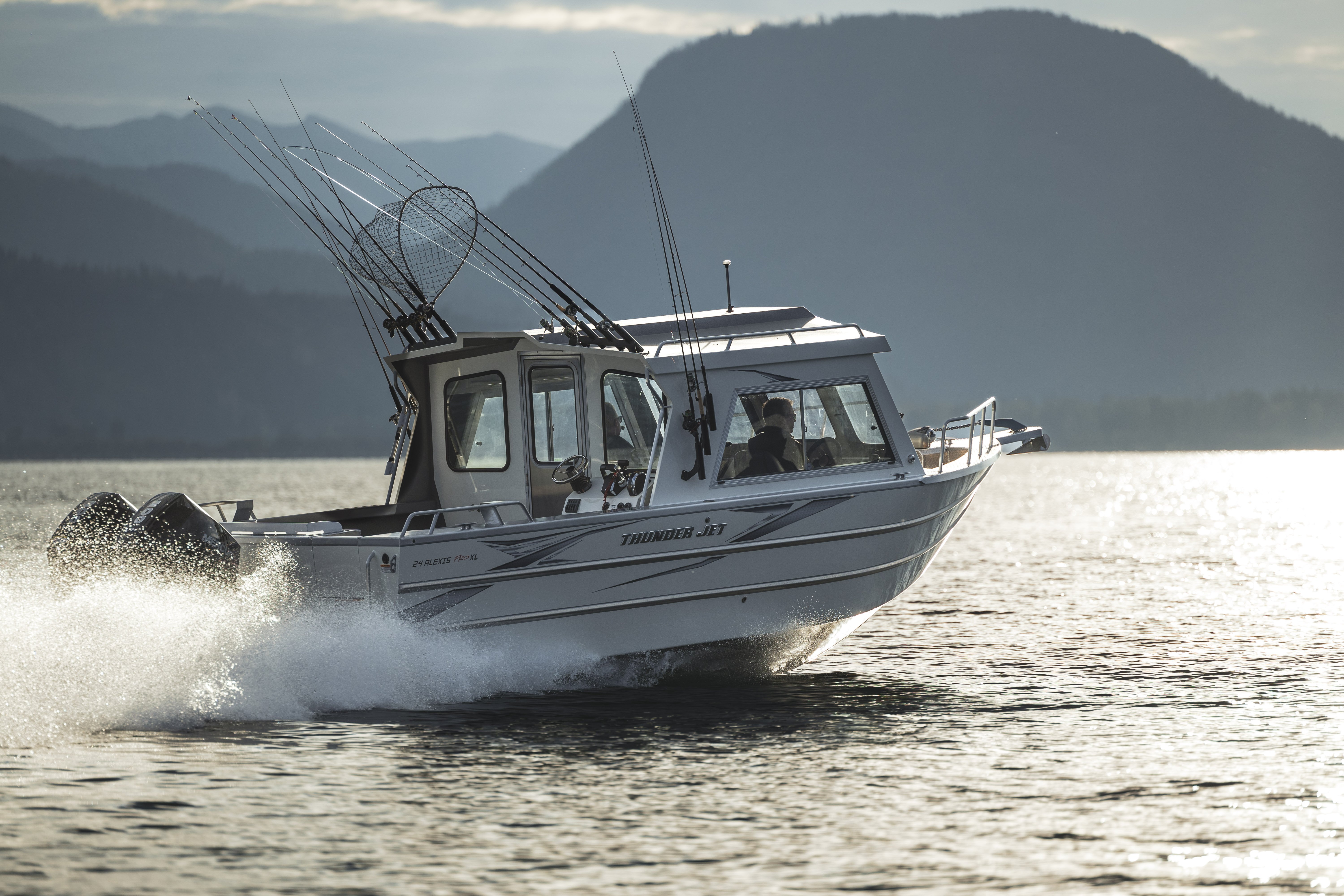

Progressive Offshore Hull w/ Upswept Bow
Full Length Engineered J - Stringers
(4) Full Length Formed-In External Hull Stiffeners
Full Length Offshore 5” Reverse Chine
Fully Welded Heavy-Duty Keel Guard
(7) Welded 10” Cleats
Wide Formed Gunnels
Welded Bow & Transom Eyes
Self-Draining Diamond Tread Drop Bow
Welded 14” High Bow Rails
Large Fully Welded Bow Drains
Locking Self-Draining Bow Locker

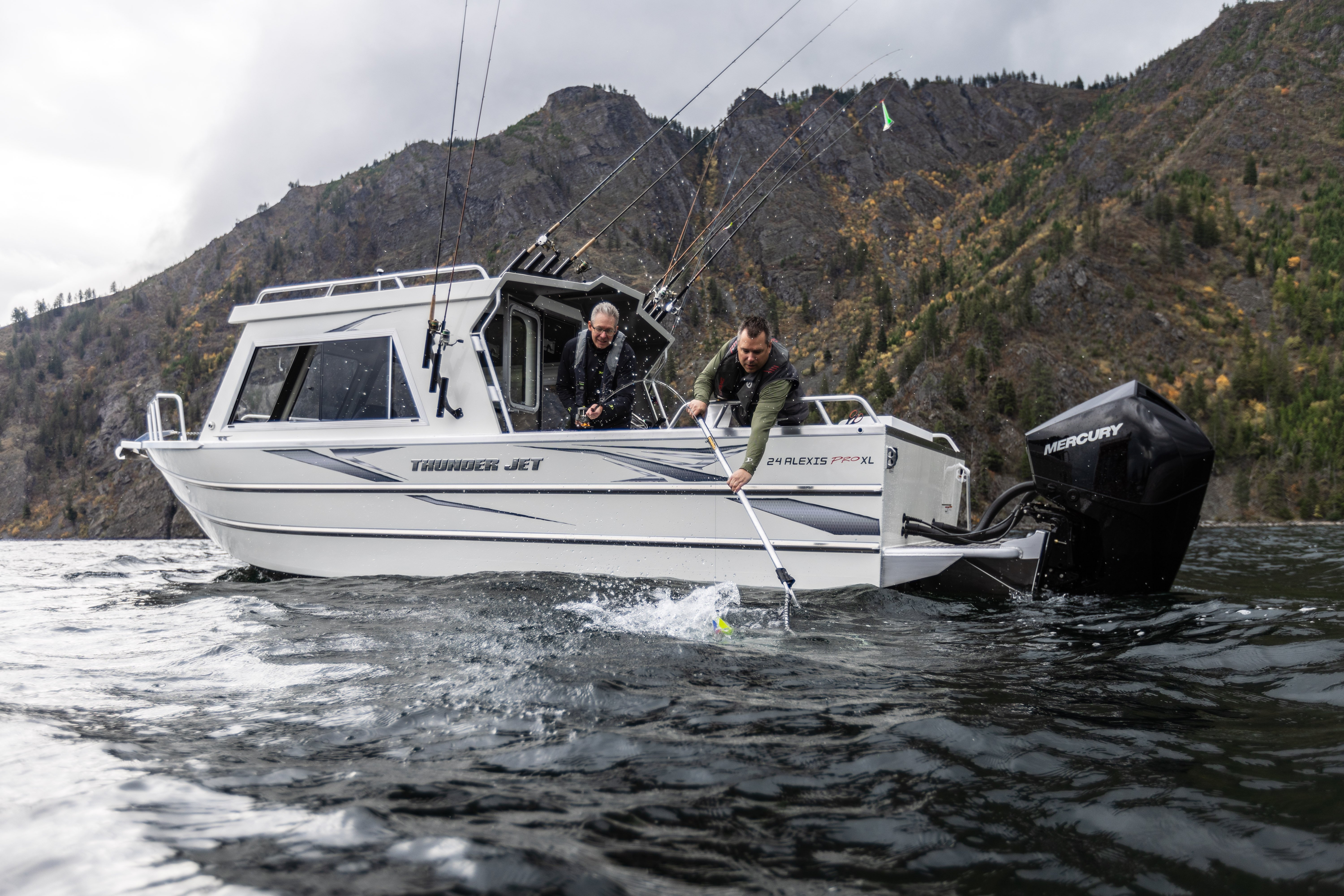

Welded 6” High Stern Rails
Welded Downrigger Mounting Pads
Full Width Transom Platform w/ Undermount Ladder
Welded External Motor Bracket w/ Platform Kicker Bracket
Rear Fill Gas Tank

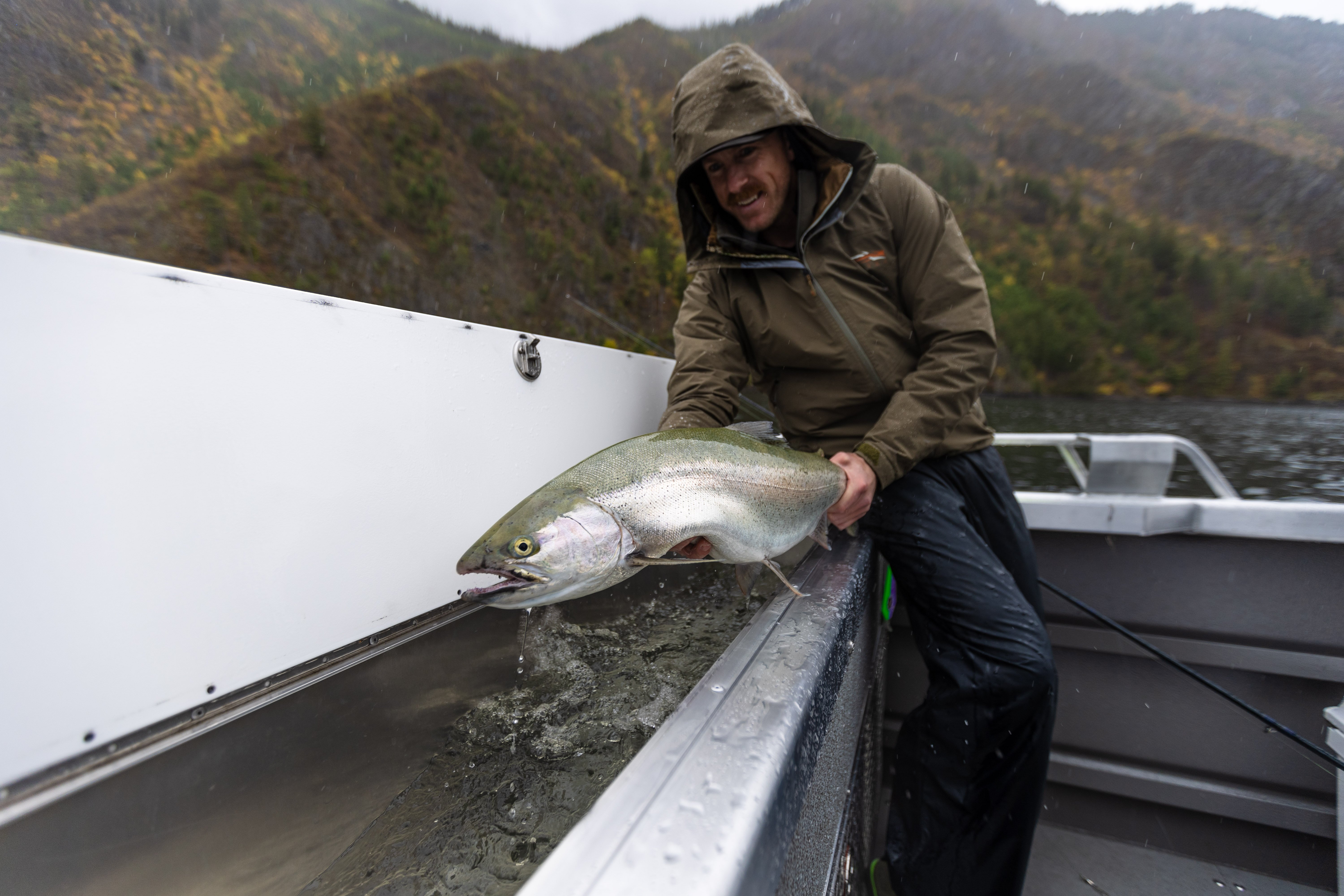

Insulated Locking Transom Fish Box w/HDPE Lid & Backsplash
Welded Aft Cockpit Gunnel Trays
Full Length Welded Hard Top Grab Rails
Welded 3 Piece Walk-Thru Windshield
Starboard Transom Door
Self-Bailing Cockpit
Non-Skid Aluminum Cockpit Flooring
Integrated Cockpit Side Tray/ Toe Hold
Welded Port Net Holder
Hardtop Side Mount Rod Holder P/S
Standard Rigging Features
Vessel View Engine Monitor Instrumentation
DTS Shift/Throttle
Hydraulic Steering w/Tilt Helm
Premium Switch Panel & Electric Horn
Dual USB Charger
LED Navigation Lights Package
Raw Water Washdown
Electrically Actuated Trim Tabs
High‑Output Cockpit Flood Light
Electric Aft & Fwd Bilge Pumps w/ Auto Float
Conduit Under Bow Deck for Running Wire
Pantographic Self-Parking Windshield Wipers

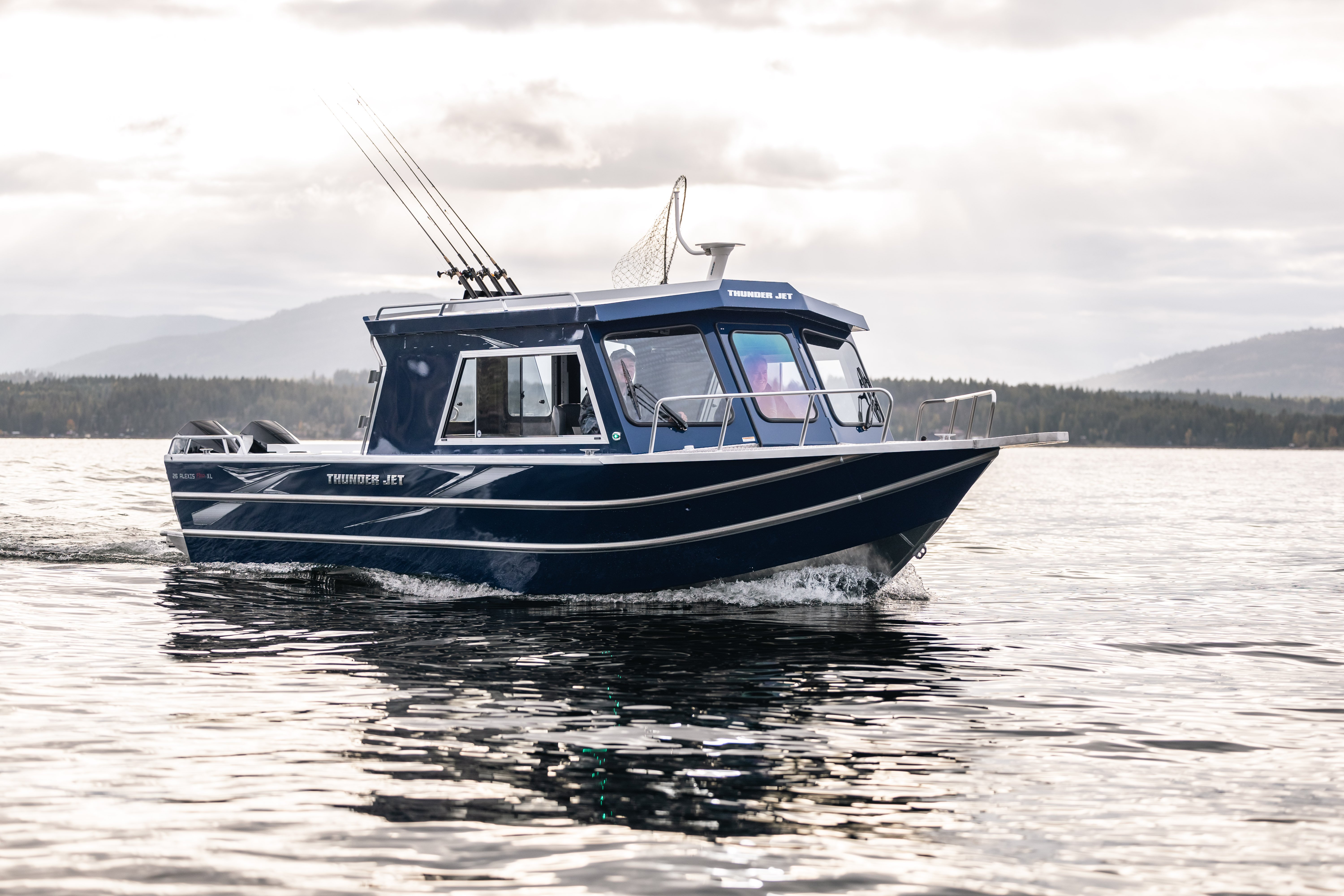

Base Boat Specifications - 26
| Length | 26' |
|---|---|
| L.O.A | 29'10'' |
| Beam Width | 108'' |
| Side Height | 39.5'' |
| Cockpit Depth | 29.5'' |
| Chine Width | 89.5'' |
| Minimum/Maximum HP | 350 / 500 |
| Max Persons Capacity | 10 |
| Fuel Capacity | 150 USG |
| Motor Length | 25'' |
| Hull Deadrise | 16° Progressive TJ-X High Performance Hull |
Standard Interior Features
(2) Premium Seats on Pedestals w/Locking Swivel
Adjustable Driver's Seat Slider
(2) Storage Box Bench Seats w/Removable Backrests
Drop Curtain for Hard Top w/ Roll Up Center Door

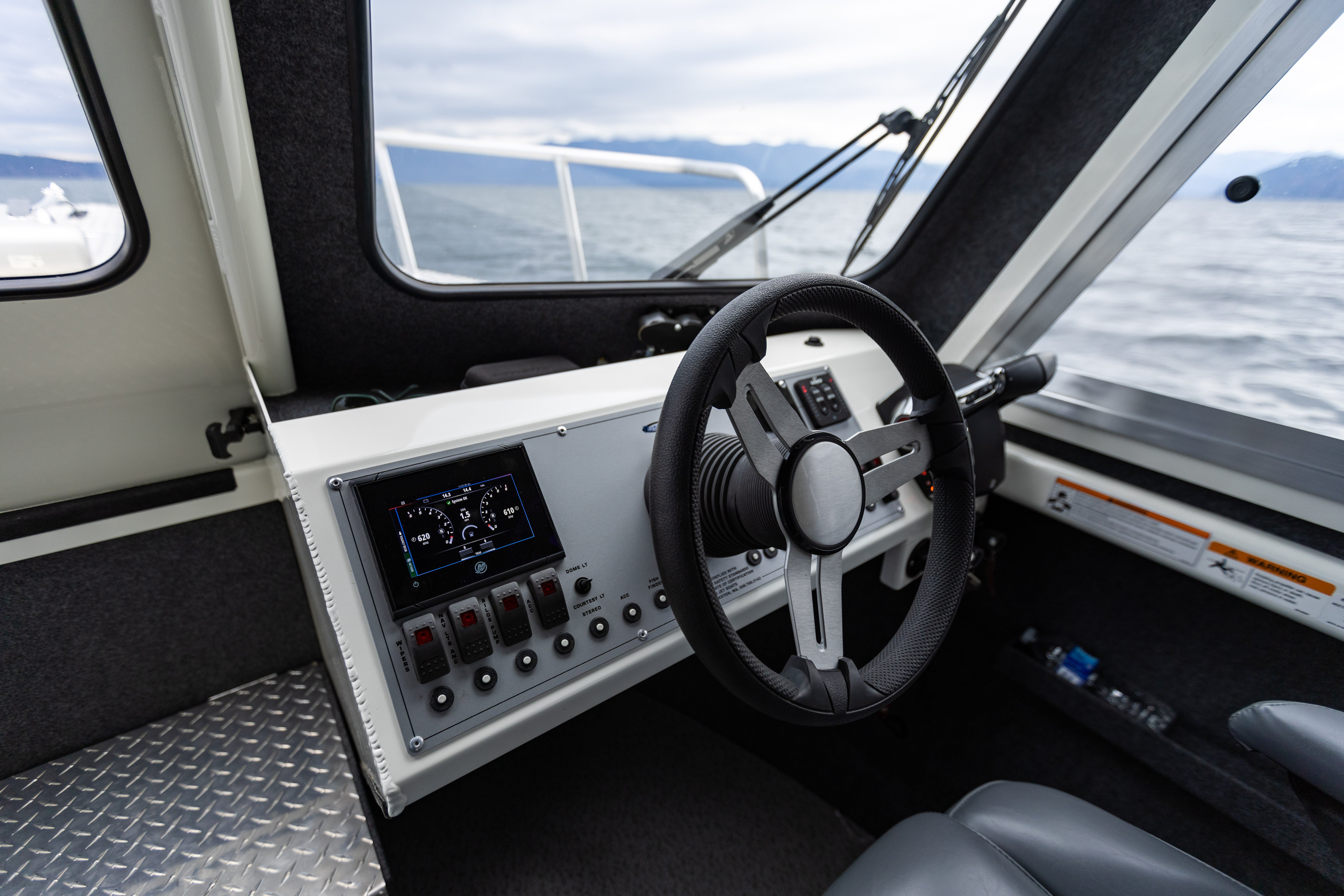

Enhanced Helm Design w/ Electronic Mounting Panel w/ Flush Mount Capability
Integrated Overhead Compartments Above Helm and Passenger Dash for Electronics & Accessories
Under Dash Storage Tray
Welded Passenger Grab Rail
Hard Top Storage Trays w/ Welded Grab Rails
Locking Aft Cockpit Floor Storage Compartment
Locking Fwd Cockpit Floor Storage Compartment
(1) Locking Interior Transom Access Hatch
Diamond Tread Bow Step w/ Storage
(2) Full Length Welded Side Storage Trays
(7) Cup Holders
Marine Carpeted Cabin Side Walls
Supersede Composite Floors with Marine Vinyl
Vinyl Wrapped Supersede Composite Transom
Standard Color & Graphics
1/3 Hull Side Paint w/ Upgraded Graphics Package
Color Matched Painted Dash, Windshield and Hardtop
Speckled Painted Gunnels
Hippo-lined Cockpit (from drop curtain to transom)
Hippo-lined Roof
Optional Features
Alaskan Bulkhead w/ Swing Door

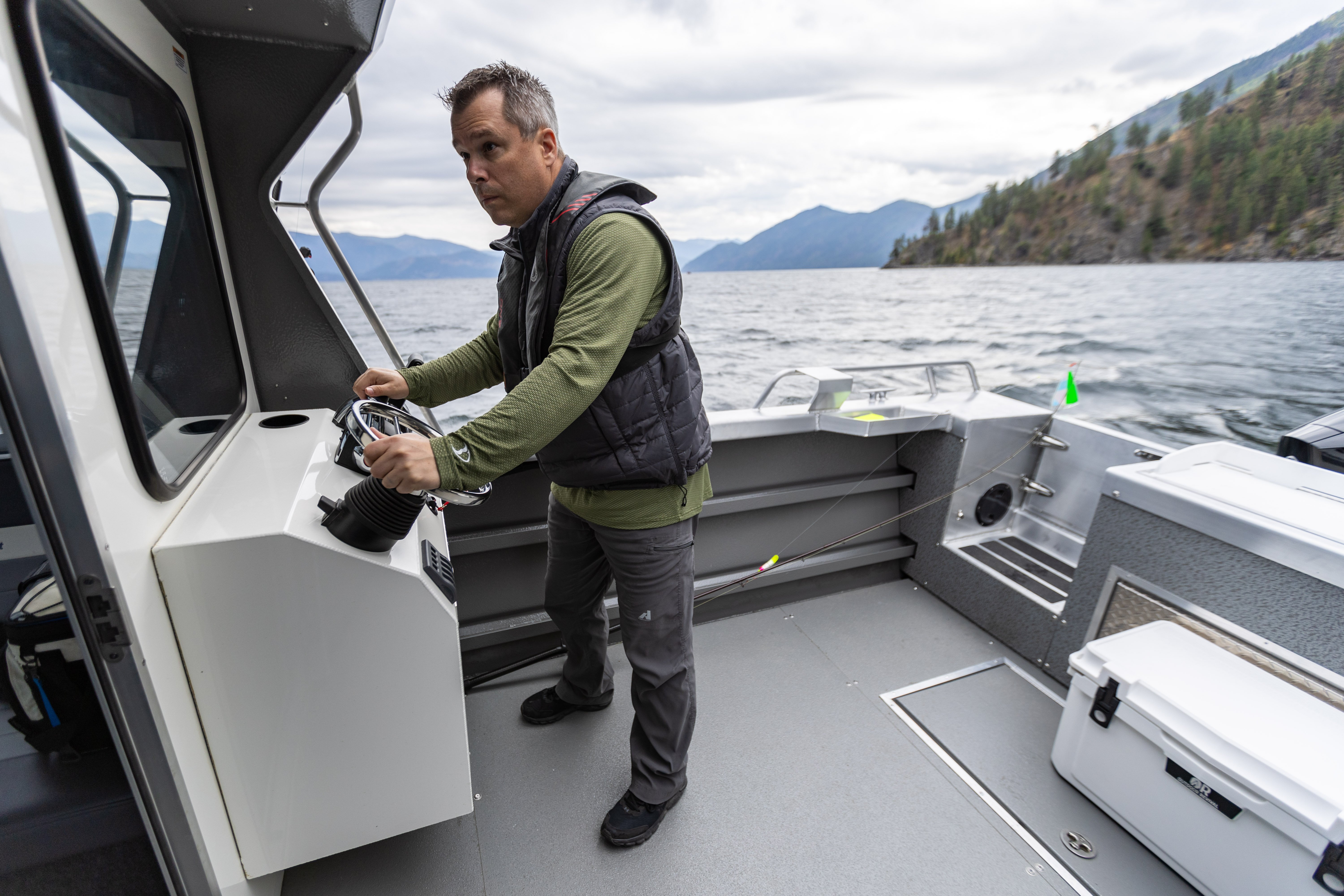

Auxiliary Steering Station
See Dealer for Additional Options

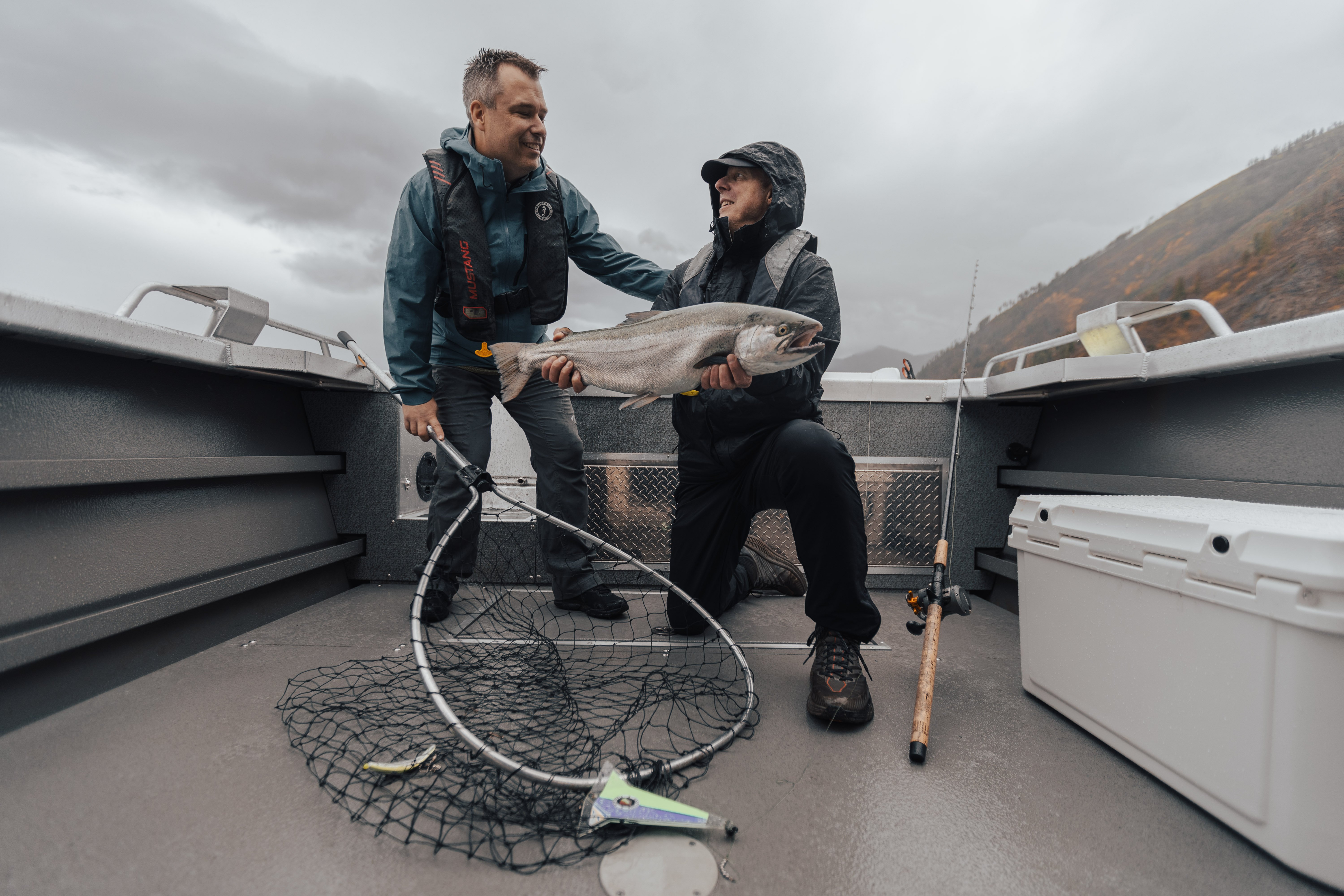

AFT FISHING DECK

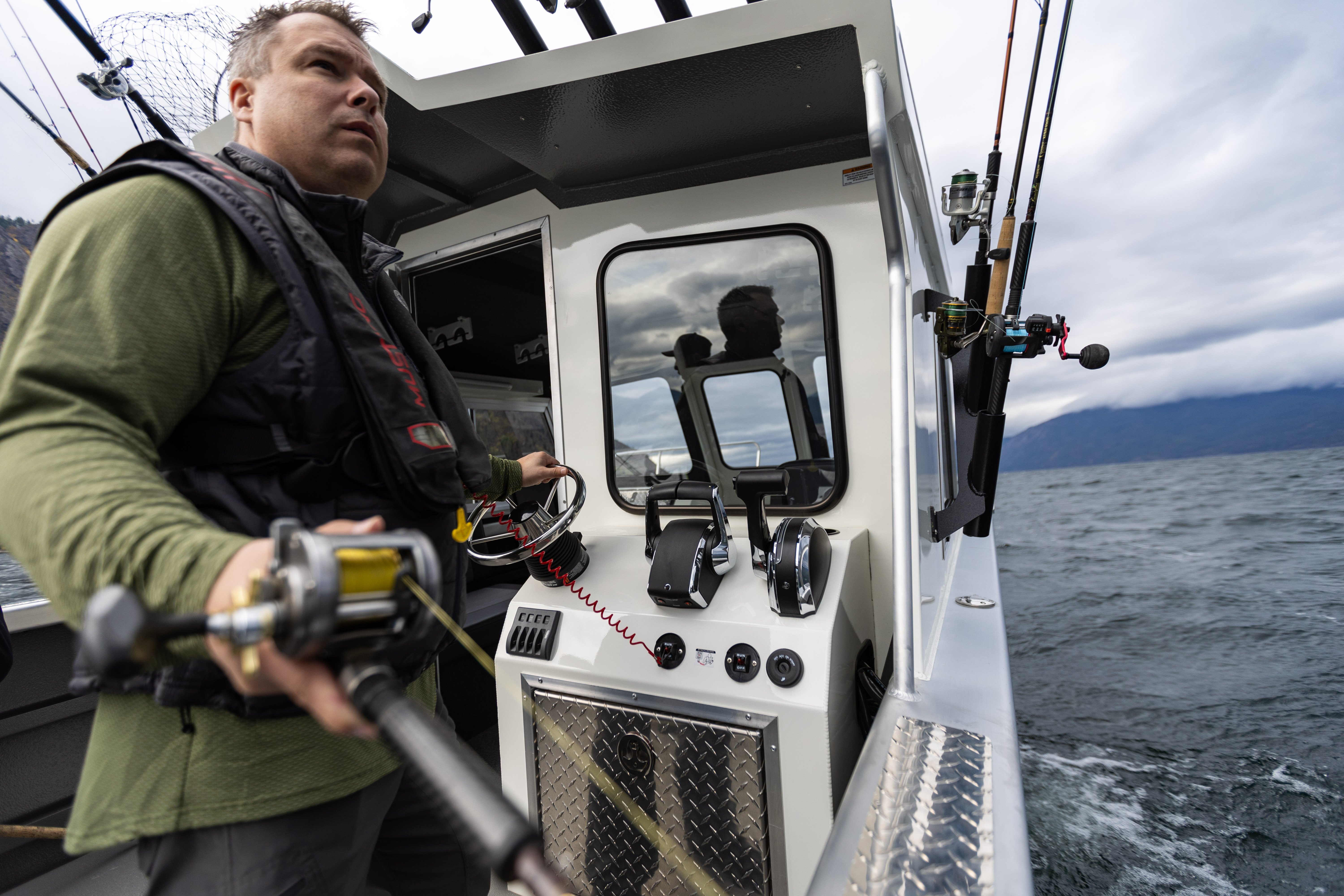

AUXILIARY COMMAND CONSOLE

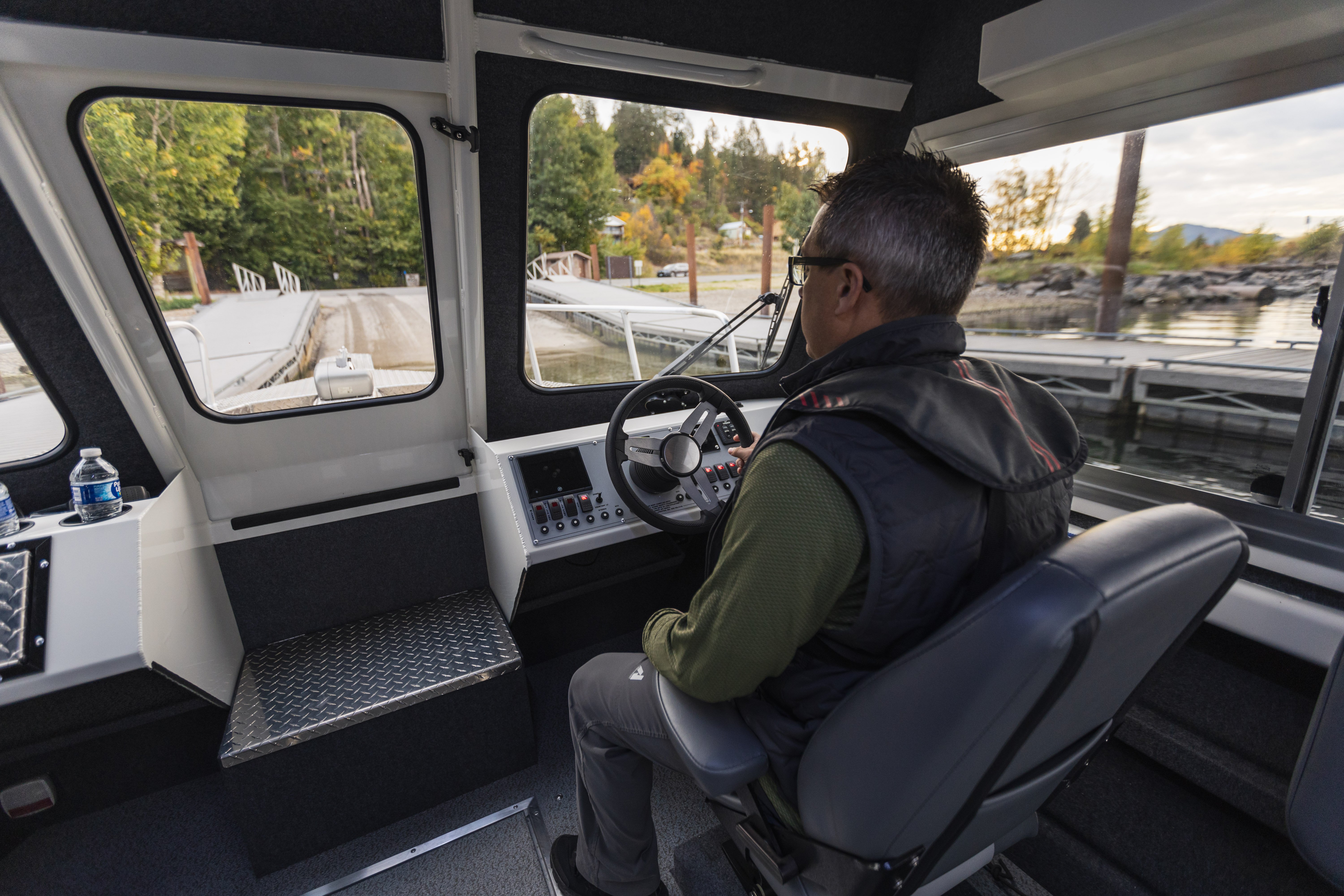

INTERIOR CONSOLE
AFT FISHING DECK
AUXILIARY COMMAND CONSOLE
INTERIOR CONSOLE
Seating Options
Suspension Seat
Fish Seat Arm Rests
Shock Absorber Seat Pedestal
Smooth Moves Seat Pedestal
Shockwave Suspension Pedestal
Heated Seat
Bed Rails
Engine Rigging
Mercury DTS pre-rig 2 eng/2 sta (24')
VesselView 502 upgrade twin engine (24')
Prop & PDI
Top / Cabin
Hardtop Center Top Mount Rod Holders
Radar Mount
Stern
Additional Downrigger Mounting Pads (2)
Diamond Tread Fish Box Lid
