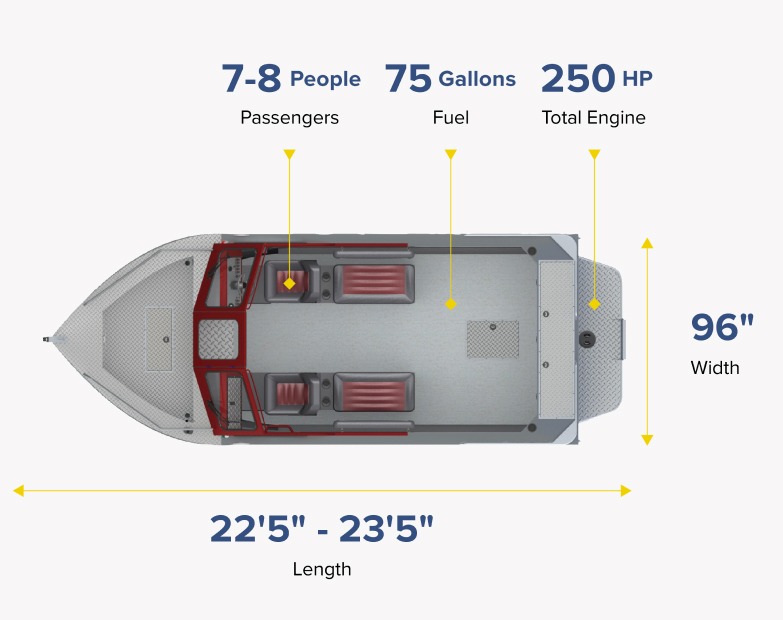

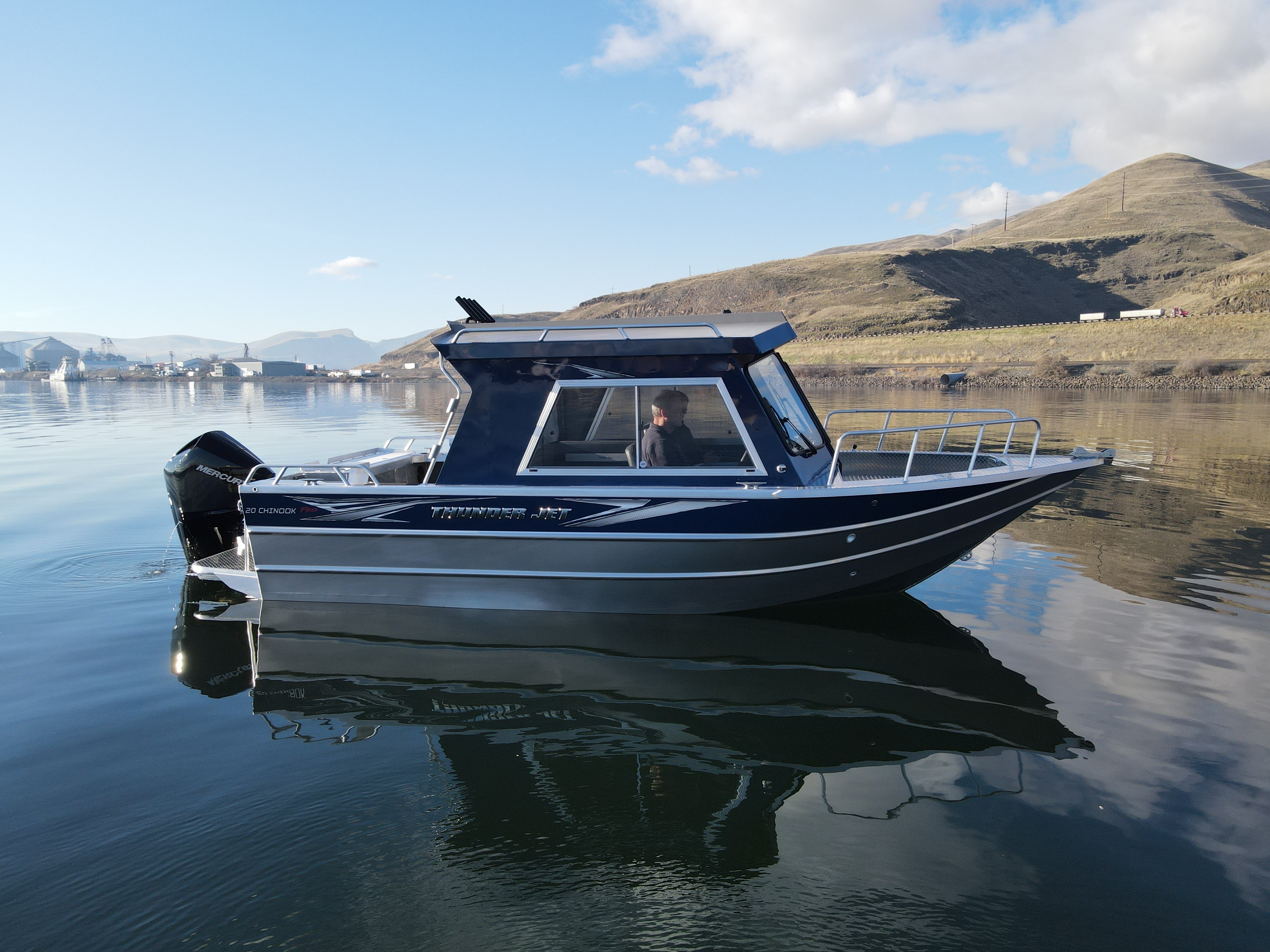

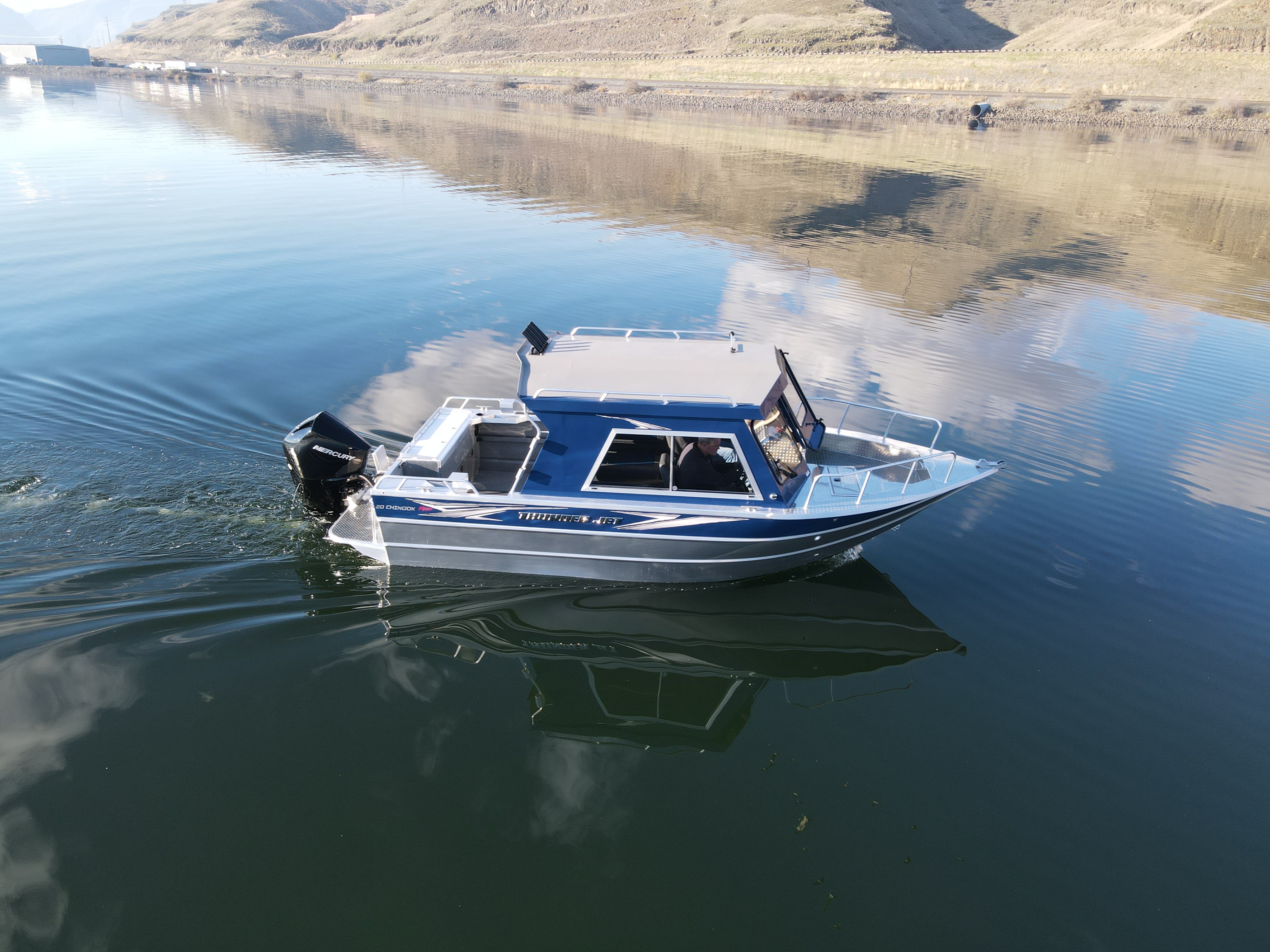

Base Boat Specifications - 20
| Length | 20' |
|---|---|
| L.O.A | 22'5'' |
| Beam Width | 96'' |
| Side Height | 38'' |
| Cockpit Depth | 29'' |
| Chine Width | 88'' |
| Bottom Width | 93'' |
| Minimum/Maximum HP | 150/250 |
| Max Persons Capacity | 7 |
| Interior Hardtop Height | 73.5'' |
| Fuel Capacity | 72 USG |
| Motor Length | 25'' |
| Hull Deadrise | 16° Progressive TJ-X High Performance Hull |
Aluminum Thickness
| Side | 0.125'' / 5052 Aluminum Alloy |
|---|---|
| Bottom | 0.190'' / 5086 Aluminum Alloy |
| Transom | 0.250'' / 5052 Aluminum Alloy |
Basic Power
Mercury 150XL 4 Stroke
Note: Does not include prop
Basic Trailer
Karavan 6000 lb. Galvanized Tandem Axle
Bunk Trailer Includes
Spring Suspension, 14" Aluminum Wheels
Carpeted Bunks w/ Slick Bunk Caps
Plastic Fenders w/ Non-Skid Steps
Tongue Jack, Load Guides
Hydraulic Surge Disc Brakes
Spare Tire and Carrier
Standard Hull Features
One Piece Hull Sides / One Piece Bottom
Progressive Offshore Hull w/ Upswept Bow
Full Length Engineered Box Stringers
(4) Full Length Formed-In External Hull Stiffeners
Full Length Offshore 5'' Reverse Chine
Fully Welded Heavy-Duty Keel Guard
Welded Thru-Hull Fittings
(5) Welded 8" Cleats
Wide Formed Gunnels
Welded Bow & Transom Eyes
Welded 14'' High Bow Rails
Double Walled Self-Draining Diamond Tread Drop Bow
Large Fully Welded Bow Drains
Locking Self-Draining Bow Locker
Welded Full Width Transom Platform w/ Undermount Telescoping Ladder
Welded External Motor Bracket
Welded 6'' High Wrap-Around Stern Rails
Welded Downrigger Mounting Pads

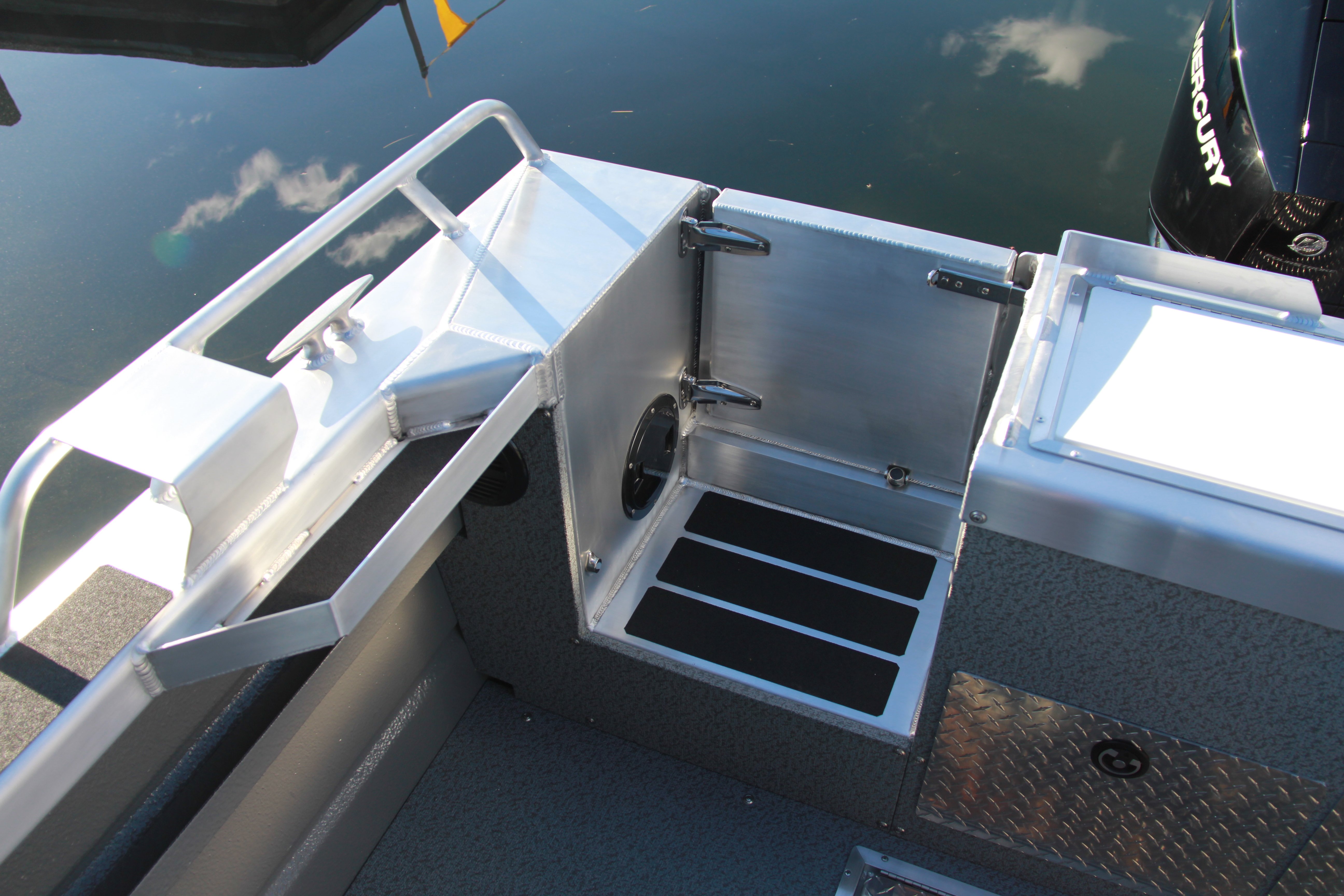

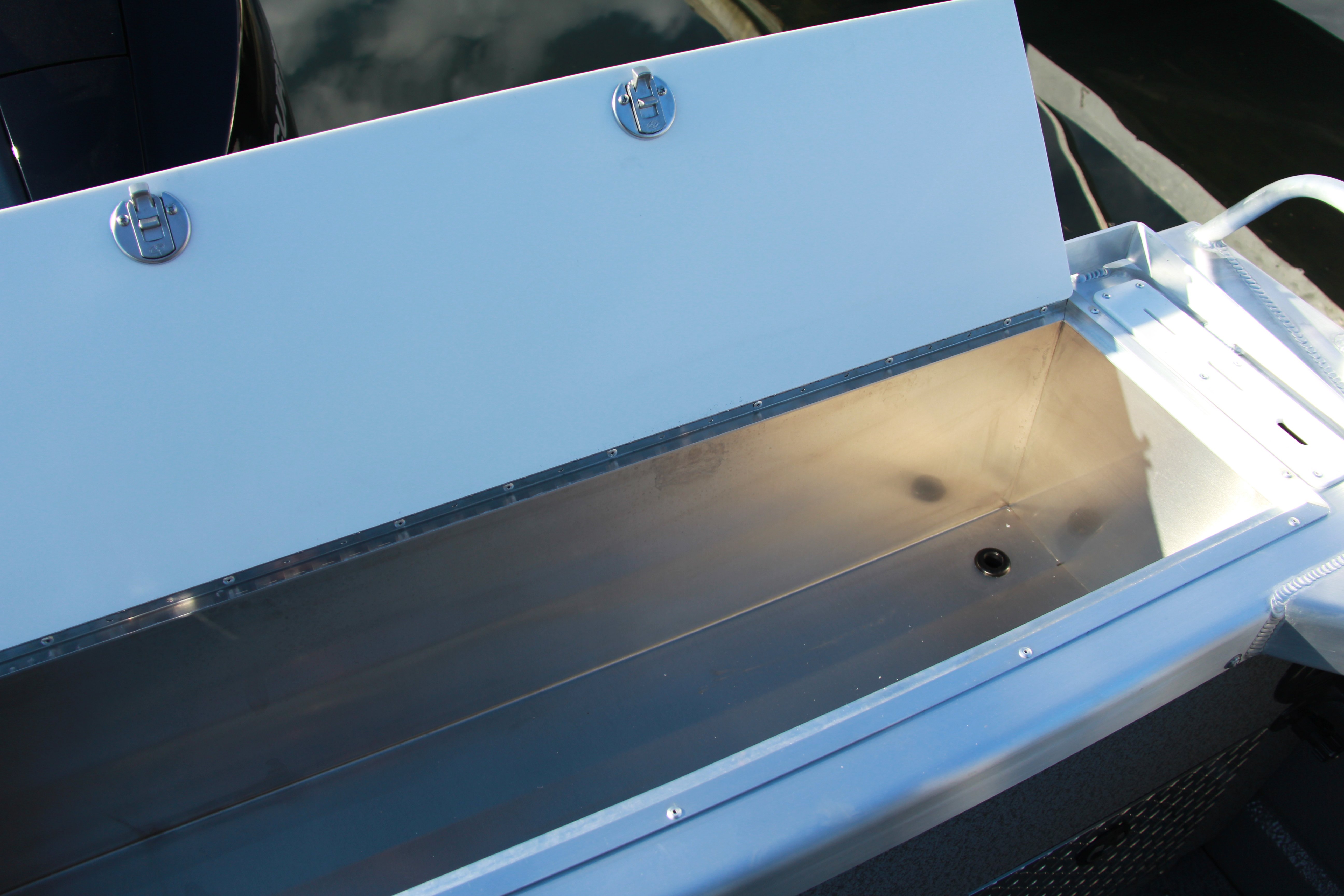

Transom Fish Locker w/HPDE Lid and SS Locks, HDPE Tool Holder and Welded Backsplash
Welded Aft Cockpit Gunnel Trays
Full Length Welded Hard Top Grab Rails
Welded 3 Piece Walk-Thru Windshield
Standard Rigging Features

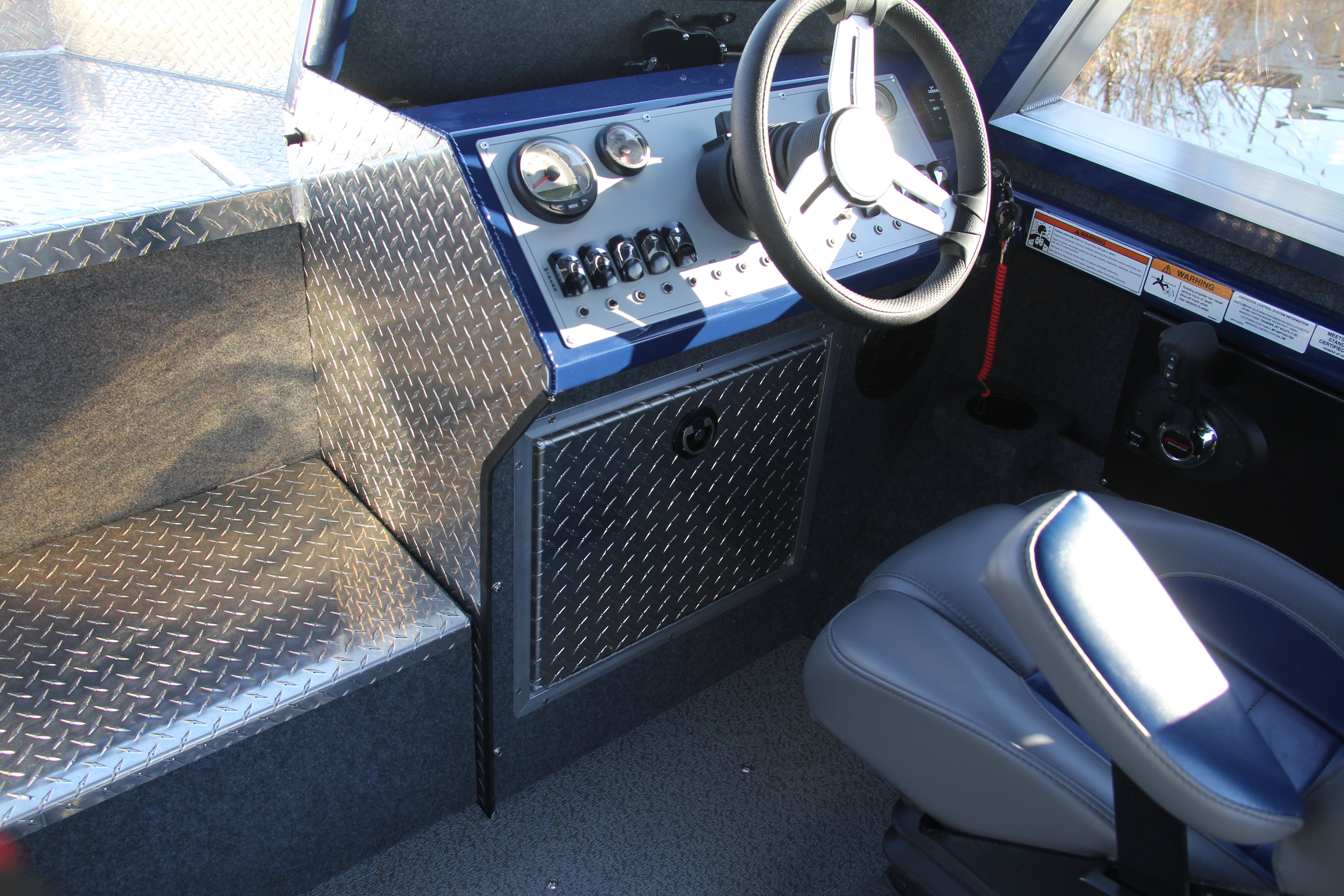

Analog Tach, Fuel, Trim & Hour Meter Instrumentation
Mechanical Shift/Throttle
Hydraulic Steering w/ Tilt Helm
Premium Switch Panel & Electric Horn
Dual USB Power Point
LED Navigation Lights Package
Premium Marine Wiring Harness w/ Watertight Connections
Safety Hub Power Distribution Block
Transom Battery Tray
Electric Bilge Pump w/ Auto Float Switch
Conduit Under Bow Deck for Running Wiring
Pantographic Self-Parking Driver & Passenger Side Windshield Wipers
Base Boat Specifications - 21
| Length | 21' |
|---|---|
| L.O.A | 23'5'' |
| Beam Width | 96'' |
| Side Height | 38'' |
| Cockpit Depth | 29'' |
| Chine Width | 88'' |
| Bottom Width | 93'' |
| Minimum/Maximum HP | 150/250 |
| Max Persons Capacity | 8 |
| Interior Hardtop Height | 73.5'' |
| Fuel Capacity | 72 USG |
| Motor Length | 25'' |
| Hull Deadrise | 16° Progressive TJ-X High Performance Hull |
Standard Interior Features
(2) Premium Seats on Pedestals w/ Locking Swivel
Adjustable Driver’s Seat Slider
(2) Storage Box Bench Seats w/Removable Backrests
Drop Curtain for Hard Top w/ Roll Up Center Door
Locking Glove Box
Locking Under Dash Storage
Stainless Steel Rubber Coated Steering Wheel
Welded Passenger Grab Rail
Welded High Mount Windshield Grab Rails
Hard Top Storage Trays w/ Welded Grab Rails

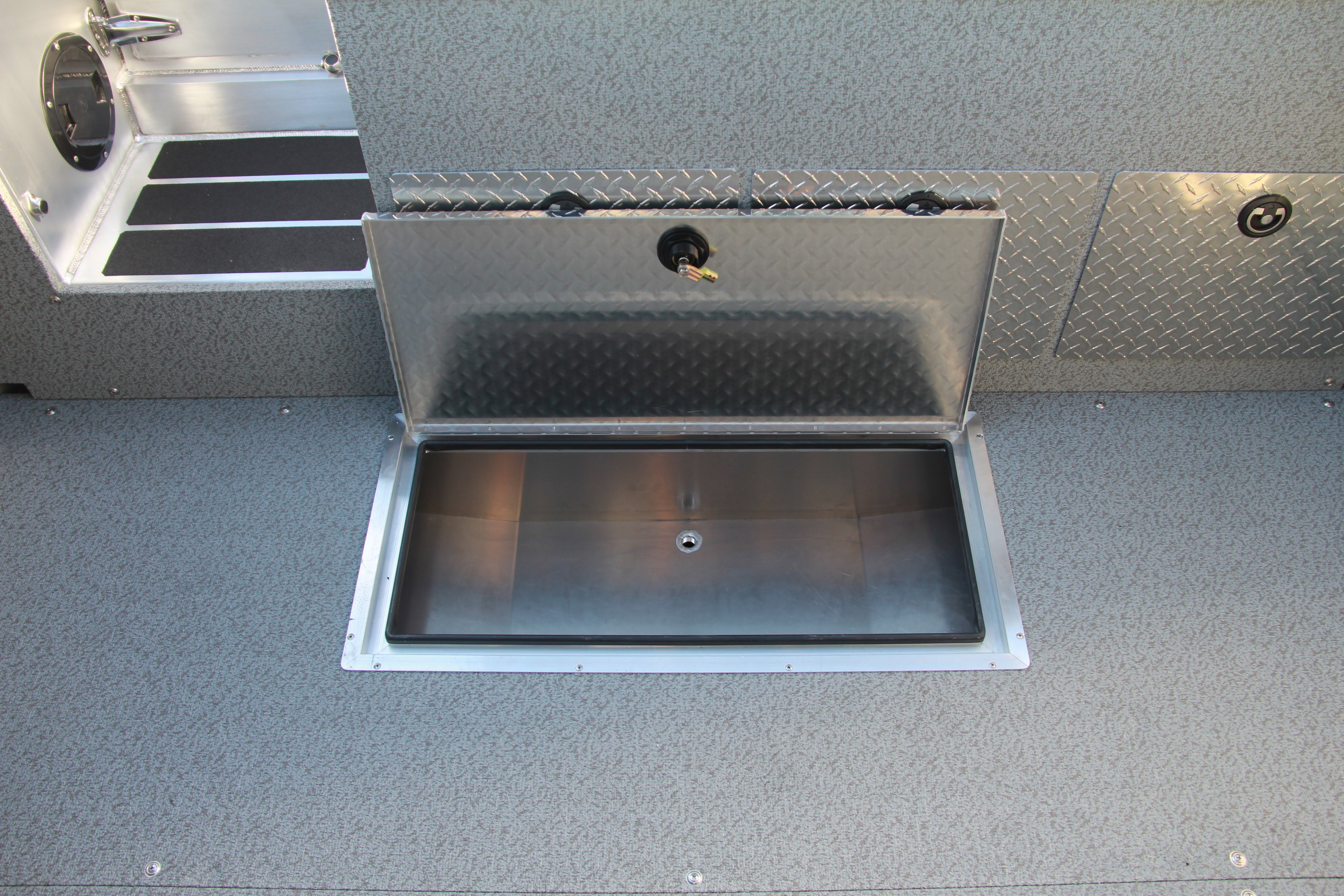

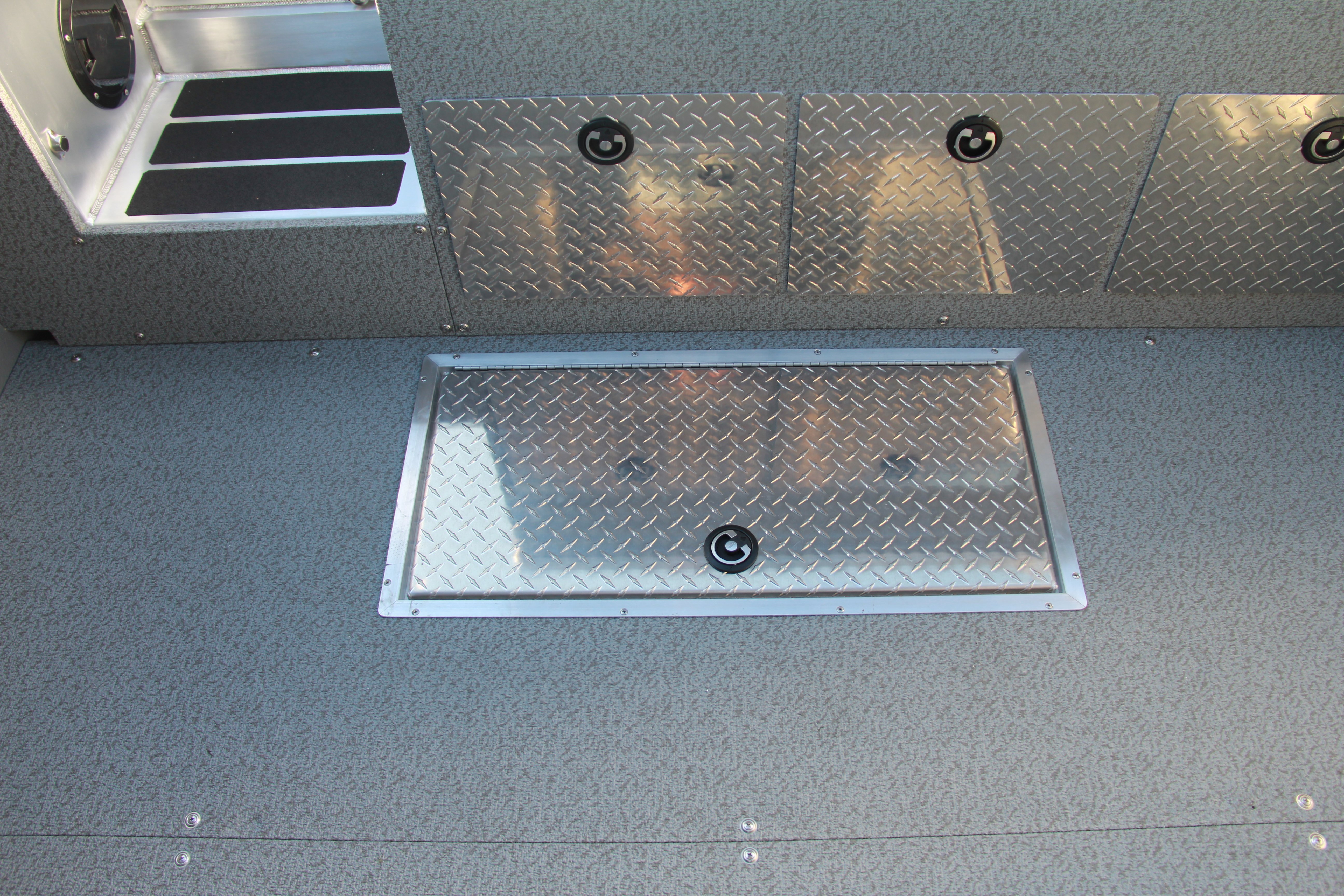

Locking Aft Cockpit Floor Storage Compartment

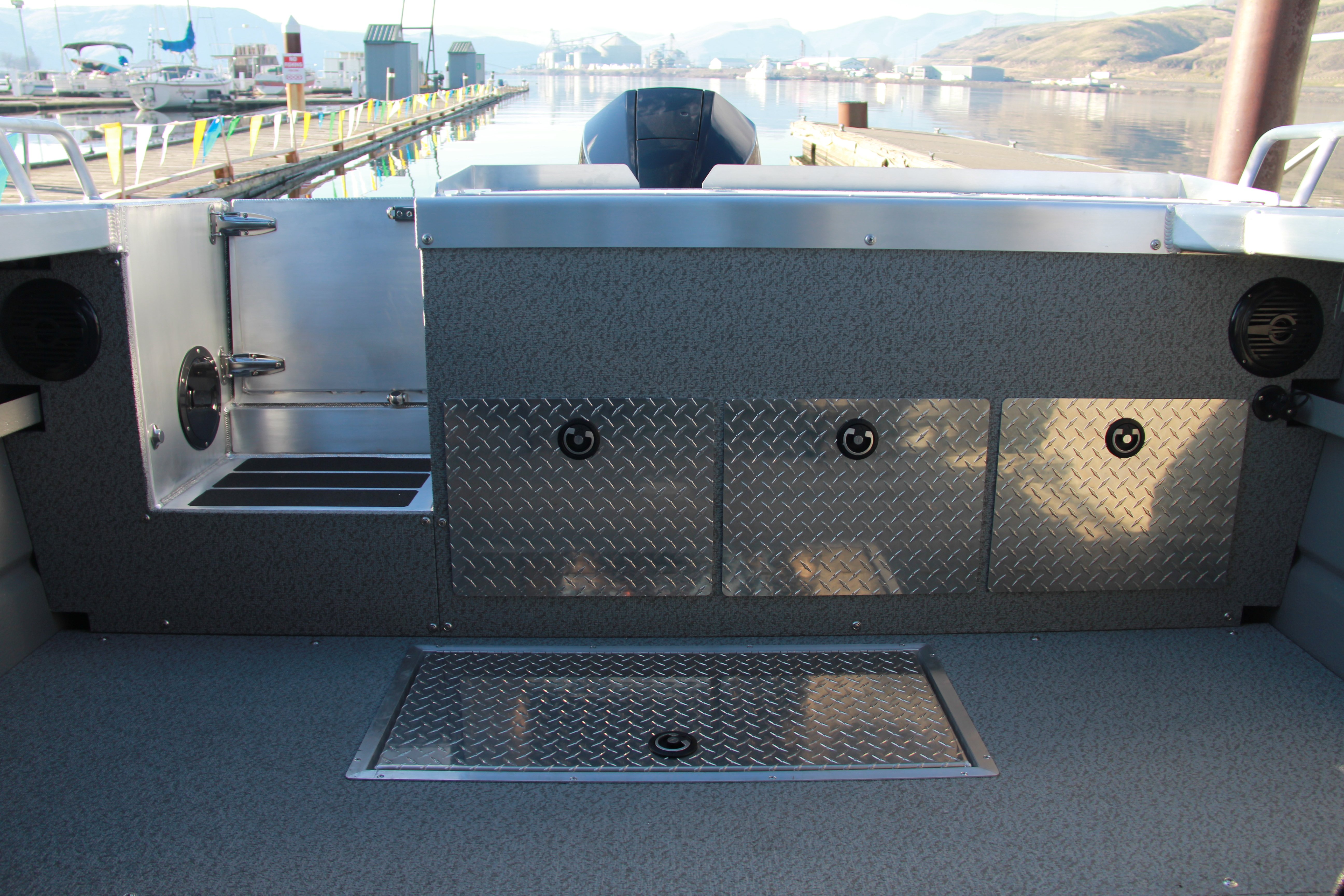

(3) Locking Interior Transom Access Hatches
Diamond Tread Bow Step w/ Storage
(2) Full Length Welded Side Storage Trays
(8) Cup Holders
(4) Interior Rod Holders
Marine Carpeted Cabin Side Walls
Premium Marine Vinyl Decking
Vinyl Wrapped Transom
Standard Color & Graphics
1/3 Hull Side Paint
Color Matched Painted Dash, Windshield and Hardtop
Raised Domed Logos
Flat Vinyl Model Designators
Hippo-lined Cockpit (from drop curtain to transom)
Hippo-lined Roof
Optional Features
Self-Bailing Deck
Alaskan Bulkhead
ERS – Extended Running Surface
See Dealer for Additional Options

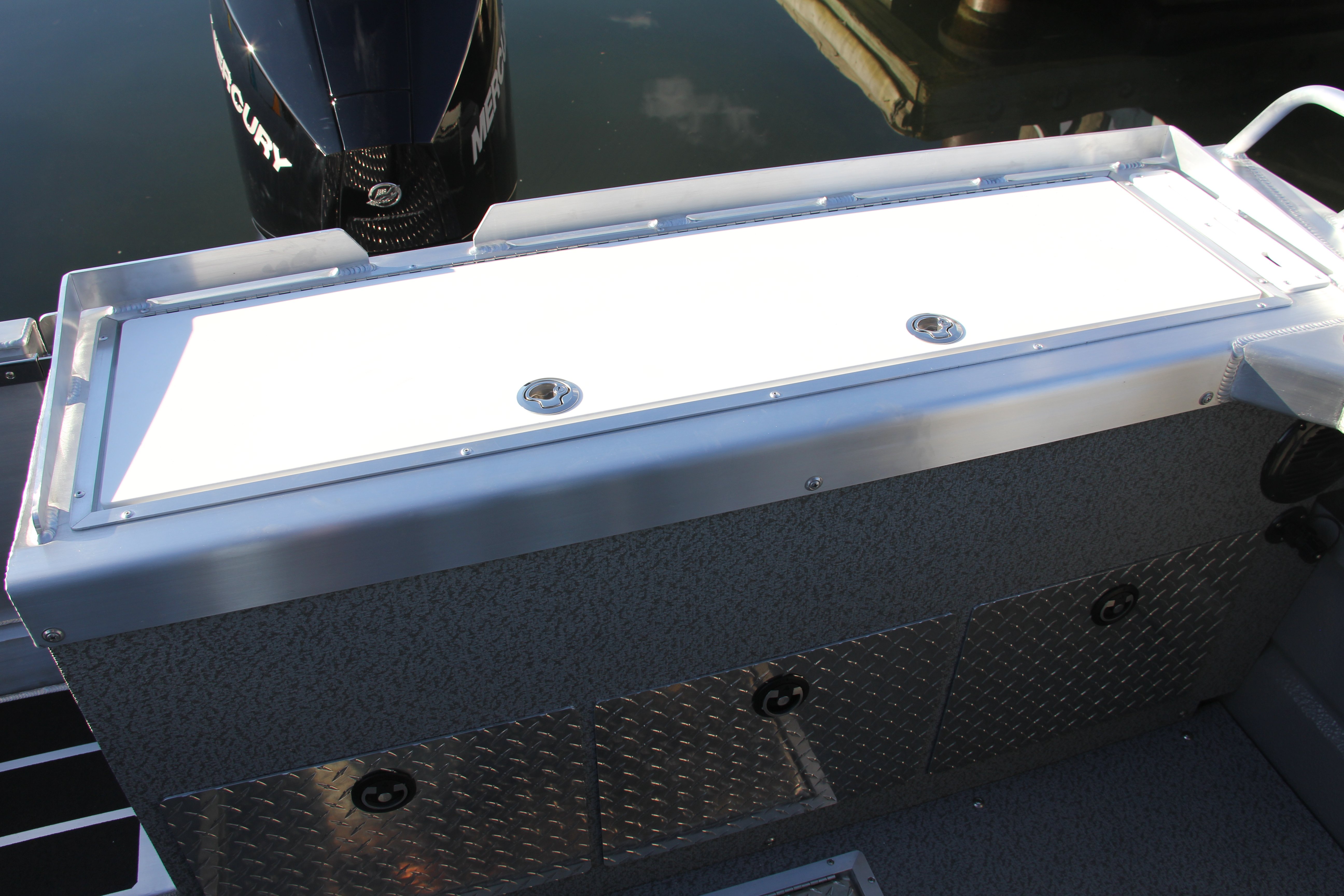

AFT FISH BOX
DOWNRIGGER BRACKET

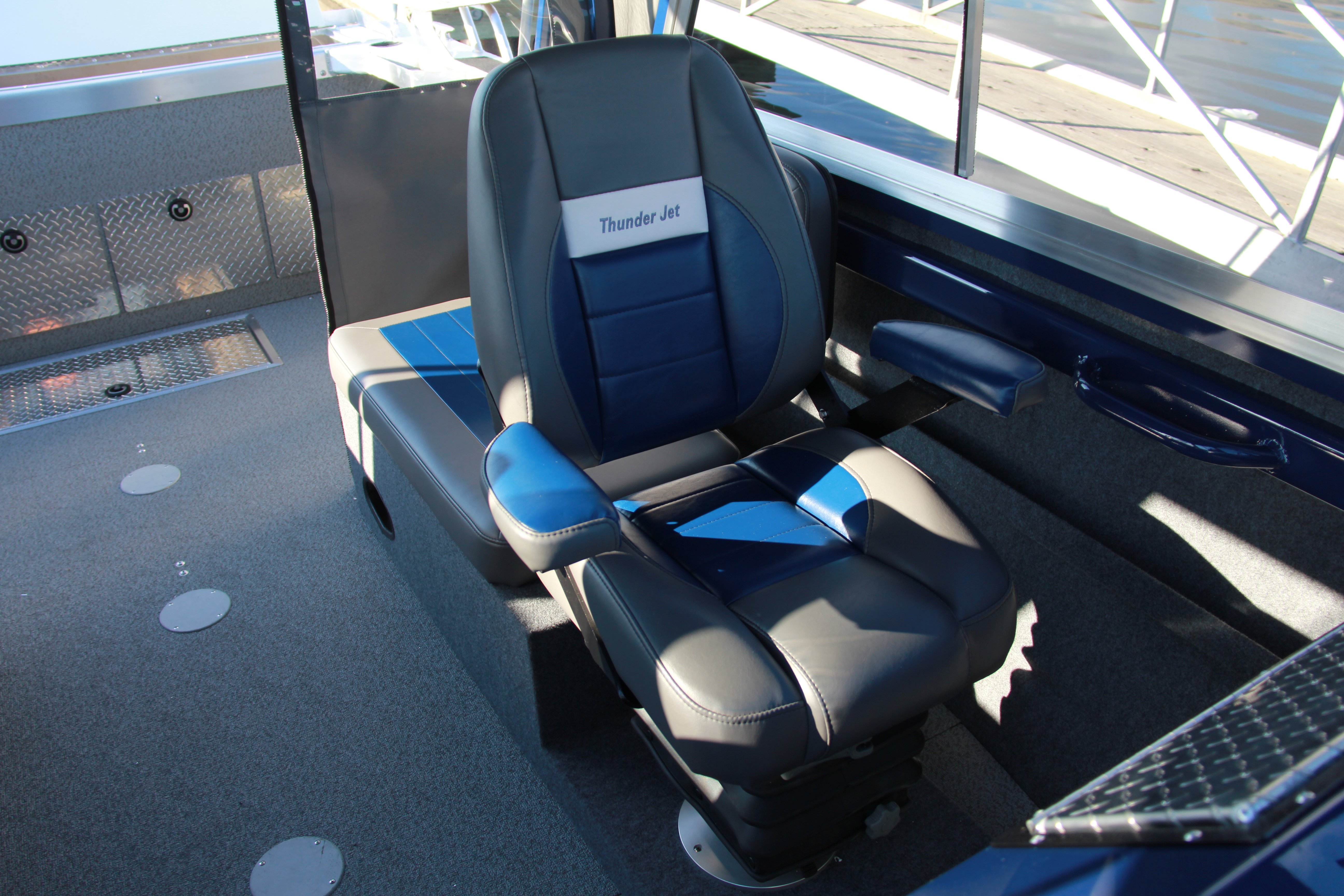

INTERIOR CHAIRS
AFT FISH BOX
DOWNRIGGER BRACKET
INTERIOR CHAIRS
Seating Options
Fish seat arm rests (PR)
Suspension seat (EA)
Shock absorber seat pedestal (EA)
Smooth Moves seat pedestal (EA)
Heated seat (EA)
Bow folding seat
Bed rails
Aft storage bench seat cushions
Shockwave suspension pedestal
Engine Rigging
Mercury analog/DTS pre-rig 1 eng/1 sta
Smartcraft gauge upgrade
VesselView® 502 upgrade single engine
Suzuki pre-rig analog 1 eng/1 station
Prop & PDI
Mercury analog/DTS pre rig 1 eng/2 sta
Suzuki pre rig digital 1 eng/1 sta
Top / Cabin
Hardtop side-mount rod holders
Hardtop center top-mount rod holders
Alaskan bulkhead
Alaskan package
Radar mount
Stern
Additional downrigger mounting pads (x2)
Deluxe anglers package
Insulated transom fish box
Diamond tread fish box lid
3/4 Platform w/undermount ladder
Welded transom kicker bracket
Welded platform kicker bracket
