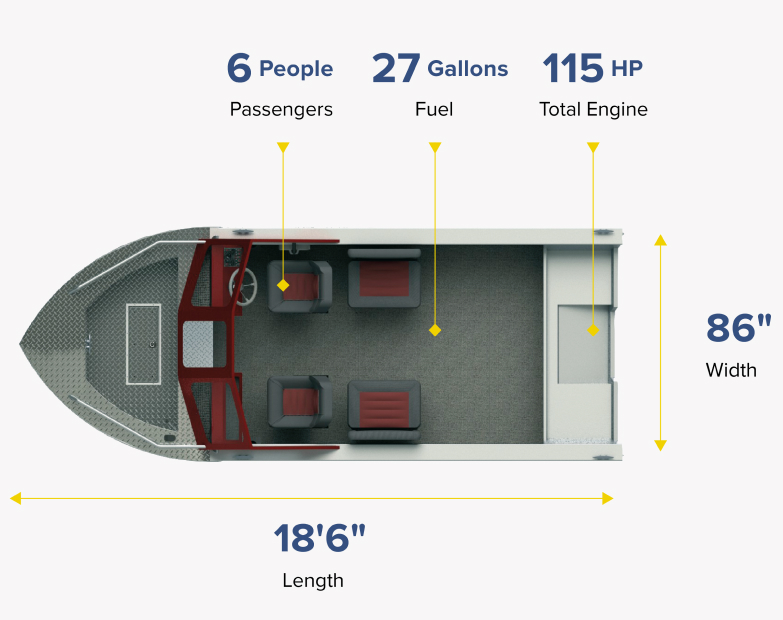

Base Boat Specifications
| Length | 18'6'' |
|---|---|
| L.O.A | 18'6'' |
| Beam Width | 86'' |
| Side Height | 31'' |
| Cockpit Depth | 25'' |
| Chine Width | 69'' |
| Bottom Width | 72'' |
| Minimum/Maximum HP | 90/115 |
| Max Persons Capacity | 6 |
| Fuel Capacity | 27 USG |
| Motor Length | 25'' |
| Hull Deadrise | 14 Degrees |
Standard Color & Graphics
Color Matched Painted Dash & Windshield
Raised Domed Logos
Flat Vinyl Model Designators
Standard Hull Features
Full Height Transom Splash Well w/ Kicker Mount
Full Length Engineered Box Stringers
(2) Full Length Formed-In External Hull Stiffeners
Formed-In Reverse Chine
(2) Performance Lifting Strakes
Fully Welded Heavy-Duty Keel Guard
Delta Bottom
Welded Thru-Hull Fittings
(5) Welded 8" Cleats
Wide Formed Gunnels
Welded Bow & Transom Eyes
Double Walled Self Draining Diamond Tread Drop Bow
Large Fully Welded Bow Drains
Rear Fill Gas Tank
Welded 5 Piece Walk-Thru Windshield
Optional Features
Folding Top w/ Side & Aft Curtains
(2) Storage Box Bench Seats w/ Removable Backrests
Floor Storage Compartments
Washdown
Upgraded Fish Seats
Multiple Paint & Graphics Configurations
See Dealer for Additional Options
Aluminum Thickness
| Side | 0.100'' / 5052 Aluminum Alloy |
|---|---|
| Bottom | 0.160'' / 5086 Aluminum Alloy |
| Transom | 0.160'' / 5086 Aluminum Alloy |
Basic Trailer
Karavan 3100 lb. Capacity Galvanized Single Axle
Bunk Trailer Includes:
Spring Suspension
14" Aluminum Wheels
(2) Carpeted Bunks w/ Slick Bunk Caps
Tongue Jack
Swing Tongue
Hydraulic Surge Disc Brakes
Spare Tire and Carrier
Chine Guides
Basic Power
Mercury 90EXLPT EFI 4 Stroke
Note: Does not include prop
Standard Rigging Features
Analog Fuel Instrumentation
Mechanical Throttle/Shift
No Feedback Single Cable Steering System
Switch Panel
Electric Horn
Dual USB Charger
LED Navigation Lights Package
Marine Wiring Harness w/ Water Tight Connections
Electric Bilge Pump w/ Auto Float Switch
Conduit Under Bow Deck for Running Wiring
Pantographic Self-Parking Driver Side Windshield Wiper
Standard Interior Features
(2) Folding Fish Seats on Pedestal w/ Locking Swivel
Adjustable Driver’s Seat Slider
Open Glove Box
Sport Steering Wheel
Welded Passenger Grab Rail
Welded High Mount Windshield Grab Rails
Diamond Tread Bow Step w/ Storage Box
Under Dash Storage Trays
(2) Full Length Welded Side Storage Trays
(4) Cup Holders
Full Marine Carpeted Sound Dampening Side Walls
Premium Marine Vinyl Decking

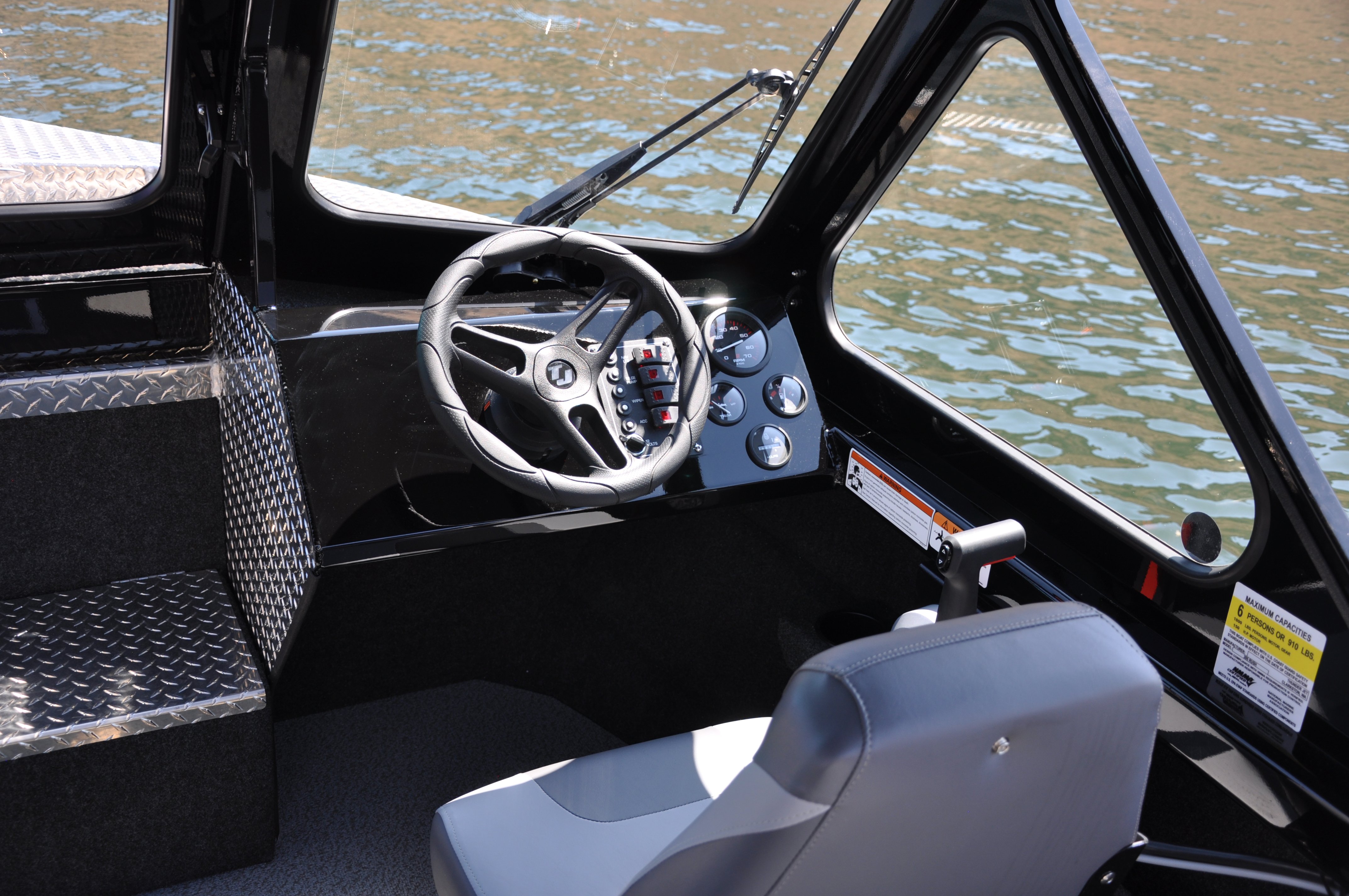

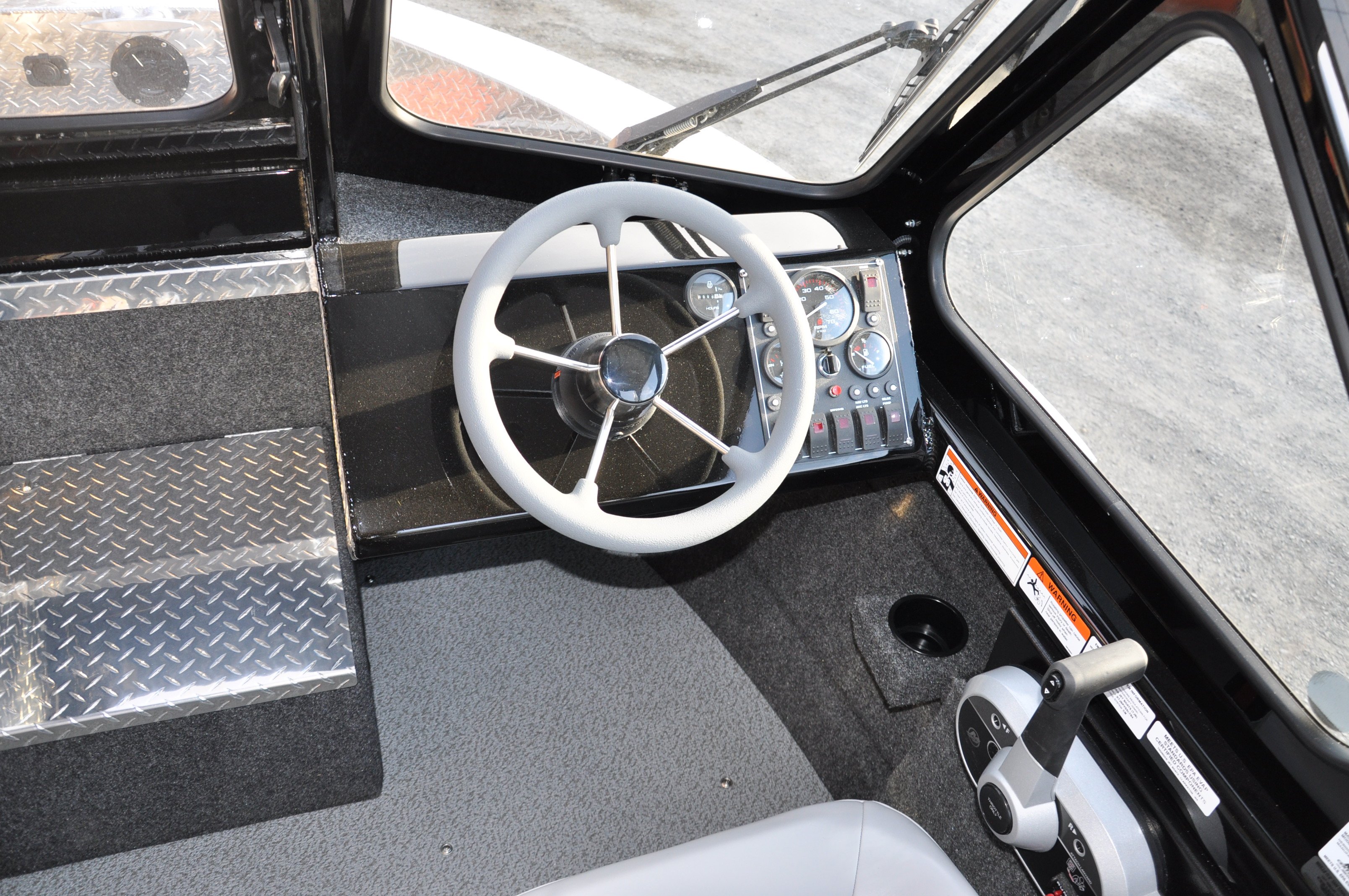

COMMAND CONSOLE

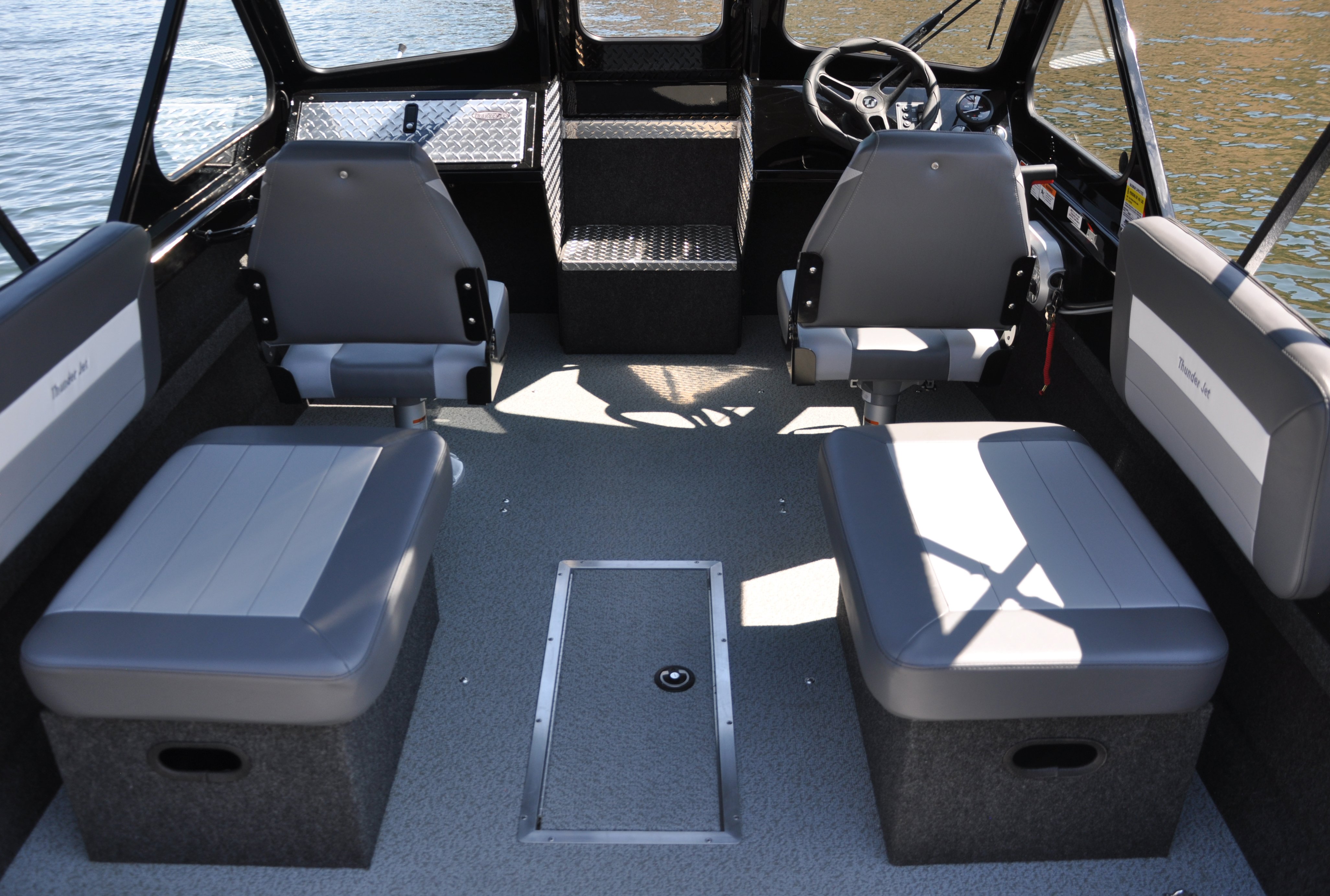

INTERIOR COCKPIT

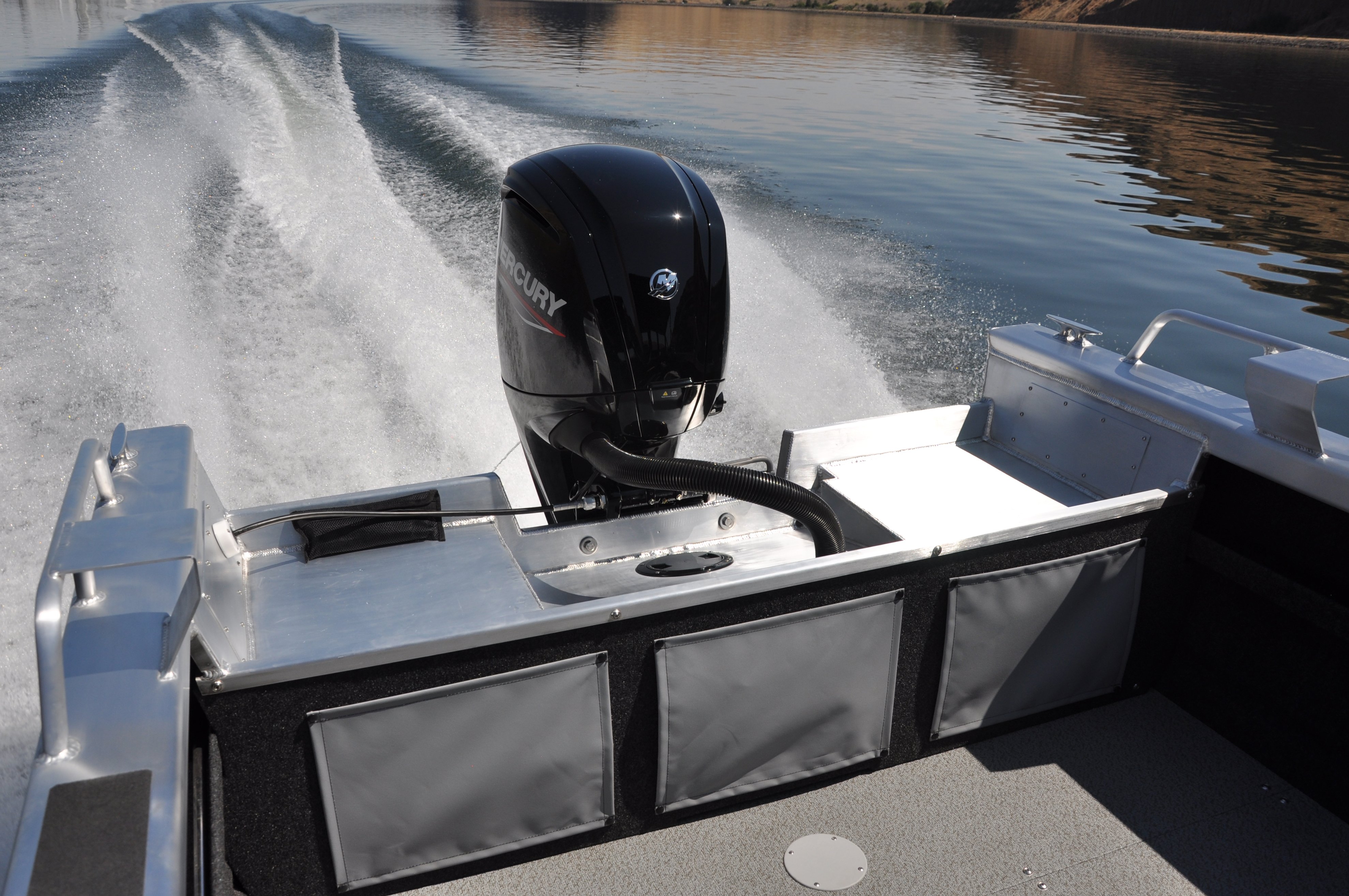

RUSH AFT DECK
COMMAND CONSOLE
INTERIOR COCKPIT
RUSH AFT DECK
Seating Options
Upgraded fish seats (helm & passenger)
Shock absorber seat pedestal (EA)
Heated seat (EA)

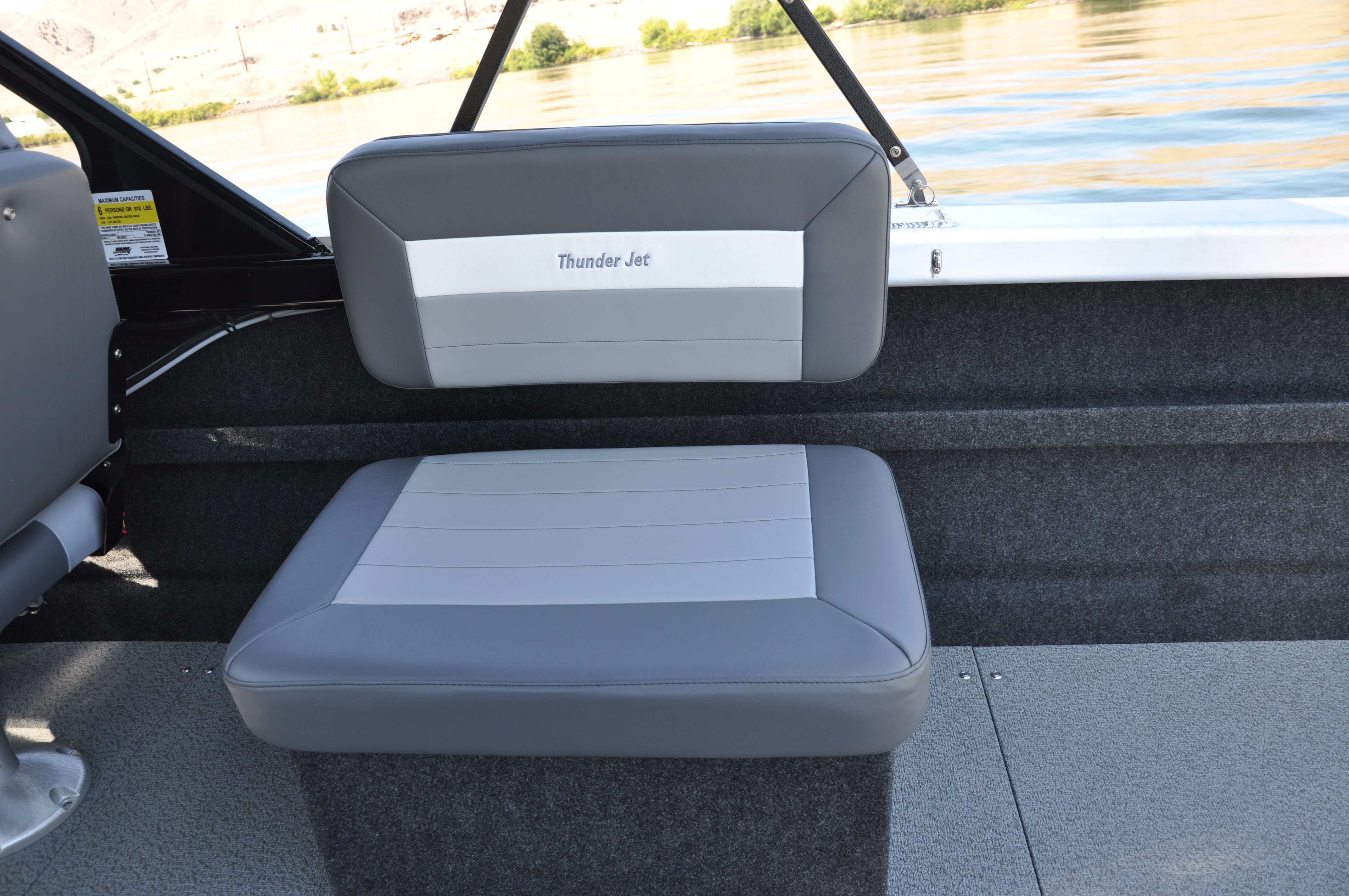

Side bench seat
Fishing seat package w/swivels
Bed rails
Engine Rigging
Analog gauge package - tach/trim/hour
Smartcraft gauge upgrade
Suzuki pre-rig analog 1 eng/1 station
Prop & PDI
Canvas
Folding top w/side and aft curtains
4 Panel EZ access front canvas
Stern cover
Mooring cover
Towing bra
Padded window cover
Stern
Swim step w/undermount ladder
6" stern rails w/downrigger mounting pads
Additional downrigger mounting pads (x2)
Transom riser for outboard jet
