ALL-IN FOR FISHING

The 185, 200, and 210 Luxor heavy-gauge aluminum fishing boats deliver proven performance, strength, and versatility across the lineup. From the agile 185 to the powerful 210, each model is built to handle any water, any adventure, and every angler’s demands.

GET A QUOTE
FIND DEALER
Download 185 Luxor Spec Sheet
Download 200/210 Luxor Spec Sheet

FEATURES & SPECS

HIGHLIGHTS

  • Available with 1/2, 3/4, or full hard top
  • Spacious cockpit
  • Extra wide and deep platform
  • Built with the Fisherman in mind
  • Made to tame big water
  • Motor mount platform
Pilot-Overhead-Layout-Specs
Pilot-Overhead-Layout-Specs
created by dji camera

Base Boat Specifications - 185

Length 18'5''
L.O.A 20'10''
Beam Width 96"
Side Height 34.5''
Cockpit Depth 28.5''
Chine Width 80''
Minimum/Maximum HP 115/150
Max Persons Capacity 6
Fuel Capacity 50 USG
Motor Length 25''
Hull Deadrise 16° Progressive TJ-X High Performance Hull

Base Boat Specification - 210

Length 21'
L.O.A 23'5''
Beam Width 96''
Side Height 35''
Cockpit Depth 28''
Chine Width 80''
Minimum/Maximum HP 150/250
Max Persons Capacity 7
Fuel Capacity 50 USG
Motor Length 25''
Hull Deadrise 16° Progressive TJ-X High Performance Hull

Basic Trailer

EZ Loader 3100 lb. Capacity Galvanized Single Axle (18')

GTWY 4700 lb. Capacity Galvanized Tandem Axle Bunk (20' & 21')

Bunk Trailer Includes:

Spring Suspension (18'), Torsion Suspension (20' & 21')

14'' Wheels (18'), 15" Wheels (20' & 21')

(2) Carpeted Bunks w/ Slick Bunk Caps

Hydraulic Surge Disc Brakes

Chine Guides

Spare Tire & Carrier

Metal Fenders (20' & 21')

Tongue Jack (20' & 21')

Standard Hull Features

Extended Running Surface Bottom

Full-Length Engineered Box Stringers

(4) Full-Length Formed-In External Hull Stiffeners

Full Length 5'' Reverse Chine

Fully Welded Heavy-Duty Keel Guard

Welded Thru-Hull Fittings

(5) Welded 8" Cleats

Wide Formed Gunnels

Welded Bow & Transom Eyes

Welded 4'' High Bow Rails

Double Walled Self-Draining Diamond Tread Drop Bow

Large Fully Welded Bow Drains

Welded 6'' Stern Rails

Welded Downrigger Mounting Pads

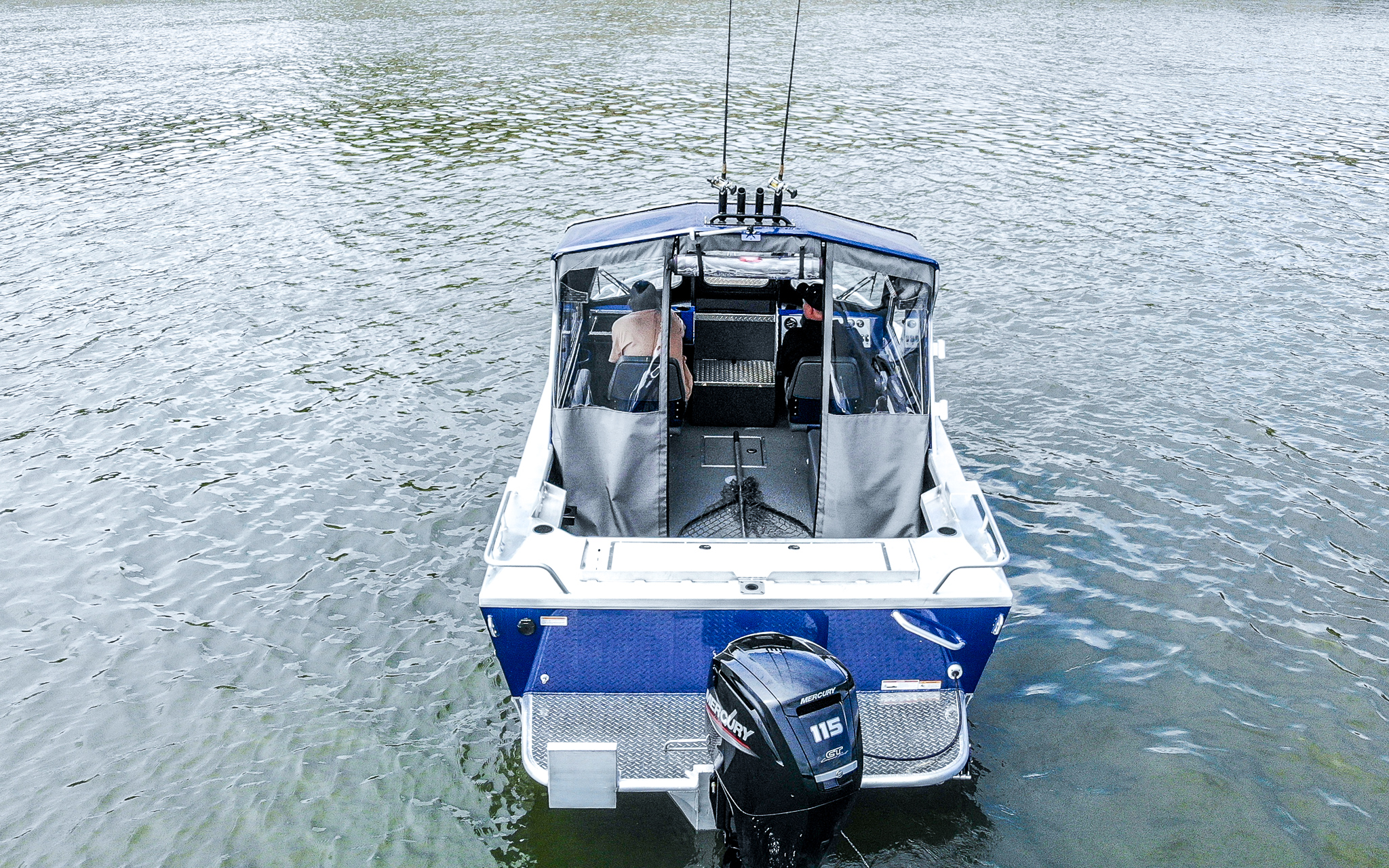

Welded Full-Width Transom Platform w/Undermount Telescoping Ladder

Welded External Motor Bracket

Rear Fill Gas Tank

Transom Fish Box w/HDPE Lid & Backsplash

Transducer Mounting Bracket

Welded 5 Piece Walk-Thru Windshield

Base Boat Specifications - 200

Length 20'
L.O.A 22'5"
Beam Width 96''
Side Height 35''
Cockpit Depth 28''
Chine Width 80''
Minimum/Maximum HP 115/225
Max Persons Capacity 7
Fuel Capacity 50 USG
Motor Length 25''
Hull Deadrise 16° Progressive TJ-X High Performance Hull

Aluminum Thickness

Side 0.125'' / 5052 Aluminum Alloy
Bottom 0.190'' / 5086 Aluminum Alloy
Transom 0.250'' / 5052 Aluminum Alloy

Basic Power

Mercury 115EXLPT EFI 4 Stroke (18')

Mercury 115EXLPT (20’)

Mercury 150XL 4 Stroke (21’)

Note: Does not include prop

Standard Rigging Features

Analog Tach, Fuel, Trim & Hour Meter Instrumentation

Mechanical Throttle/Shift

No Feedback Single Cable Steering System

Premium Switch Panel & Electric Horn

Dual USB Charger

LED Navigation Lights Package

Electric Bilge Pump w/ Auto Float Switch

Conduit Under Bow Deck for Running Wiring

Pantographic Self-Parking Driver Side Windshield Wiper

Standard Interior Features

(2) Premium Seats w/Arm Rest on Locking Swivels

Adjustable Driver’s Seat Slider

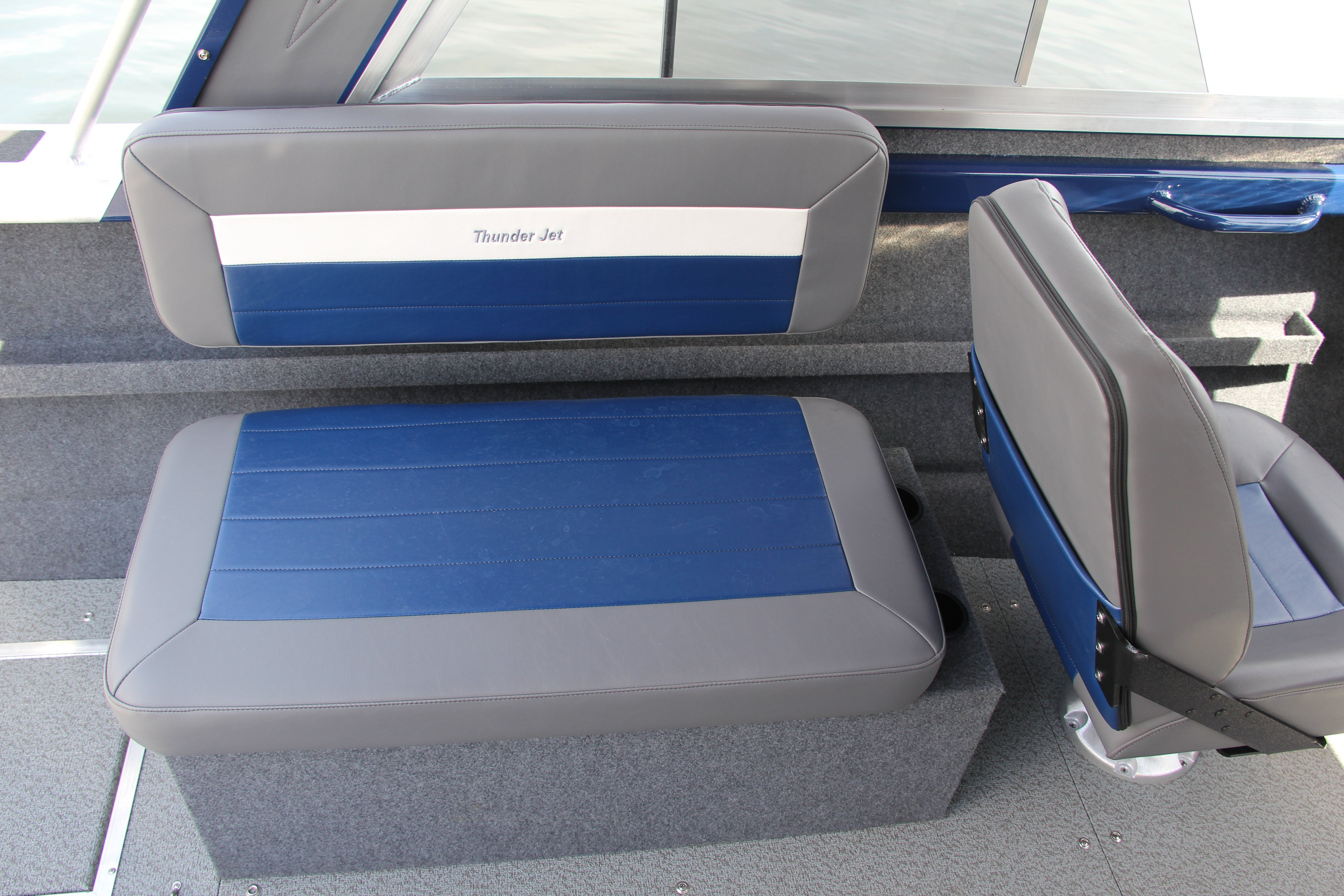

(2) 36" Storage Box Bench Seats w/ Removable Backrests

Folding Canvas Top w/ Side Curtains, Aft Drop Curtain w/
   Roll-up Center Door, Travel Boot and Heavy-Duty Square
   Tube Bows

Bulb Seal Along Forward Portions of All Canvas

Locking Glove Box

Sport Steering Wheel

Welded Passenger Grab Rail

Welded High Mount Windshield Grab Rails

Aft Locking Floor Storage Compartment

(3) Locking Interior Transom Access Hatches

Diamond Tread Bow Step w/ Storage Box

Under Dash Storage Trays

(2) Full Length Welded Side Storage Trays

(8) Cup Holders

Full Marine Carpeted Sound Dampening Side Walls

Supersede Composite Floors with Marine Vinyl

Vinyl Wrapped Supersede Composite Transom

Standard Color & Graphics

1/3 Hull Side Paint

Color Matched Painted Dash & Windshield

Speckled Painted Gunnels

Raised Domed Logos

Flat Vinyl Model Designators

EXTERIOR & STRUCTURE

Built to conquer the harshest environments & last a lifetime.

  1. Heavy Duty Square Tube Folding Half Top w/Side Curtains
  2. 1/3 hull side paint w/flat vinyl model designators & raised domed logos
  3. Wide-formed, all-welded gunnels & double-walled diamond tread drop bow
  4. All-welded reinforced external motor mounting bracket

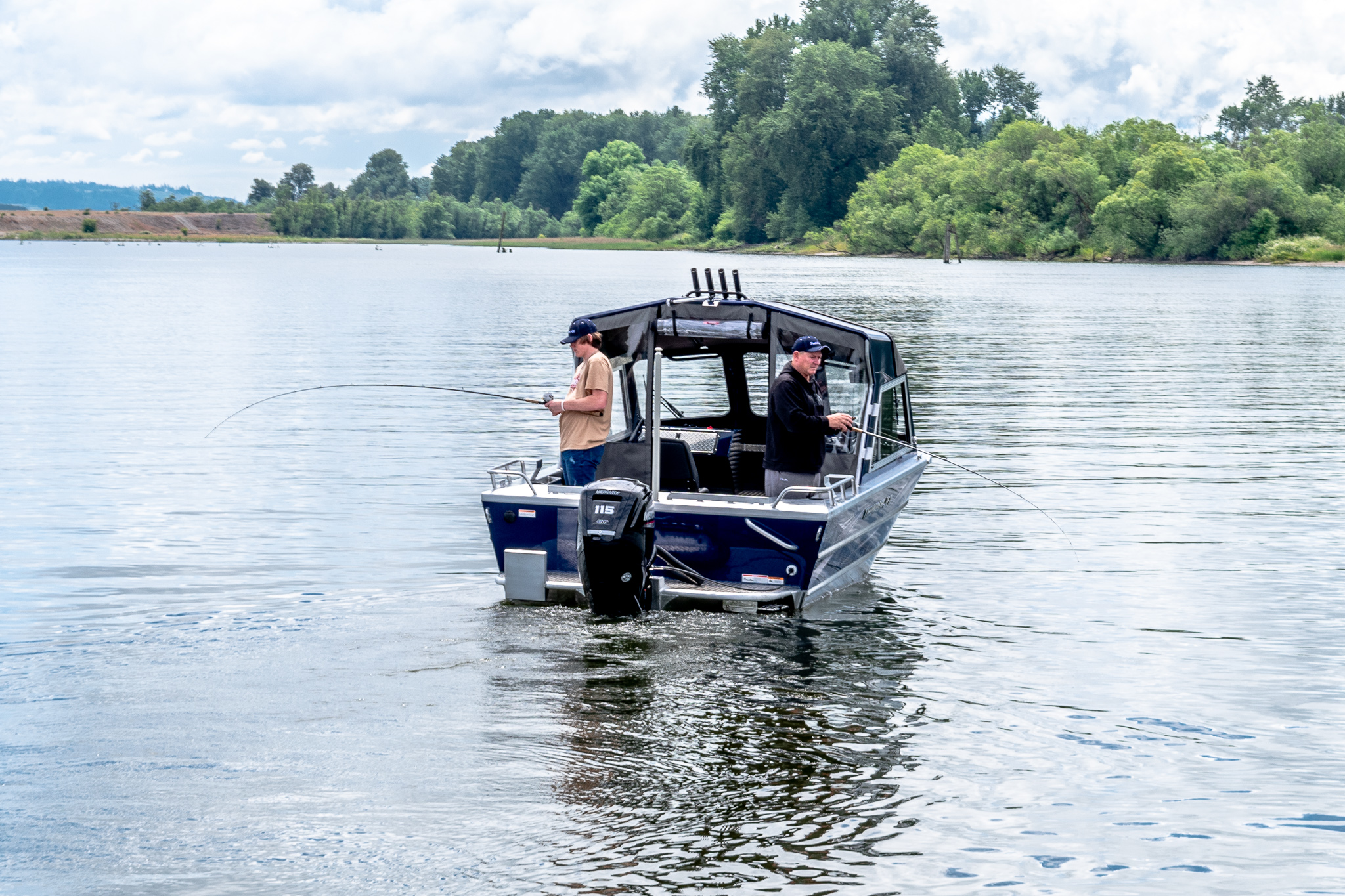

2 men fishing in a Luxor

Heavy Duty Square Tube Folding Half Top w/Side Curtains

Loading gear into a Luxor

1/3 hull side paint w/flat vinyl model designators & raised domed logos

Luxor on the water

Wide-formed, all-welded gunnels & double-walled diamond tread drop bow

Luxor engine reenforced mounting bracket

All-welded reinforced external motor mounting bracket

FISHING OPTIMIZED INTERIOR

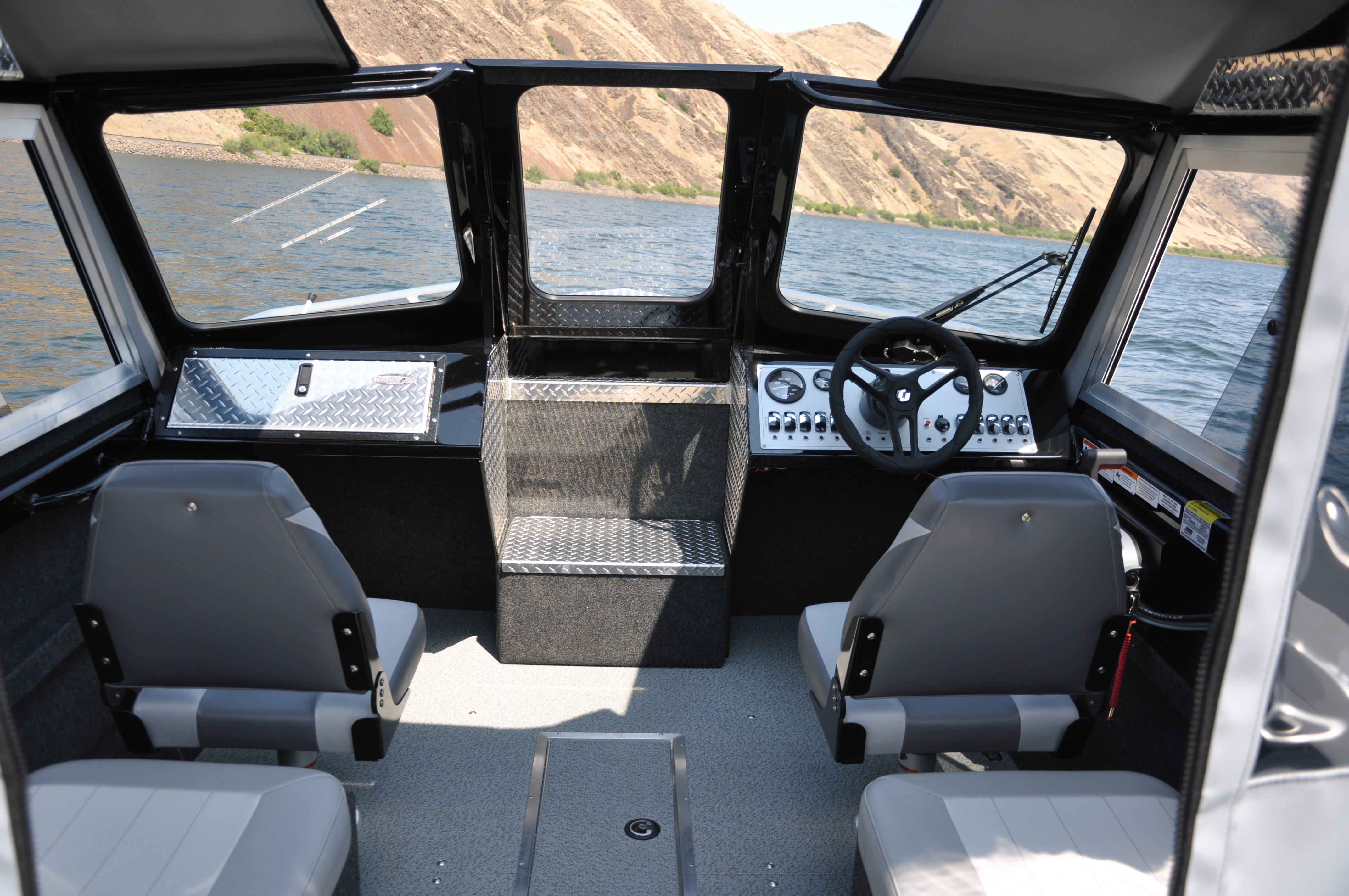

COMMAND CONSOLE

FISHERMAN'S TRANSOM

PORT CONSOLE

COMMAND CONSOLE

FISHERMAN'S TRANSOM

PORT CONSOLE

COMMAND CONSOLE

FISHERMAN'S TRANSOM

PORT CONSOLE

Luxor Fishing

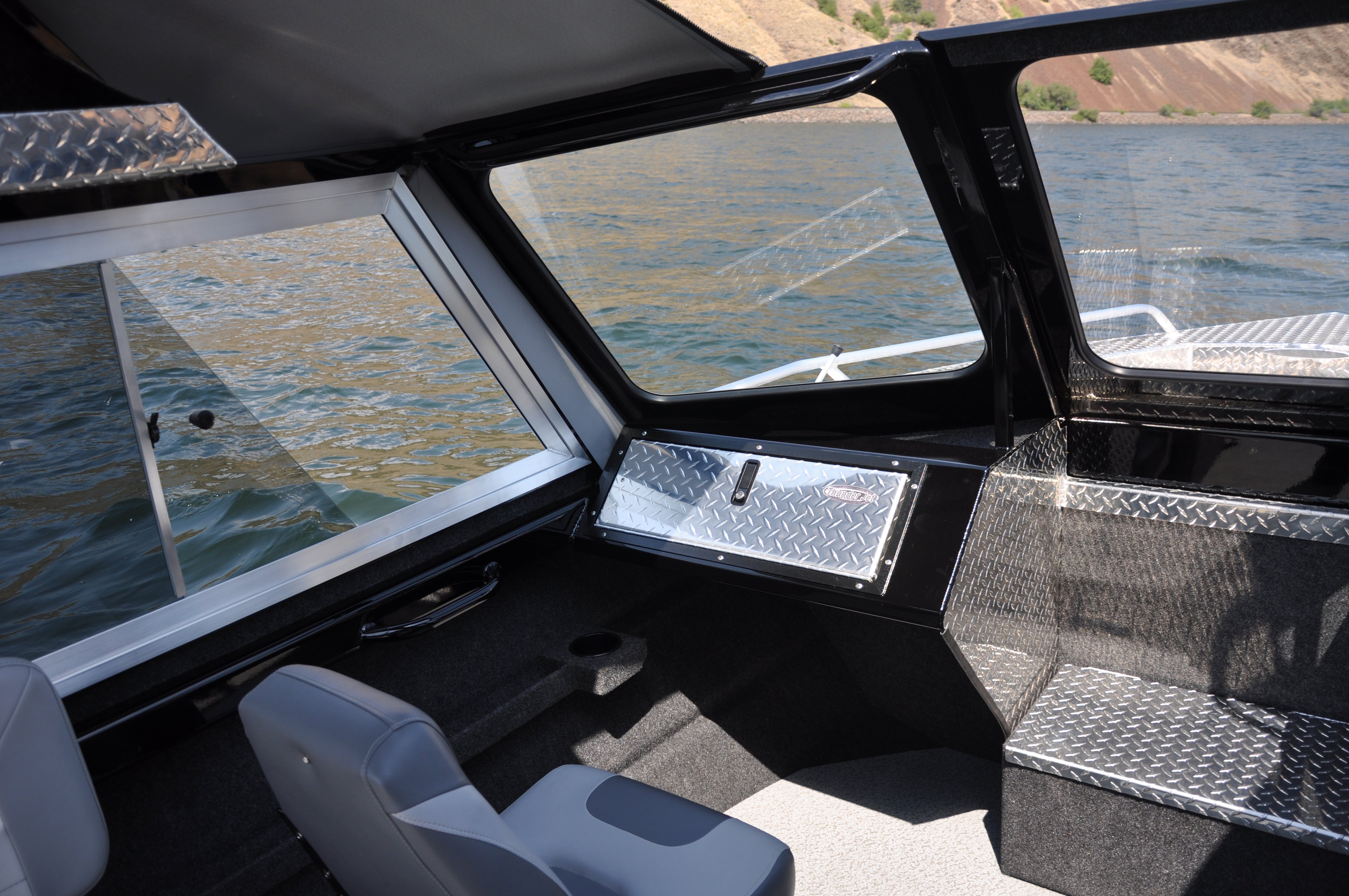

Luxor Port Console

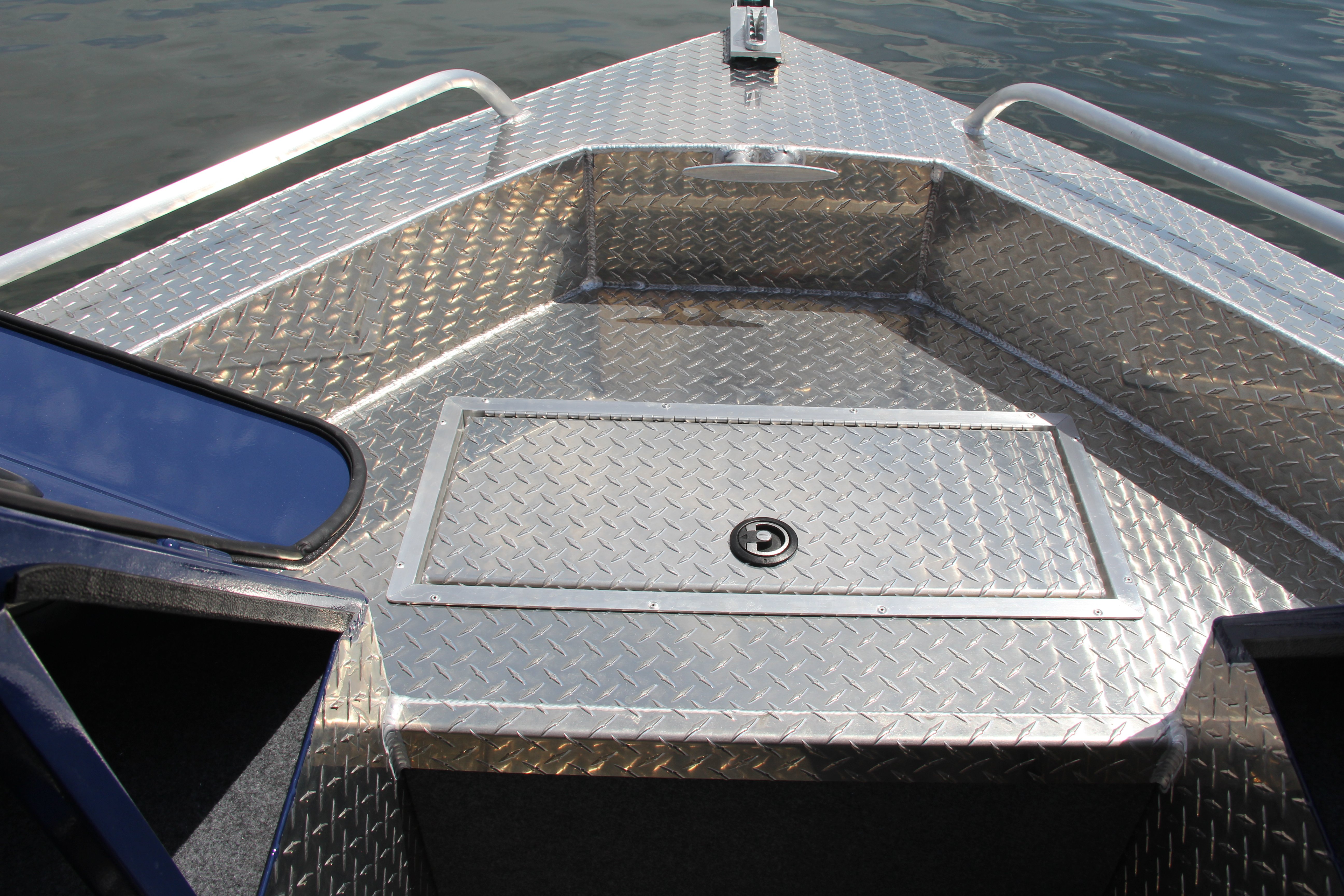

Luxor Bow Deck Storage
Luxor in Marina
Luxor fishing on the water
Luxor on the water
Luxor running on the water
Luxor on the water
Luxor boarding ladder
Gallery (46 images)
Luxor Fishing
Luxor Port Console
Luxor Bow Deck Storage
Luxor in Marina
Luxor fishing on the water
Luxor on the water
Luxor running on the water
Luxor on the water
Luxor boarding ladder
Luxor Fishing
Luxor Port Console
Luxor Bow Deck Storage
Luxor in Marina
Luxor fishing on the water
Luxor on the water
Luxor running on the water
Luxor on the water
Luxor boarding ladder

MAKE IT YOUR OWN

Customize your 185, 200 or 210 Luxor to be the perfect boating experience.

Interior

Seating Options

Upgraded fish seats (helm & passenger)

Fish seat arm rests (PR)

Suspension seat (EA)

Shock absorber seat pedestal (EA)

Smooth Moves seat pedestal (EA)

Bed rails

Mechanical

Engine Rigging

Mercury analog/DTS pre-rig 1 eng/1 sta

Smartcraft gauge upgrade

VesselView® 502 upgrade single engine

Prop & PDI

Exterior

Top / Cabin

1/2 hardtop

3/4 hardtop

Full hardtop

Hardtop side-mount rod holders

Hardtop center top-mount rod holders

Stern

Insulated transom fish box

3/4 Platform w/undermount ladder

Welded transom kicker bracket

Welded platform kicker bracket
