LEGENDARY GRIT

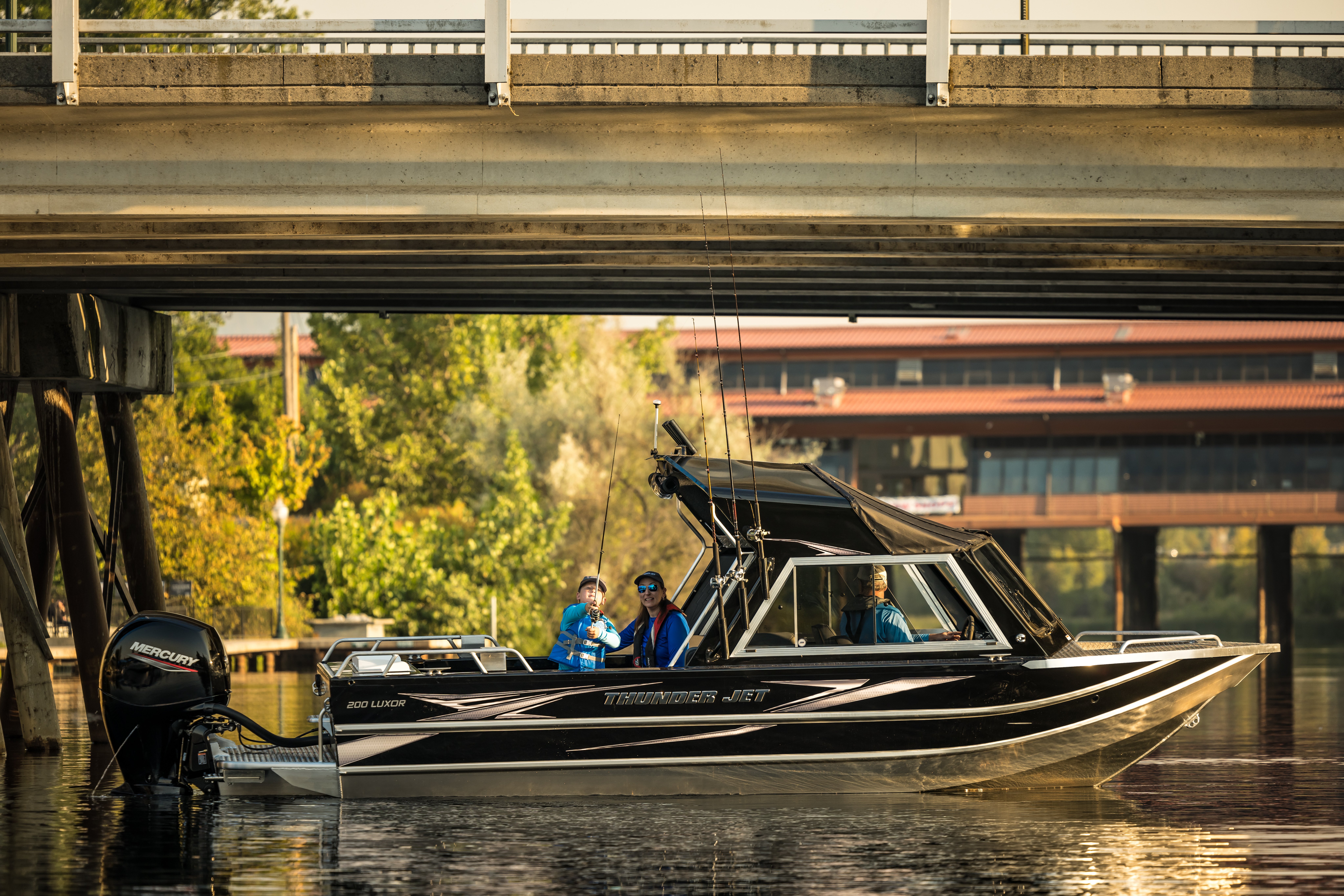

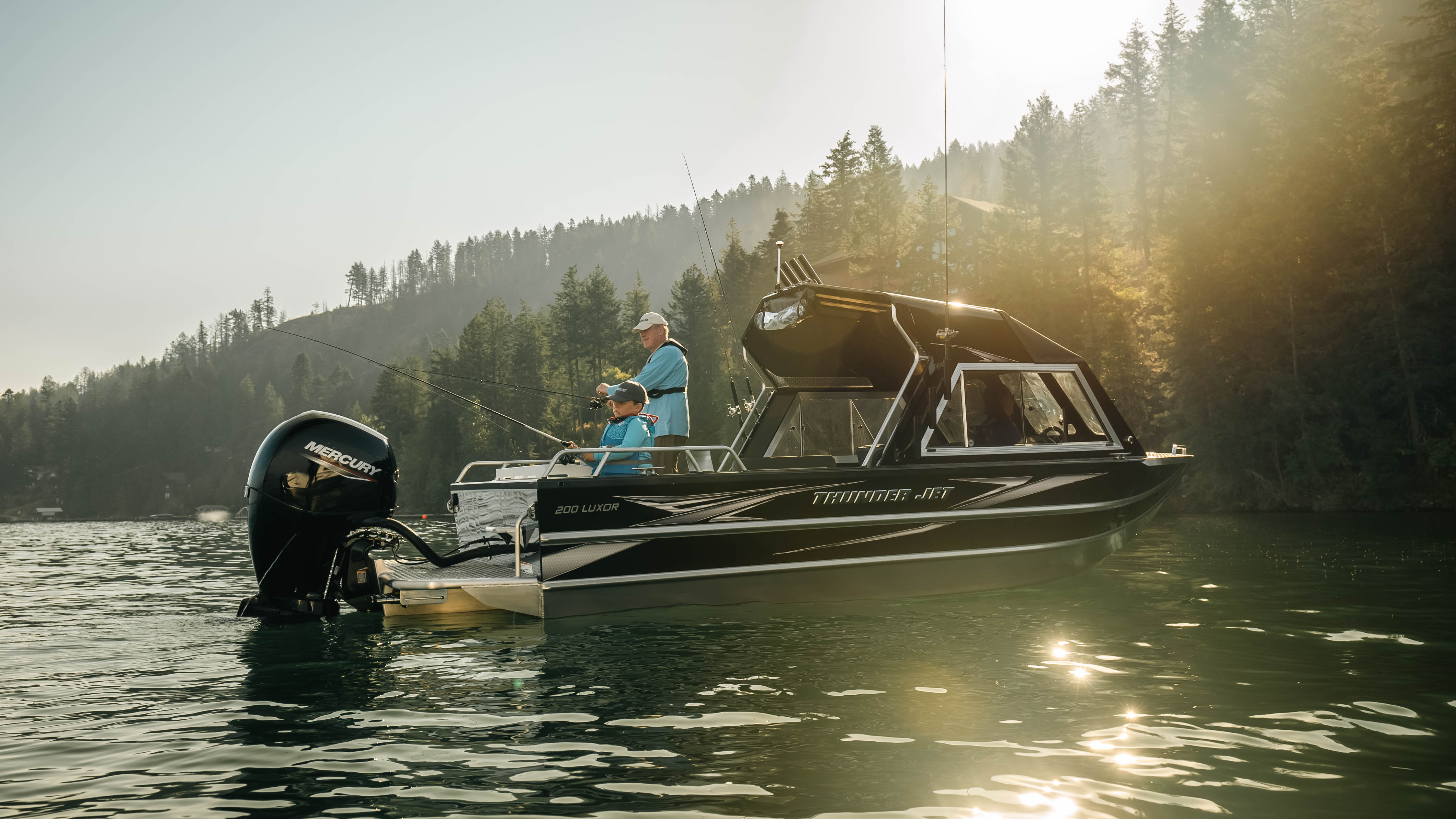

The 200 Luxor outboard heavy-gauge aluminum fishing boat is our most popular model for good reason. It’s equipped with all the right standard fishing and performance features, making it ready to fish in all environments from bow to stern. The welded 5-piece walk-through windshield protects the crew, and the industry-exclusive tri-structure reverse chine hull with delta keel bottom helps you navigate challenging waters with confidence.

FEATURES & SPECS


HIGHLIGHTS

  • Our most popular model
  • Available with 1/2, 3/4, or full hard top
  • Spacious cockpit
  • Built with the Fisherman in mind
  • Extra wide and deep platform
  • Made to tame big water

created by dji camera

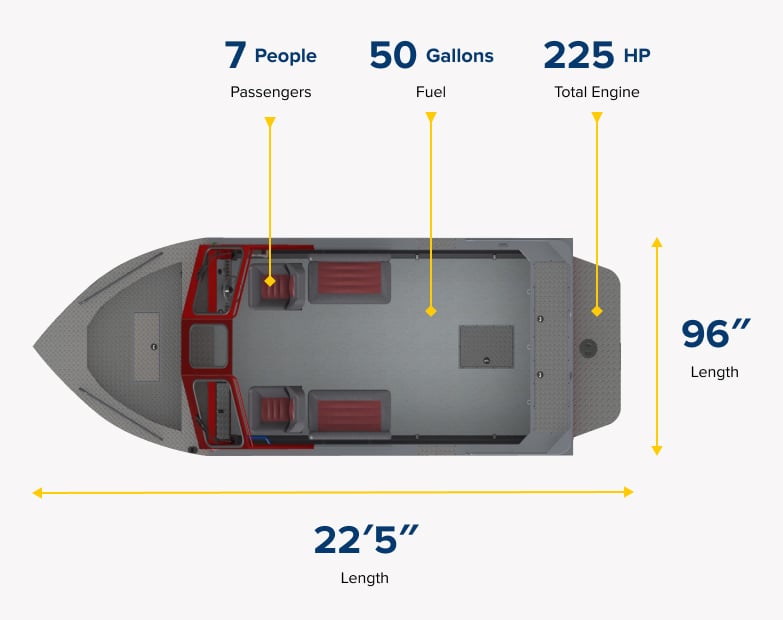

Base Boat Specifications

Length 20'
L.O.A 22'5''
Beam Width 96''
Side Height 35''
Cockpit Depth 28''
Chine Width 80''
Bottom Width 84''
Minimum/Maximum HP 115/225
Max Persons Capacity 7
Fuel Capacity 50 USG
Motor Length 25''
Hull Deadrise All New 16° Progressive

Standard Color & Graphics

1/3 Hull Side Paint

Color Matched Painted Dash & Windshield

Raised Domed Logos

Flat Vinyl Model Designators

Standard Hull Features

One Piece Hull Sides / One Piece Bottom

Full Length Engineered Box Stringers

(4) Full Length Formed-In External Hull Stiffeners

Full Length 5'' Reverse Chine

Fully Welded Heavy-Duty Keel Guard

Welded Thru-Hull Fittings

(5) Welded 8" Cleats

Wide Formed Gunnels

Welded Bow & Transom Eyes

Welded 4'' High Bow Rails

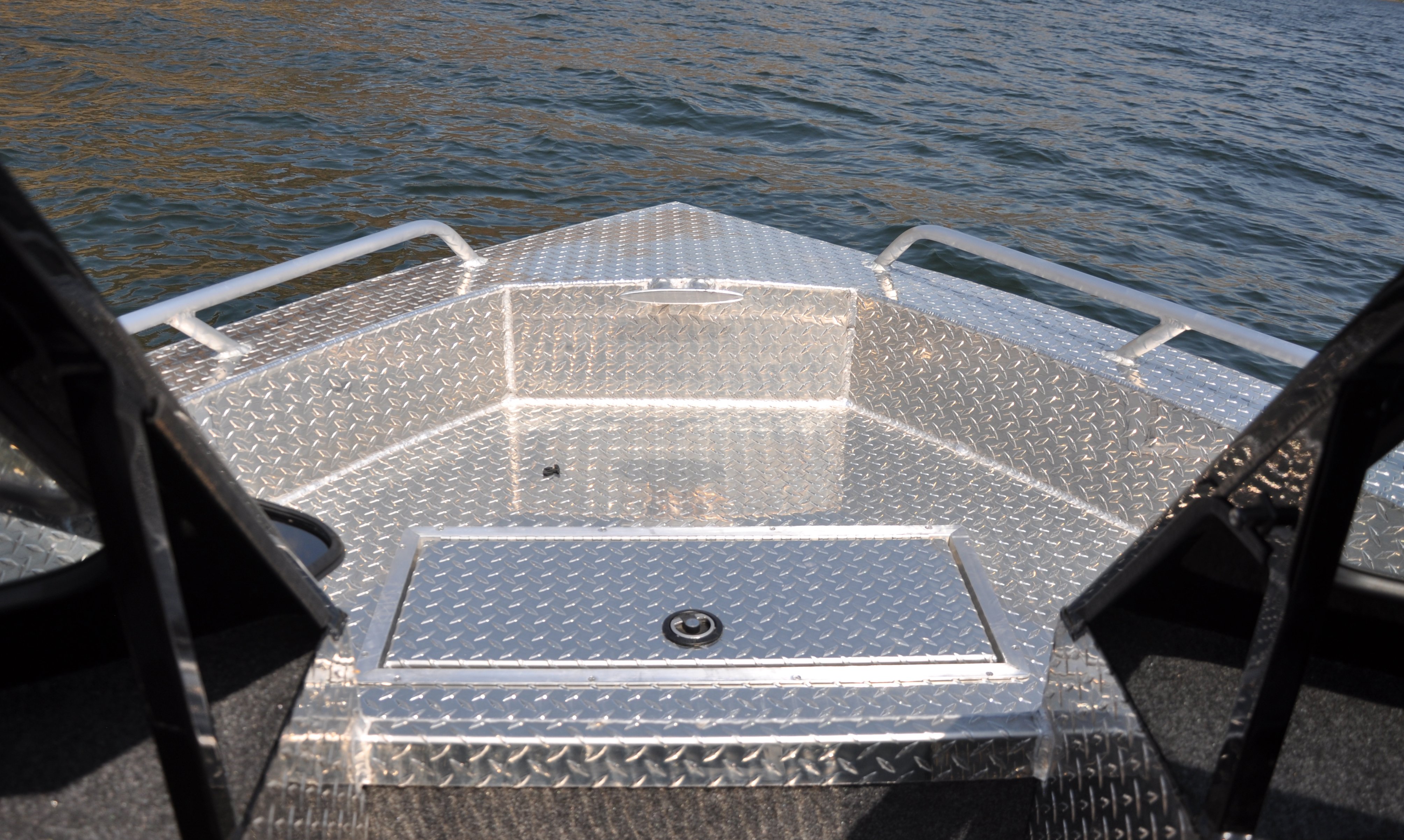

Double Walled Self-Draining Diamond Tread Drop Bow

Large Fully Welded Bow Drains

Welded 6'' High Wrap-Around Stern Rails

Welded Downrigger Mounting Pads

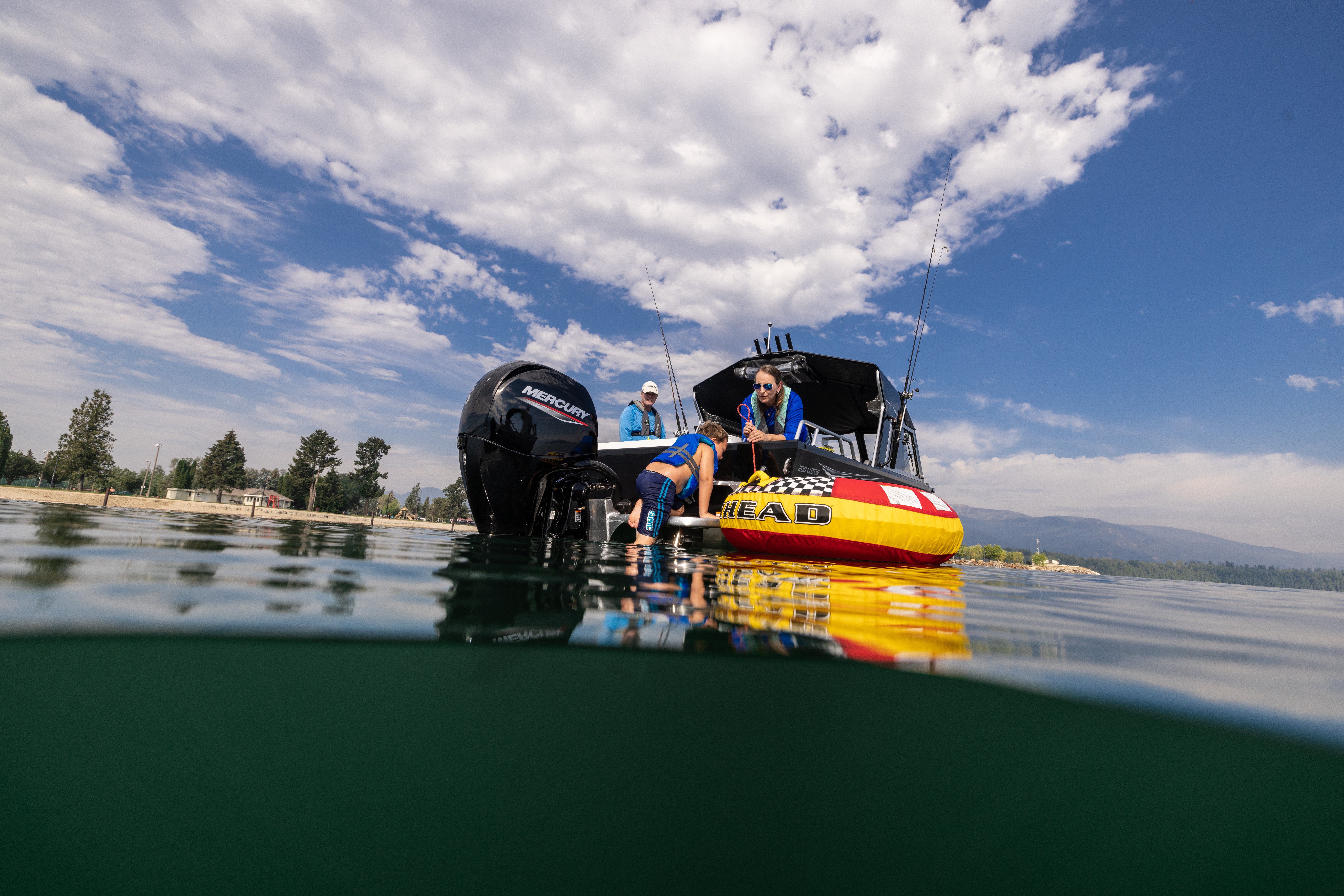

Welded Full Width Transom Platform w/ Undermount Telescoping     Ladder

Welded External Motor Bracket

Rear Fill Gas Tank

Transom Fish Box w/HDPE Lid

Welded 5 Piece Walk-Thru Windshield

Optional Features

Multiple Hard Top Configurations

ERS – Extended Running Surface

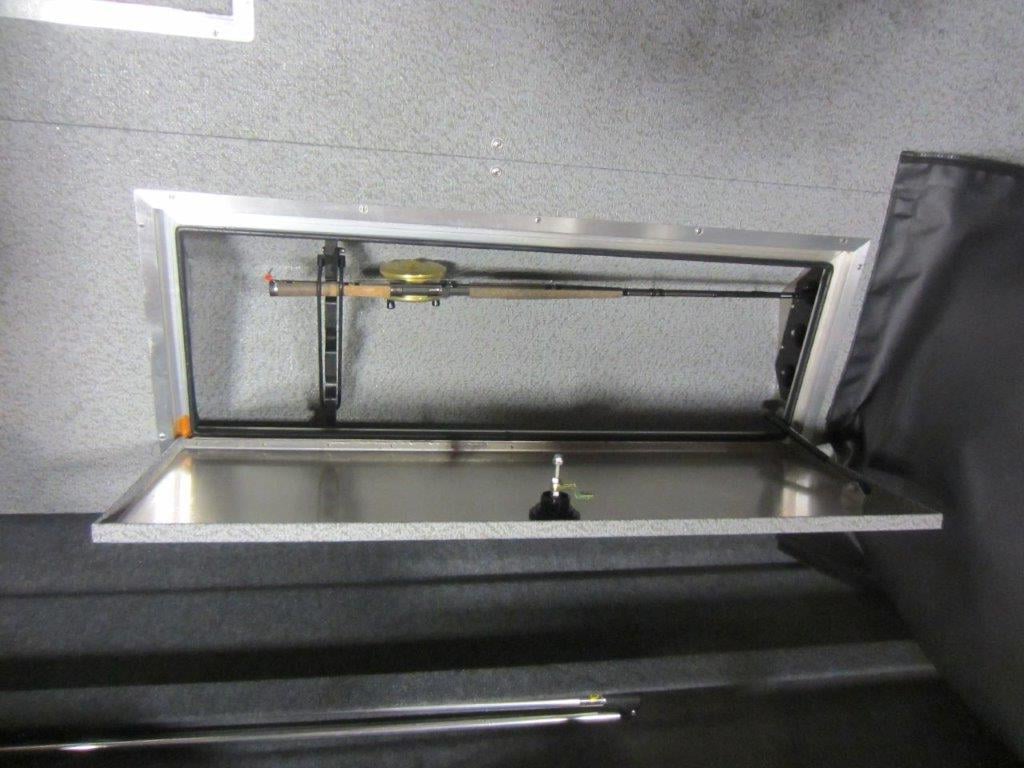

Additional In-Floor Storage

Angler’s Transom Fish Package

Washdown

Ski Pylon

Multiple Paint & Graphics Configurations

See Dealer for Additional Options

Aluminum Thickness

Side 0.125'' / 5052 Aluminum Alloy
Bottom 0.190'' / 5086 Aluminum Alloy
Transom 0.250'' / 5052 Aluminum Alloy

Basic Trailer

EZ Loader 4000 lb. Capacity Galvanized Tandem Axle

Bunk Trailer Includes:

Spring Suspension

14'' Wheels

Carpeted Bunks w/ Slick Bunk Caps

Plastic Fenders w/ Non-Skid Steps

Tongue Jack

Hydraulic Surge Disc Brakes

Basic Power

Mercury 115EXLPT

Note: Does not include prop

Standard Rigging Features

Analog Tach, Fuel, Trim & Hour Meter Dash Instrumentation

Mechanical Throttle/Shift

No Feedback Single Cable Steering System

Premium Switch Panel & Electric Horn

Dual USB Charger

LED Navigation Lights Package

Premium Marine Wiring Harness w/ Water Tight Connections

Electric Bilge Pump w/ Auto Float Switch

Conduit Under Bow Deck for Running Wiring

Pantographic Self-Parking Driver Side Windshield Wiper

Standard Interior Features

(2) Folding Fish Seats on Locking Swivels

Adjustable Driver’s Seat Slider

(2) 36" Storage Box Bench Seats w/ Removable Backrests

Folding Canvas Top w/ Side Curtains, Aft Drop Curtain w/ Roll- up     Center Door, Travel Boot and Heavy-Duty Square Tube Bows

Bulb Seal Along Forward Portions of All Canvas

Locking Glove Box

Sport Steering Wheel

Welded Passenger Grab Rail

Welded High Mount Windshield Grab Rails

Locking Floor Storage Compartment

(3) Locking Interior Transom Access Hatches

Diamond Tread Bow Step w/ Storage Box

Under Dash Storage Trays

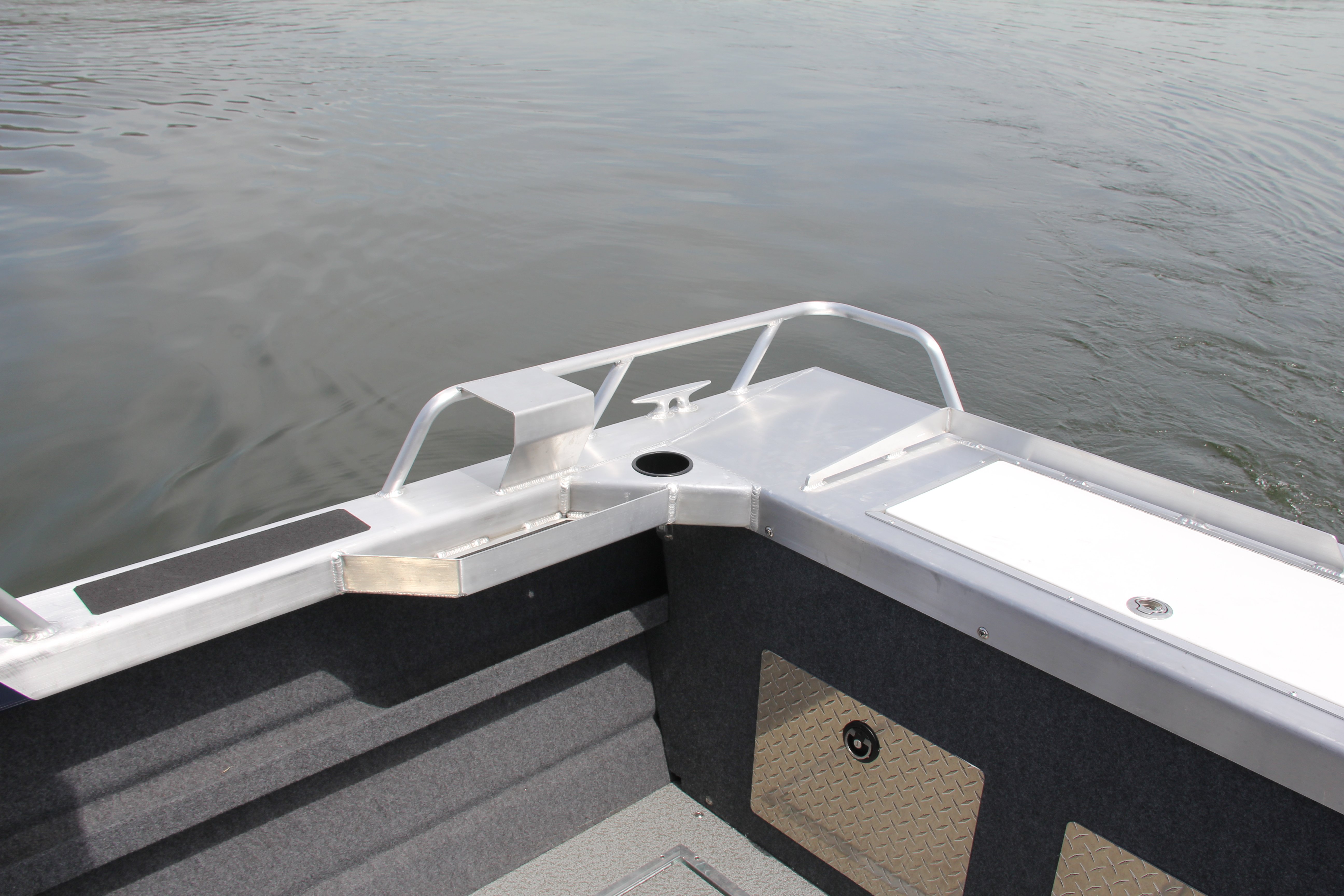

(2) Full Length Welded Side Storage Trays

(8) Cup Holders

Full Marine Carpeted Sound Dampening Side Walls

Premium Marine Vinyl Decking

EXTERIOR & STRUCTURE

Built to conquer the harshest environments & last a lifetime.

FISHING OPTIMIZED INTERIOR

MAKE IT YOUR OWN

Customize your 200 Luxor to be the perfect boating experience.

Interior

Seating Options

Upgraded fish seats (helm & passenger)

Fish seat arm rests (PR)

Suspension seat (EA)

Shock absorber seat pedestal (EA)

Smooth Moves seat pedestal (EA)

Heated seat (EA)

Bow folding seat

Bed rails

Aft storage bench seat cushions

Mechanical

Engine Rigging

Mercury analog/DTS pre-rig 1 eng/1 sta

Smartcraft gauge upgrade

VesselView® 502 upgrade single engine

Suzuki pre-rig analog 1 eng/1 station

Prop & PDI

Exterior

Top / Cabin

1/2 hardtop

3/4 hardtop

Full hardtop

Hardtop vista windows

Gull-wing hatch

Hardtop side-mount rod holders

Hardtop center top-mount rod holders

Stern

Stern rail extensions w/downrigger corner pads

Additional downrigger mounting pads (x2)

Deluxe anglers package

Basic anglers package

Insulated transom fish box

Diamond tread fish box lid

3/4 Platform w/undermount ladder

Welded transom kicker bracket

Welded platform kicker bracket
