350cid Multi Port Fuel Injected GM Vortec w/ Closed Cooling System
American Turbine SD309 Mixed Flow Jet Pump w/ Standard Reverse Bucket

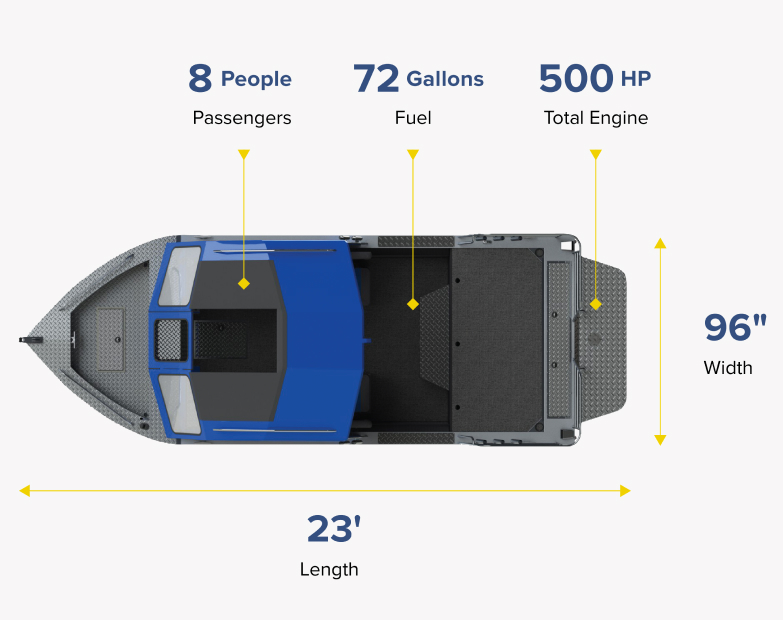

Base Boat Specifications
Length | 21' |
---|---|
L.O.A | 23' |
Beam Width | 96'' |
Side Height | 34'' |
Cockpit Depth | 24'' |
Chine Width | 70'' |
Bottom Width | 72'' |
Max Persons Capacity | 8 |
Fuel Capacity | 72 USG |
Hull Deadrise | 12 Degrees |
Standard Power
350cid Multi Port Fuel Injected GM Vortec w/ Closed Cooling System
American Turbine SD309 Mixed Flow Jet Pump w/ Standard Reverse Bucket
Standard Trailer
EZ Loader 5200 lb. Galvanized Tandem Axle
Bunk Trailer Includes:
Torsion Suspension
14" Wheels
Carpeted Bunks w/ Slick Bunk Caps
Plastic Fenders w/ Non-Skid Steps
Tongue Jack
Hydraulic Surge Disc Brakes
Standard Hull Features
One Piece Hull Sides / One Piece Bottom
Full Length Engineered Box Stringers
(4) Full Length Formed-In External Hull Stiffeners
Exclusive Tri-Structure Full Length Reverse Chine
Reinforced Delta pad
Performance Lifting Strakes
Fully Welded Heavy-Duty Keel Guard
Welded Thru-Hull Fittings
(5) Welded 8" Cleats
Wide Formed Gunnels
Welded Bow & Transom Eyes
Welded 4'' High Bow Rails
High Visibility Cab Forward Cabin Design
Double Walled Self-Draining Diamond Tread Drop Bow
Large Fully Welded Bow Drains
Locking Self-Draining Bow Locker
Welded Full Width Transom Platform w/ Telescoping Ladder & Pump Protector
Welded 6'' High Wrap-Around Stern Rails
Welded Downrigger Mounting Pads
Welded 5 Piece Walk-Thru Windshield
Locking Cockpit Floor Storage Compartment
Standard Rigging Features
Analog Tach, Fuel, Volt, Oil Pressure & Temp Instrumentation
Mechanical Throttle/Shift
Back Mount Single Cable Steering System
Premium Switch Panel & Electric Horn
Dual USB Power Point
LED Navigation Lights Package
Premium Marine Wiring Harness w/ Watertight Connections
Safety Hub Power Distribution Block
Group 24 Heavy Duty Marine Battery w/ Battery Holder
Electric Bilge Pump w/ Auto Float Switch
Motor Compartment Blower
Conduit Under Bow Deck for Running Wiring
Self-Parking Driver Side Windshield Wiper
Aluminum Thickness
Side | 0.125'' / 5052 Aluminum Alloy |
---|---|
Bottom | 0.190'' / 5086 Aluminum Alloy |
Transom | 0.190'' / 5052 Aluminum Alloy |
Standard Interior Features
(2) TJ Seats on Pedestals w/ Locking Swivel
Adjustable Driver’s Seat Slider
(2) 39" Storage Box Bench Seats w/ Removable Backrests
Folding Canvas Top w/ Side Curtains, Aft Drop Curtain w/ Roll-up Center Door, Travel Boot & Heavy-Duty Square Tube Bows
Bulb Seal Along Forward Portions of All Canvas
Locking Glove Box
Sport Steering Wheel
Welded Passenger Grab Rail
Welded High Mount Windshield Grab Rails
Diamond Tread Bow Step w/ Storage
(2) Full Length Welded Side Storage Trays
(8) Cup Holders
Aft Hinged Engine Box w/ Sound Dampening,Ventilation, External Carpet, Motor Box Cushion,& (4) Front Mount Rocket Launcher Rod Holders
Full Marine Carpeted Sound Dampening Side Walls
Premium Marine Vinyl Decking
Standard Color & Graphics
1/3 Hull Side Paint
Color Matched Painted Dash & Windshield
Raised Domed Logos
Flat Vinyl Model Designators
Optional Features
Multiple Engine & Jet Pump Options
Multiple Seat & Suspension/Pedestal Options
103 USG Fuel Tank
Multiple Paint & Graphics Upgrades
See Dealer for Additional Options
Seating Options
Fish seat arm rests (PR)
Suspension seat (EA)
Shock absorber seat pedestal (EA)
Smooth Moves seat pedestal (EA)
Heated seat (EA)
Bow folding seat
Bed rails
Step cushions (SET)
Engine
KEM 5.3L V8 VVT DI 340 hp
KEM Vortec 5.7L V8 320 hp
KEM Vortec 6.0L V8 VVT 360 hp
KEM 6.2L V8 VVT DI 400 hp
KEM 7.4L V8 LSX 510 hp
Top / Cabin
1/2 hardtop
3/4 hardtop
Full hardtop
Gull-wing hatch
Hardtop side-mount rod holders
Hardtop center top-mount rod holders
Hardtop angled top-mount rod holders
Stern
Stern rail extensions w/downrigger corner pads
Additional downrigger mounting pads (x2)
Insulated transom fish box
Diamond tread fish box lid
Welded transom kicker bracket
Welded platform kicker bracket
Loose platform kicker bracket
Welded pump guard
